Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening

Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,100.00 - $28,750.00/sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2023 Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Type: Gravity Separator Voltage: 380V/415V/440V( As Client Request)
Dimension(L*W*H): As Per Different Model Weight: 2200 KG, 6.5-10T
Warranty: 1 Year Product Name: Wheeled Mobile Trommel Screen Can Neatly Screen Compost, Soil, Sand,
Model: Rotary Trommel Screen Power: 5.5KW, 7.5KW, 11KW
Dimension: Depends On Model Application: Compost, Soil, Slag, Gravel, Wood Chips
Capacity: 30-150 Tons Per Hour Feeding Size: Less Than 300mm
Discharge Size: Less Than 6mm Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Wheeled mobile trommel screen can neatly screen compost, soil, sand, slag, gravel, wood chips

Product Description



Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 0



This wheeled mobile trommel screen systems’ high flexibility and the comprehensive range of products, from the smallest screening machine with less than 1.8 tons to the largest with up to 20 tons, enable the company to serve customers from the gardening, landscaping, recycling, timber, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine are not only used in the processing of earth materials, but also in more specific fields of application, such as the extraction of recyclable fractions of plastics, foils and wood chips and in the processing of compost, milled material, building rubble, stones, gravel, as well as glass or even in the recycling of sandbags.

This wheeled mobile machine can neatly screen e.g. compost, soil, sand, slag, gravel, gravel, wood chips, refuse, stones as well as mineral waste from 2 – 80 mm. The material is filled into the belt feeder, which can hold up to 5.5 m³. The material is then fed into the double tromel. It consists of a steel, robust inner cage and an outer cage that can be equipped with wire screens of various mesh sizes. What the inner cage does not retain is captured by the outer cage, the fine fraction is discharged via a conveyor belt. Once a mountain of work has been eliminated, the can be towed to the next location.





Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 1

Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 2



technical parameters

Model

Trommeldiameter
(mm)

Trommel length
(mm)

Capacity
(m3/h)

motor power

(KW)

Weight
(Kg)

Dimensions
(L*W*H)

MTS0818

800

1800

≤15

2.4

650

3.15*1.1*1.65

MTS1022

1000

2200

≤30

8.2

2750

4.3*1.9*2.45

MTS1230

1200

3000

≤60

10.6

3210

5.4*2.1*2.7

MTS1550

1500

5000

≤90

20

7900

9.4*2.2*2.9




Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 3

The trommel screen is a heavy-duty, mobile drum screen machine built for small to medium-sized topsoil and compost operations.





» Horizontal drum delivers consistent output.



» Material rides on screening surface for extremely effective separation.

 Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 4Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 5

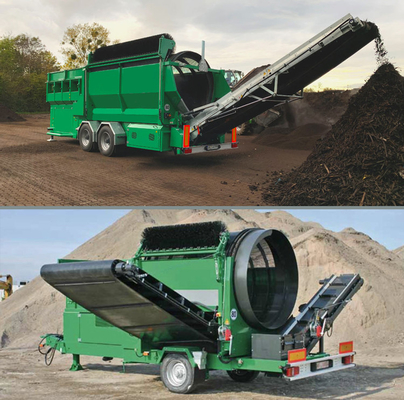

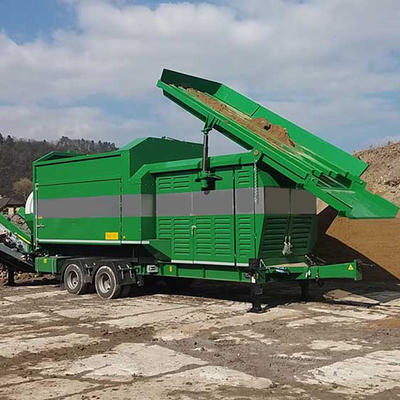

Case

 Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 6Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 7

Customer

Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 8

Company Information

Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 9Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 10Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 11

Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 12

Contact Us

 Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 13





Wheeled Mobile Trommel Screen The Ultimate Solution for Composting and Soil Screening 14
