Product Details:

Place of Origin: Henan, China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $13,100.00/sets 1-1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Building Material Shops, Manufacturing Plant, Energy & Mining Showroom Location: United States, France, Germany, Saudi Arabia, India, Spain, Kenya, Chile, Colombia, None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Type: Circular Voltage: 380v/415v/440v
Dimension(L*W*H): 5613*1940*2390mm Weight: 1790 KG
Warranty: 1 Year Product Name: Rotary Type Biomass Wood Chips Trommel Screen Firewood Garbage Trommel
Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel Power: 3-45KW
Application: Waste, Firewood, Mulch, Organics, Bark, MSW, Building Waste Dimension: 1200mm
Installation: Supply Manual To Guide User Capacity: 60m3/h
Feeding Size: As Request Discharge Size: As Request
Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Product Description

The firewood trommel screen is mainly composed of a cylinder and a transmission part, which is inclined to the ground as a whole. The screen drum rotates at a certain speed through the deceleration system. Materials are screened from top to bottom through the screen drum. Fine materials are discharged from the bottom of the screen drum, and coarse materials are discharged from the tail of the screen drum.

Features

Simple structure, large workload, durable, low production cost, convenient maintenance and many other advantages, processed sand, stone and other mixing materials automatic separation, is an ideal material for building, highway, cement building preform and other manufacturers.

Organics 1790 KG Customization Basic Trommel Screen Firewood Tumbler Wood Cleaner 0

Application:

It is applicable to firewood, sawdust, wood chaff, shavings and other similar materials. The impurities in firewood can be screened out to obtain clean firewood for use or sale.


The firewood trommel screen is made up of five main parts: central drum, rack, funnel, reducer, motor and so on. Is a more traditional screening equipment. The trommel screen simple structure, very smooth operation, can add dust cover. After adding dust shield, it has good sealing property, low noise and quick screen changing. The gravel trommel has the advantages of fine classification, large separation ratio, high yield, accurate separation and low failure rate. The gravel trommel machine is especially suitable for screening and grading use in stone plant.


High production capacity, fine screening. The feeding conveyor is equipped to make feeding more convenient. The tail discharge conveyor is optional, and different models can be selected according to needs.

Technical Prameter
Model
Capacity
(t/h)
Power
(kw)
Diameter
(mm)
Length
(mm)
Discharge
(mm)
Input
(mm)
Dimension
(mm)

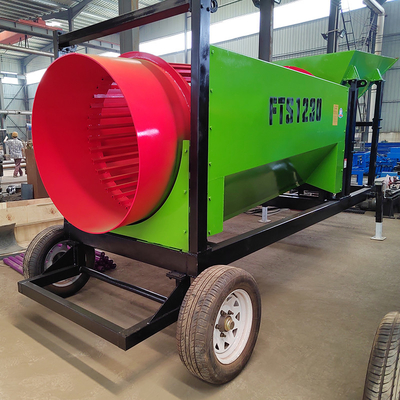

FTS1230
60
3.0
1200
3000
0-100
≤300
5613*1940*2390

Design and produce gravel trommel based on customer special requirement
