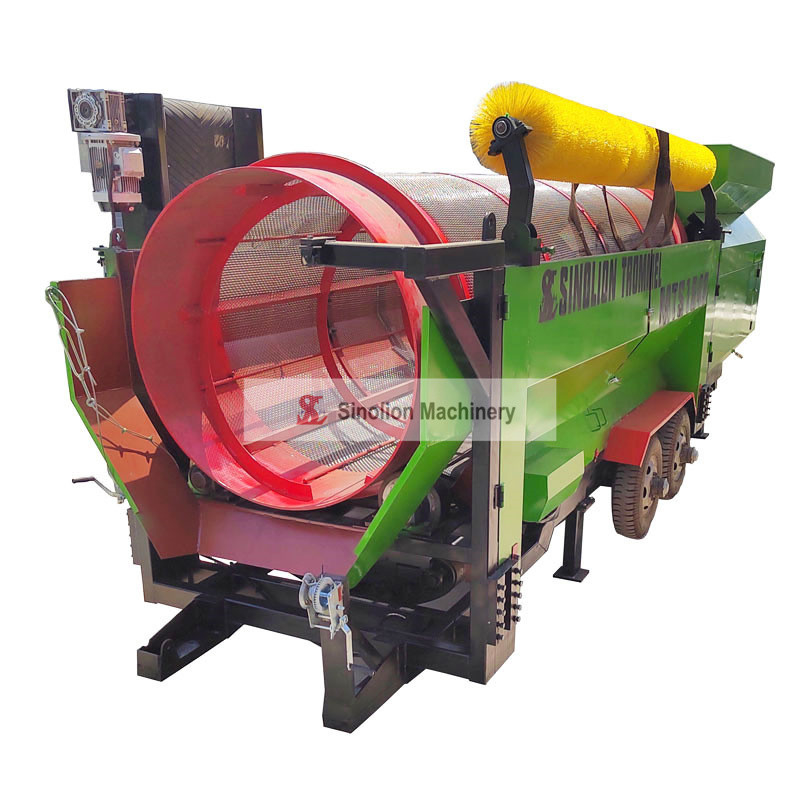

Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry

Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry

Product Details:

Place of Origin: China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $6,000.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Building Material Shops, Machinery Repair Shops, Energy & Mining Showroom Location: Canada, United Kingdom, United States, France, Germany, Brazil, Mexico, Russia, Sri Lanka, Australia
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Gearbox, Motor Condition: New
Type: Circular Application: Food Processing
Voltage: 380v/415v/440v Dimension(L*W*H): Depends On Processing Trommel Screen
Weight: KG Warranty: 1 Year
Product Name: Screening Sand And Screen Trommels Caol Trommel Screen For Sale Keyword: Screen Trommels Caol Trommel Screen
Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel Power: 3-45KW
Dimension: According To Capacity Installation: Supply Manual To Guide User
Capacity: 50-500 Tons Per Hour Feeding Size: Less Than 300mm
Discharge Size: As Request Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Factory price coal screening machine sand glass trommel screen coal trommel screen for sale

Product Description

Municipal solid waste, construction waste, stone, compost, wood chips, sawdust, soil, coal, river sand, refractory materials, chemical, etc.



Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 0





Shaftless trommel screen working principle:
Due to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. GTS series shaftless trommel screen machine mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum.





Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 1



Working Principle

1. lowering initial investment cost (comparative price)

2. saving operational cost (outstanding durability and simple mechanical structure)

3. reducing any additional cost in the future (high productivity & mobility)

4. GTS series can precisely select gold dust in highest yield rate of 98%.

5. High gold dust gathering capability by long-time and non-stop operation



technical parameters



Model Capacity (t/h) Motor (kw) Drum size (mm) Feed Size (mm) Overall size (mm) Weight (KG)
GTS-1015 5-20 3 1000×1500 less than 200 mm 2600×1400×1700 2200
GTS-1020 10-30 4 1000×2000 less than 200 mm 3400×1400×2200 2800
GTS-1225 20-80 5.5 1200×2500 less than 200 mm 4200×1500×2680 4200
GTS-1530 30-100 7.5 1500×3000 less than 200 mm 4500×1900×2820 5100
GTS-1545 50-120 11 1500×4500 less than 200 mm 6000×1900×3080 6000
GTS-1848 80-150 15 1800×4800 less than 200 mm 6500×2350×4000 7500
GTS-2055 120-250 22 2000×5500 less than 200 mm 7500×2350×4800 9600
GTS-2265 200-350 30 2200×6500 less than 200 mm 8500×2750×5000 12800



Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 2





Packaging & Shipping

Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 3



Case

 Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 4Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 5Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 6

Customer

Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 7

Company Information

Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 8Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 9Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 10Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 11Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 12Coal Trommel Screen with Capacity of 50-500 Tons per Hour in Food Processing Industry 13
