Classifying Rotary Drum Screen Machine for Separating River Sand Stone Particles
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $3,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Rotary | Application: | Compost, Soil, Sawdust, Wood Chips, Rock, Soil, River Stone, Gravel, Pebble |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG, 2.2T-18T | Warranty: | 2 Years |
| Product Name: | Stone Classifying Rotary Drum Screen Machine/drum Screening Machine | Keyword: | Drum Screening Machine |
| Power: | 5.5KW, 7.5KW, 11KW | Dimension: | Depends On Model |
| Installation: | Supply Manual To Guide User | Capacity: | 30-150 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm |
Product Description

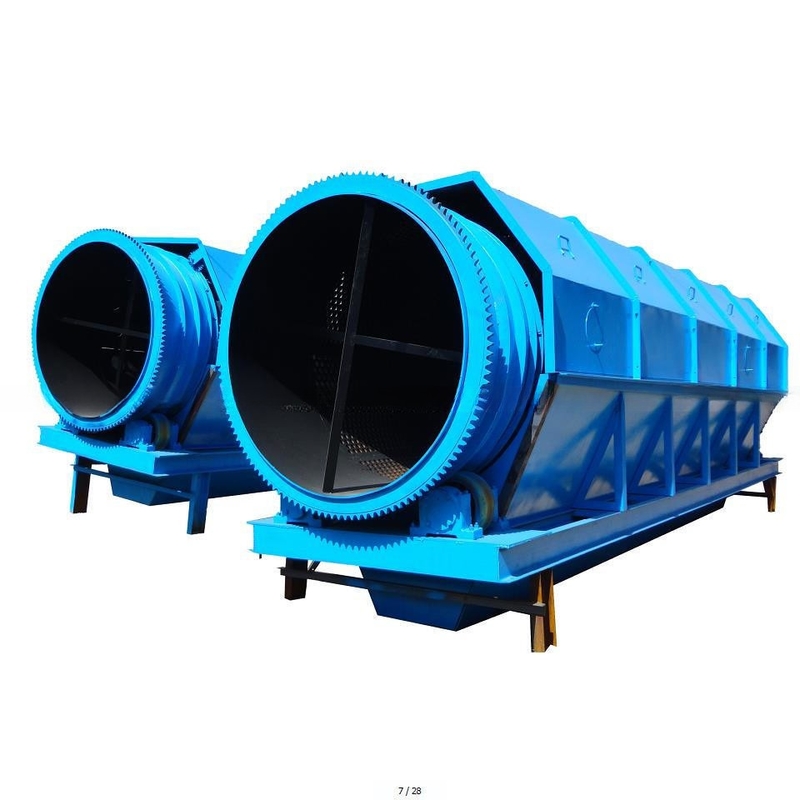

River sand stone classifying rotary drum screen machine/drum screening machine
Recycling construction waste screen is a special screening equipment developed by our company. It overcomes the problem of screen mesh sticking when various vibrating screens screen wet materials, and improves the output and reliability of the screening system. Recycling construction waste screen is suitable for screening materials of various properties, as well as coal, coal gangue, coke raw and hydrated lime and other wet and easy to block materials, the screen under the product is 100mm large, the middle 10-50mm, fine up to 3mm, the product is well received by the majority of users.
Advantages:
1) It is multi-function highly economically .
2) The screen features various filters for different heavy duty drums that ensure complete separation of fine materials.
3) The design has a end user flexibility that allows for screen replacements depending on mesh sizes
4) Multiple layers of screen to enhance the sifting process.
5) Trommel screen has high efficiency and a big capacity for different volumes of materials
1.Using the principle of rolling conveying, small friction coefficient, light wear, screen hole is not easy to plug.
2. The roller support adopts the whole through shaft structure, running stably, no vibration and low noise.
3. The internal roller screen mesh accessories adopt separate design, simple structure, quick and convenient replacement and maintenance.
4, the cylinder body adopts the effective fully sealed structure, no dust, no pollution.
5. The whole machine has high reliability, less one-time investment, low energy consumption, large output and obvious energy-saving effect.
6, According to customer requirements using different mesh material, mesh size, screening efficiency is high, long service life.
| Model | Capacity | Motor | Drum size | feed size | Overall size | Weight |
| GTS-1015 | 5 -20 | 3 | 1000x1500 | less than 200 mm | 2600x1400x1700 | 2200 |
| GTS-1020 | 10 -30 | 4 | 1000x2000 | less than 200 mm | 3400x1400x2200 | 2800 |
| GTS-1225 | 20-80 | 5.5 | 1200x2500 | less than 300 mm | 4200x1500x2680 | 4200 |
| GTS-1530 | 30-100 | 7.5 | 1500x3000 | less than 300 mm | 4500x1900x2820 | 5100 |
| GTS-1545 | 50-120 | 11 | 1500x4500 | less than 400 mm | 6000x1900x3080 | 6000 |
| GTS-1848 | 80-150 | 15 | 1800x4800 | less than 400 mm | 6500x2350x4000 | 7500 |
| GTS-2055 | 120-250 | 22 | 2000x5500 | less than 400 mm | 7500x2550x4800 | 9600 |
| GTS-2265 | 200-350 | 30 | 2200x6500 | less than 400 mm | 8500x2750x5000 | 12800 |
Note: Above capacity is for reference, different materials with different capacity. Please contact Sinolion for more information.
if you want to get the briquette machine , you need use our briquette machine below :
if you need more photos and video , please click here to contact me :
if you want to get the briquette machine , you need use our briquette machine below :
if you need more photos and video , please click here to contact me :
if you want to get the briquette machine , you need use our briquette machine below :
if you need more photos and video , please click here to contact me :
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
