Product Details:

Place of Origin: China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,100.00 - $28,750.00/sets
Packaging Details: 20GP container or 40GP container<br>Equipment is packed with plastic wrap or steel box, depends on machine weight.<br>Motor is packed with steel box or wooden box. <br>Control panel is packed with carton box.<br>Loading container in factory.
Supply Ability: 50 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Type: Trommel Screener Application: Sawdust Wood Chips Compost, Coal, Coke, Mulch, Organics, Bark, MSW, Building Waste
Voltage: As Request Dimension(L*W*H): Depends On Model
Weight: KG Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power: 3-45kw
Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel Installation: Supply Manual To Guide User
Capacity: 50-500t/h Feeding Size: Less Than 300mm
Discharge Size: As Request Color: Yellow, White, Red, Blue, Gray( Or As Client Request)
Port: Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

Small Cheap Firewood Woodchips Trommel Screener Machine For Sale

Product Description



Customizable Discharge Size Small Woodchips Trommel Screener Machine for Screening 0

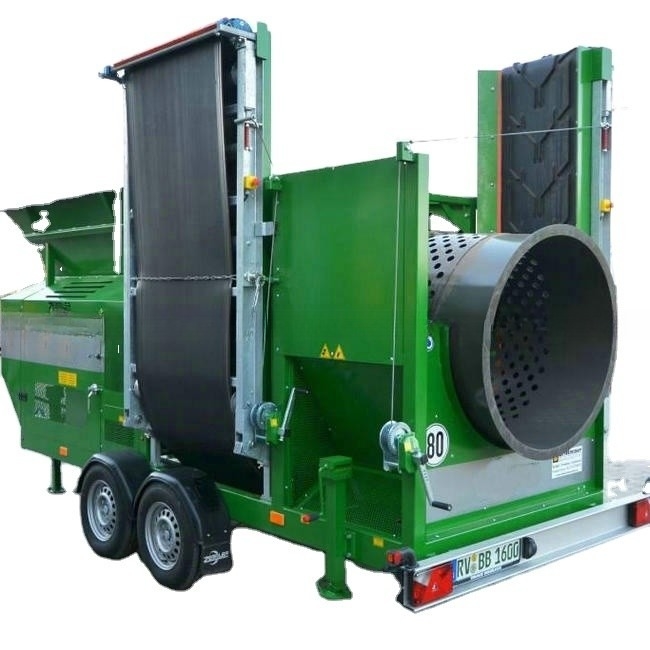

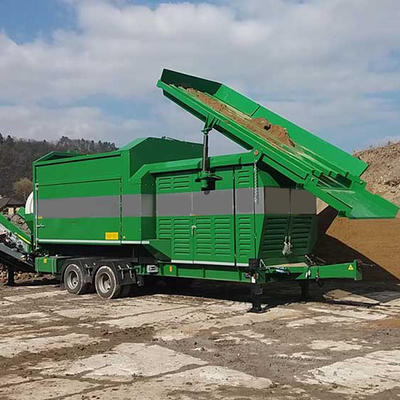

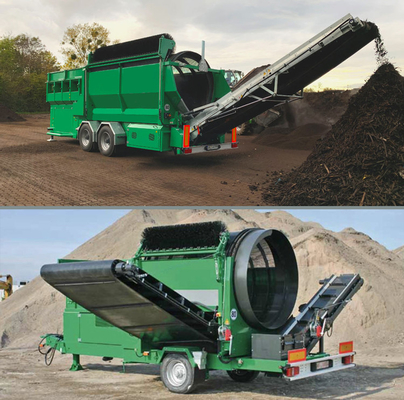

This wheeled mobile trommel screen systems’ high flexibility and the comprehensive range of products, from the smallest screening machine with less than 1.8 tons to the largest with up to 20 tons, enable the company to serve customers from the gardening, landscaping, recycling, timber, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine are not only used in the processing of earth materials, but also in more specific fields of application, such as the extraction of recyclable fractions of plastics, foils and wood chips and in the processing of compost, milled material, building rubble, stones, gravel, as well as glass or even in the recycling of sandbags.

This wheeled mobile machine can neatly screen e.g. compost, soil, sand, slag, gravel,wood chips, refuse, stones as well as mineral waste from 2 – 80 mm. The material is filled into the belt feeder, which can hold up to 5.5 m³. The material is then fed into the double tromel. It consists of a steel, robust inner cage and an outer cage that can be equipped with wire screens of various mesh sizes. What the inner cage does not retain is captured by the outer cage, the fine fraction is discharged via a conveyor belt. Once a mountain of work has been eliminated, the can be towed to the next location.





Customizable Discharge Size Small Woodchips Trommel Screener Machine for Screening 1

Customizable Discharge Size Small Woodchips Trommel Screener Machine for Screening 2



technical parameters




Model

Trommel diameter
(mm)

Trommel length
(mm)

Capacity
(m3/h)

Weight
(Kg)

Dimensions
(L*W*H)

MTS0818

800

1800

≤15

650

3.15*1.1*1.65

MTS1022

1000

2200

≤30

2750

4.3*1.9*2.45

MTS1230

1200

3000

≤60

3210

5.4*2.1*2.7

MTS1550

1500

5000

≤90

7900

9.4*2.2*2.9

Customizable Discharge Size Small Woodchips Trommel Screener Machine for Screening 3

The trommel screen is a heavy-duty, mobile drum screen machine built for small to medium-sized topsoil and compost operations.





» Horizontal drum delivers consistent output.



» Material rides on screening surface for extremely effective separation.



 Customizable Discharge Size Small Woodchips Trommel Screener Machine for Screening 4Customizable Discharge Size Small Woodchips Trommel Screener Machine for Screening 5

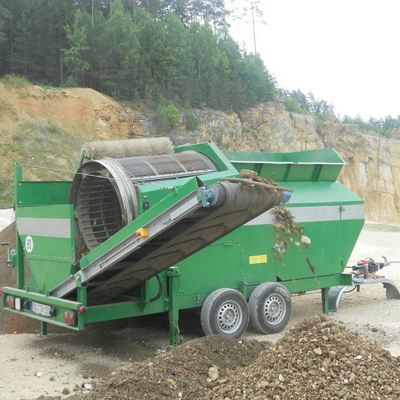

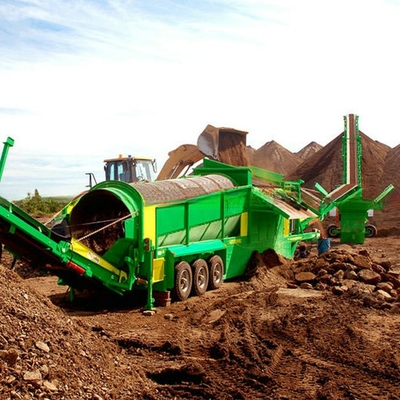

Case
