Roller forming methods divided into two types whole forging and casting, when casting, the roller has low-density and structure is rough but economical, Forging is shaping depending on air beating gravity, thus very substantially increased roller density, due to high density, it has effectively improved the wear resistance and extended service life.
High Pressure Coal Powder Ball Briquetting Press Roller Type Charcoal Briquette Machines
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Sinolion briquette machine |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $2,000.00/sets >=1 sets |
Detail Information |
|||
Type: | Briquette Machines, High Pressure, Hydraulic Or Inclined Iron Pressure System | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Home Use, Energy & Mining |
---|---|---|---|
Weight (KG): | 1260 | Showroom Location: | Canada, United States, Mexico, Russia, Kenya, Australia |
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
Core Components: | Bearing, Gearbox, Motor | Condition: | New |
Production Capacity: | 1-30t/h Briquette Machine | Motor Type: | AC Motor |
Dimension(L*W*H): | Based On Different Briquette Machine | Warranty: | 1 Year |
Briquette Shape: | Oval, Pillow And Oblate | Roller Diameter: | 290-1000mm |
Roller Material: | 65Mn/9Cr2Mo | Applicable Material: | Sludge Quartz Slag Coke Fluorite Powder Oxide Iron DRI Fines Aluminum |
Material Size: | Less Than 5mm | Material Moisture: | Less Than 18% |
Spare Parts: | Supply Whole Life Of Briquette Machine | Factory Visit: | Any Time |
Name: | Roller Type Coal Charcoal Briquette Machines Price List |
Product Description
Roller type briquetting press
Sinolion briquetting press including common roller type briquette machine and dry powder briquette machine.
Common roller type briquetting press also named ball press machine, briquetting machine, briquette making machine , briquette press machine etc, it can used to press various powders such as coal powder, iron powder, coking coal, slag, oxidation iron sheet, carbon dust, gypsum, tailings, sludge, kaolin, active carbon and burnt powder, etc.
Common roller type briquette machine also applies on the industries such as refractory material, electric power plant, metallurgy, chemical industry, energy, transportation and heating, etc.



briquetting press main features:
1. High-Density roller briquette machine;
2. Advanced technology roller briquette machine;
3. High briquetting ratio
4. Double rollers briquette machine
5. High pressure mine roller briquette machine
6. Durable&energy-saving roller briquette machine
7. Different design according to your place.

briquetting press technical parameters

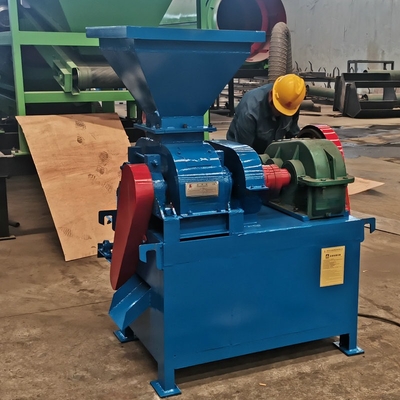

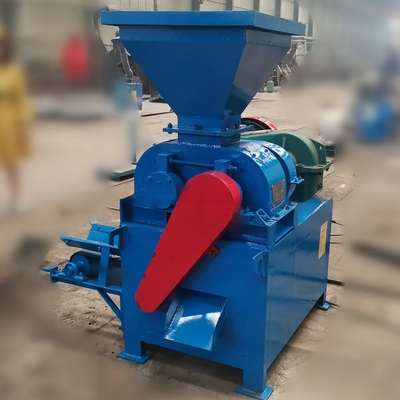

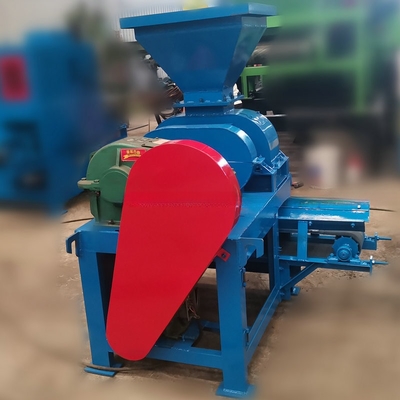

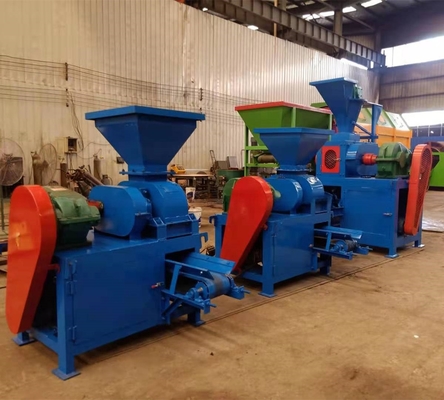

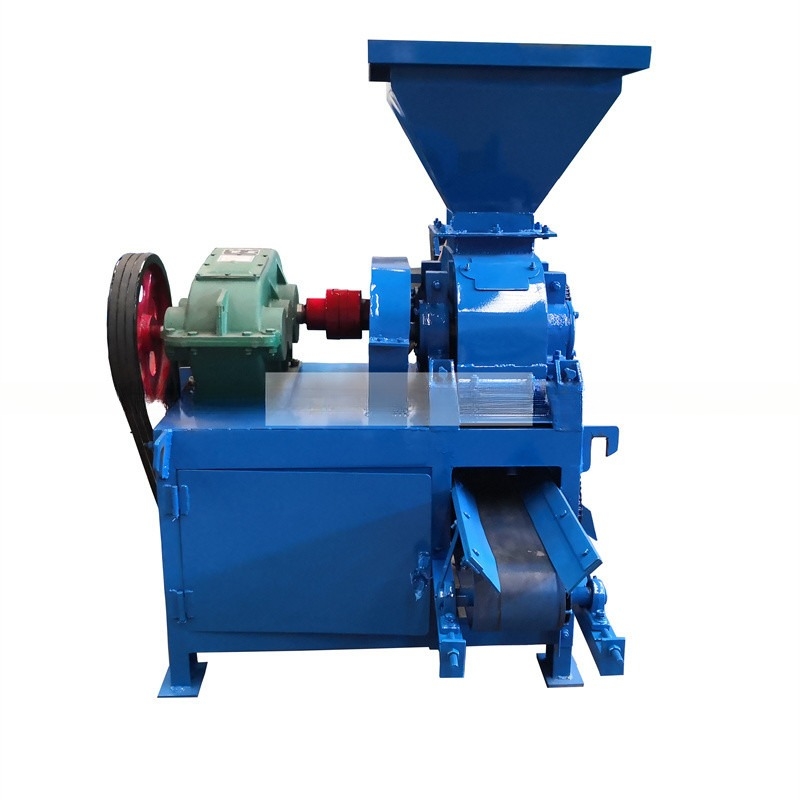

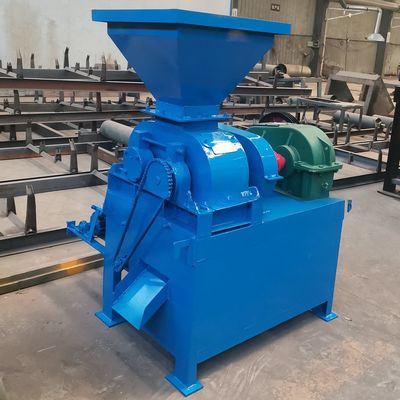

briquetting press working pictures

Press roller of briquette machine


Briquette Machine roller making
Roller material: 65Mn/9Cr2Mo /High chromium alloy
We have different roller material to choose when briquetting different materail.
The diameter of roller based on briquette machine model.
The briquette shape can be oval, oblate and pillow shape etc.
The size of final briquette between 20-75mm
Briquettes information
The final briquette out from our briquette machine can be oblate, pillow and oval shape.
The briquette size between 20-75mm.
Please confirm briquette shape and size before briquette machine making

Oblate briquette

Pillow shape briquette

Oval shape briquette
Briquette pressure test picture

The briquette machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the briquette roll mode,with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contac tpoint, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished briquette.
When use dry powder briquette machine, the material will be pre-pressured before enter press roller.

Dry powder briquette machine roller drawing Common briquette machine drawing
Standard export packing, Spare parts in wooden case, big machines loaded in container, large machines use nude packing, cover with plastic cloth. We export through Qingdao Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.

Q: How do I choose a suitable hydraulic briquette machine for my project?
A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the shape of final briquettes you required, also tell the output per hour you required
Q: What is the binder in process?
A: It is depend on the properties of your raw materials, and also usage of briquettes. We have some formula of binders for some of raw materials, we would like to share them to our customers.
Q: How about the hardness of briquettes?
A: Our hydraulic briquette machine adpot 9Cr2 forging steel to make rollers, with a hydraulic station, the whole pressure is very high, the briquettes will not broken when it drop up from 5 meters high.
Q: After ordered a hydraulic briquette machine, how do we slove the equipment installing?
A: For a small singlehydraulic briquette machine, we offer you user manual, customer will install and commissioning as operating introduction; For a complete briquette machine production line, we will send our engineer to your workplace to help you install and commissioning untill machines work normally.
