Double Screw Silica Sand Gravel Washing Machines with Stainless Steel Spiral Blade
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Motor Type: | AC Motor | Capacity(t/h): | 5-100TPH |
| Dimension(L*W*H): | Based On Different Model | Weight: | 2.7 KG |
| Warranty: | 2 Years | Product Name: | Double Screw Silica Sand Gravel Washing Machines Price |
| Application: | Gravel, Stone, Sand, Mica, Pebble, Rock | Spiral Blade Material: | Steel, Stianless Steel(or As Client Request) |
| Spare Parts: | Spiral Blade | Flow Chart And Foundation: | Supply By Seller(or As Client Request) |
| After Sale Service: | The Whole Using Life | Motor Brand: | Chinese Famous Brand(or As Client Request) |
| Related Product: | Belt Conveyor, Water Pump, Hopper | Test & Installation: | Professional Engineer Supplies Any Help |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description

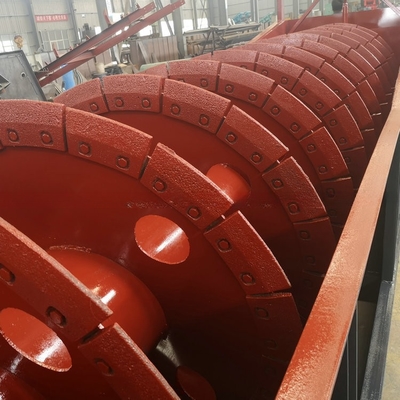

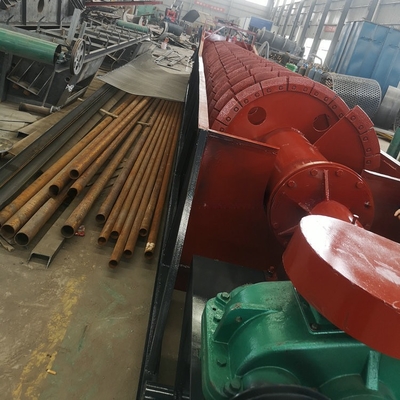

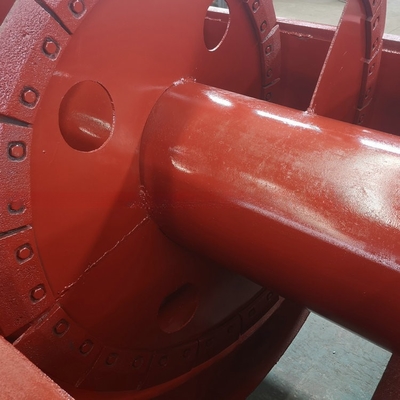

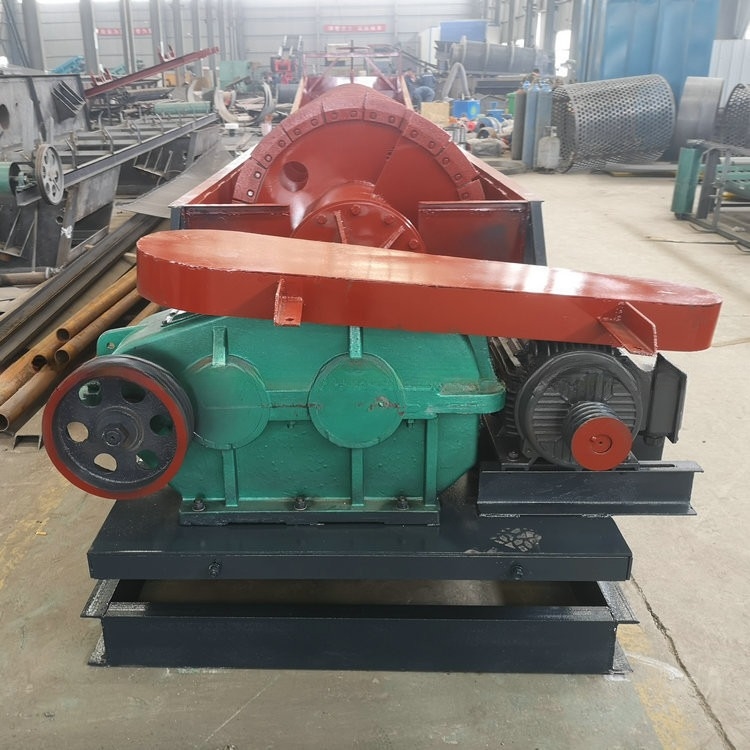

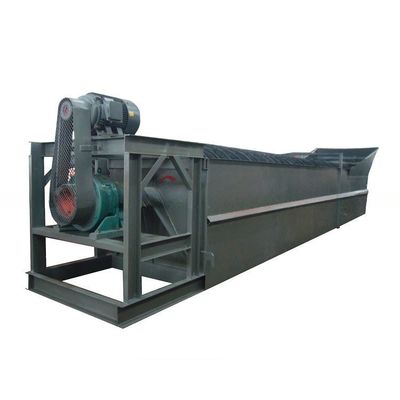

Double screw silica sand gravel washing machines price
Introduction of screw sand washing machine:
Spiral sand washer machine is used for separating and cleaning soil in sand stone powder, with sealing structure, reliable transmission device. It is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station, etc.
Characteristics and advantages of screw sand washing machine:
FG series sand washer has the characteristics of reasonable structure, convenient maintenance, high output, low power consumption, and high degree of cleanness.
Working Principle of spiral sand washing machine:
1. Screw sand washing machine operates based on the different particles of different grain size and density have different sedimentation speed.
5. The spiral slice agitates uniformly to filter the water and remove impurities to enhance transportation efficiency.
Screw sand washing machine technical parameters:
| Model | Spiral diameter (mm) | Length of tank (mm) | Rotation speed (r/min) | Capacity (t/h) | Power (KW) |
| XS-500x4000 | 500 | 4000 | 18 | 3-10 | 5.5 |
| XS-750x4500 | 750 | 4500 | 18 | 5-20 | 7.5 |
| XS-1000x5000 | 1000 | 5000 | 18 | 10-30 | 11 |
| XS-1200x5400 | 1200 | 5400 | 16 | 30-50 | 15 |
| XS-1500x5400 | 1500 | 5400 | 16 | 50-100 | 22 |
| XS-1500x7200 | 1500 | 7200 | 16 | 80-120 | 30 |
| XS-1800x6400 | 1800 | 6400 | 14 | 100-150 | 45 |
| XS-2000x6000 | 2000 | 6000 | 14 | 120-160 | 45 |
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
