Best Sale 1-30t/h Mini Coal Ash Briquette Machine with Long Service Life from Alibaba
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion briquette machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $3,500.00/sets 1-1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Manufacturing Plant, Energy & Mining |
|---|---|---|---|
| Weight (KG): | 700 | Showroom Location: | Canada, United States, Pakistan, Mexico, Russia, Thailand |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor | Condition: | New |
| Production Capacity: | 1-30t/h Briquette Machine | Motor Type: | AC Motor |
| Dimension(L*W*H): | Based On Different Briquette Machine | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Briquette Shape: | Oval, Pillow And Oblate |
| Roller Diameter: | 290-1000mm | Roller Material: | 65Mn/9Cr2Mo |
| Applicable Material: | Coal, Charcoal, Microsilica, Coke, Iron, Fluorite Powder Etc | Material Size: | Less Then 5mm |
| Material Moisture: | Less Then 18% | Spare Parts: | Supply Whole Life Of Briquette Machine |
| Service Life: | Supply Whole Life Of Briquette Machie | Product Name: | Coal Briquette Machine |
Product Description
Description of the briquette machine:
The briquette machine is specially designed according to the characteristics of charcoal powder: specially used for charcoal/coal powder industry, mainly used in producing kindle carbon and charcoal briquettes.

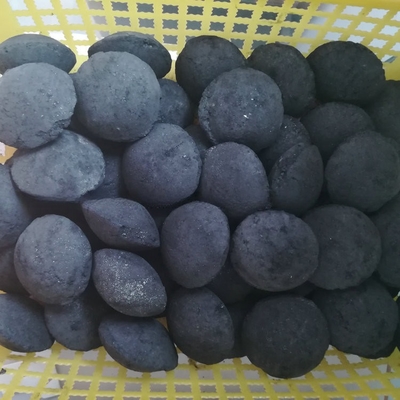

The final product that machine give is smokeless, non-toxic, non-toxic, no peculiar smell and environment protective, applicable to the outdoor or indoor barbecue with ventilation, as the heat very large, production time is twice more than traditional. With advantages of high pressure, high molding rate, high output, easy operation, rare fly-ash, evenly distributed heat and stable quality.
Ball press is widely used in metallurgy, mining, coal, refractory, abrasive, fertilizer, ceramics, etc.
Advantages of the briquette machine:
High quality and long usage life: In order to enhance the intensity of pressure, we adopt high wear-resistant sole processing technology, improve the service life of 5-8 times.
Multi-purpose: We can provide briquetting machine with many different capacities and moulds, which can produce final products with different shapes and sizes. And we also can accept special customized requirements.
Provide convenience and benefit: The powdery raw materials after briquetting will become briquettes, which will be easy for storage and convenient for transport. Even sometimes, it can turn waste to energy, like it can process the carbon black powder waste produced from tire/plastic pyrolysis machine to briquette making machine used as heating fuel, just like coal.

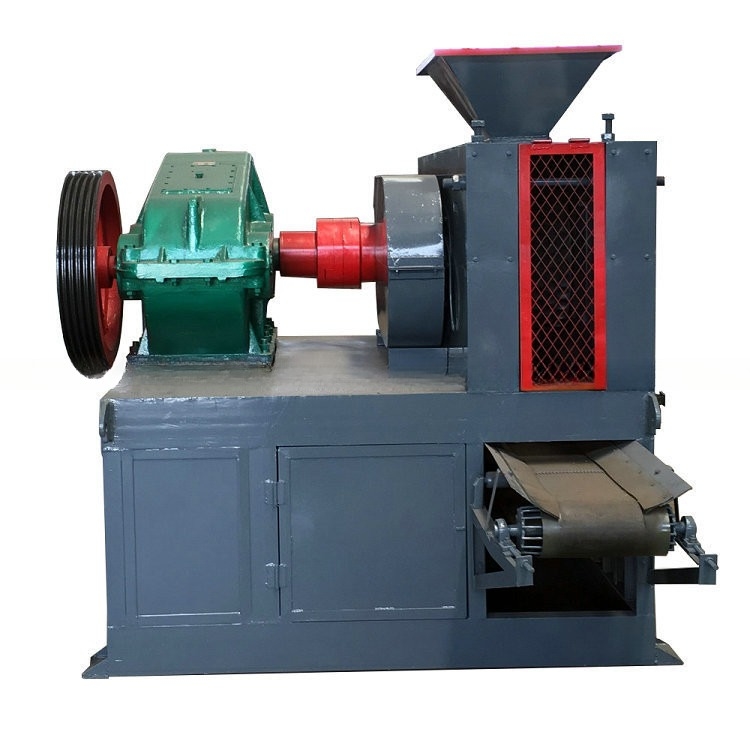

The structure of briquette machine:
1, the feeding part: it is used to feed material so that the material can feed to roller evenly, it is drived by Spiral comprises electromagnetic motor.
2. The transmission part, main transmission system: motor - triangle belt - reducer - open Gear - roll.
3. Forming part, mainly refers to the part of the host machine, its core part is roller.
| Model | Reducer | Roller size | Power (Kw) | Yield (t/h) | Roller Material | Roller pressure (t/cm) |
| XM290 | ZQ300 | Φ290 | 5.5 | 0.8-2 | 65Mn | 1 |
| XM360 | ZQ350 | Φ360 | 7.5 | 2-3.5 | 65Mn/9Cr2Mo | 1 |
| XM400 | ZQ400 | Φ400 | 11 | 4-5 | 65Mn/9Cr2Mo | 1 |
| XM430 | ZQ400 | Φ430 | 11 | 5-7 | 65Mn/9Cr2Mo | 1-2 |
| XM500 | ZQ500 | Φ500 | 18.5-30 | 6-8 | 65Mn/9Cr2Mo | 1-2.5 |
| XM650 | ZQ650 | Φ650 | 22 | 8-12 | 65Mn/9Cr2Mo | 1-2.5 |
| XM750 | ZQ750 | Φ750 | 30-75 | 12-18 | 65Mn/9Cr2Mo | 1-2.5 |
| XM850 | ZQ850 | Φ850 | 55-90 | 18-25 | 65Mn/9Cr2Mo | 1-2.5 |
| XM1000 | ZQ1000 | Φ1000 | 75-130 | 25-30 | 65Mn/9Cr2Mo | 2-2.5 |
PACKAGE:
All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.
DELIVERY TIME:
10-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
ABOUT US
Company information
Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech company, a professional supplier of briquette machine, mineral processing equipment and Mortar mix equipment.
After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise.
High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.
High Productivity
Fast Delivery
Leading Level R & D Department
Experienced Marketing Manager
Professional Design Department
Accept OEM & ODM
Excellent After-sales Service
