s leading hydraulic magnesium briquette machine with lifetime supply of spare parts
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $6,900.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel box, depends on machine weight. <br>Motor is packed with steel box or wooden box. Con |
| Supply Ability: | 25 Set/Sets per Quarter |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining |
|---|---|---|---|
| Weight (KG): | 2400 | Showroom Location: | Canada, United States, Pakistan, Mexico, Russia, Thailand |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor | Condition: | New |
| Production Capacity: | 1-30t/h Briquette Machine | Motor Type: | AC Motor |
| Dimension(L*W*H): | Based On Model | Warranty: | 1 Year |
| Ball Shape: | Oval, Pillow And Oblate | Roller Diameter: | 290-1000mm |
| Roller Material: | 65Mn/9Cr2Mo | Applicable Material: | Lime Powder,cryolite,aluminum Oxide,etc |
| Material Size: | Less Than 5mm | Color: | Client's Required |
| Spare Parts: | Supply Whole Life Of Briquette Press Machine | Service Life: | Supply Whole Life |
| Factory Visit: | Any Time | Keyword: | Hydraulic Magnesium Briquette Machine |
| Port: | Qingdao Shanghai Tianjin, Lianyungang,Guangzhou | ||
Product Description

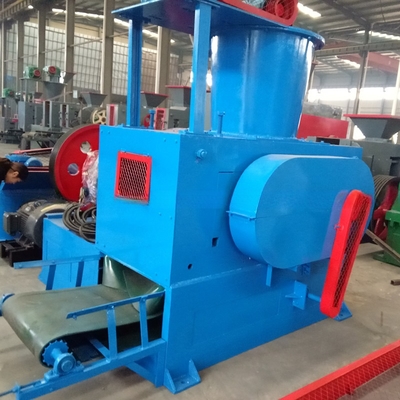

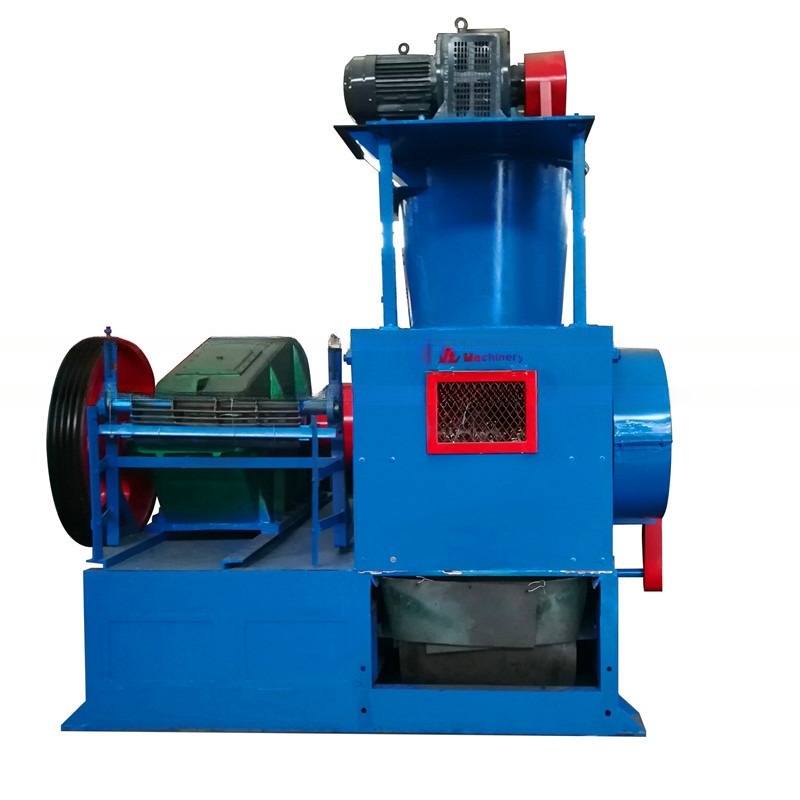

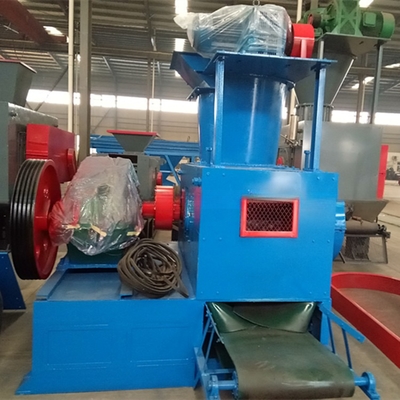

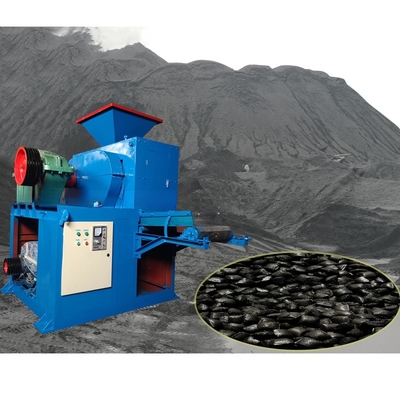

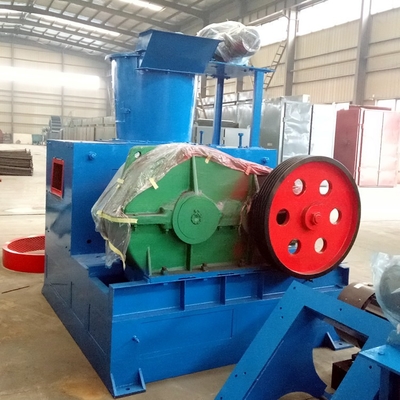

Briquette machine description
This briquette machine is for briquetting powder material without water or additive. It features in excellent technical performance, compact structure, reasonable assembly process, special alloy rollers, and long life-span. In addition, it also solves the troubles of low molding pressure and low strength problem in briquette production, and can be the ideal machine in this field.
This briquette machine is used for aliuminum scrap powder, fly ash, coke powder, cast iron, charcoal powder, gypsum powder, coal fines, ore fines, desulfurization gypsum, iron fines, mill scale, fluorite powder, manganese ore finesand other material fines into briquette.
Application of dry powder briquetting machine price
1.Coal powder/coal fine/coal dust
2.Charcoal powder/charcoal fine/charcoal dust
3.Gypsum/Desulfurization Gypsum/quicklime/slaked lime/
4.Activated carbon/carbon black
5.All kinds of metal powder/Manganese/magnesium/copper/iron
6.Iron oxide/aluminum oxide/clay
7.Some other type powder.
Features of dry powder briquetting machine price
1.High briquette ratio
2.Professional coal briquette machine manufacturer
3.Advanced briquette technology
4.Energy-saving coal briquette machinery
5.Environment friendly briquette machine
6.Shape of briquette could be designed according to the customer requirements
7.High pressures briquette machine
Working principle
From the storage silo, the material is fed into the molding machine hopper evenly by the quantitative device. Then the regulation board on the hopper make the materal evenly enter into the middle of the roller; the reverse operating roller compress the material and the forming pressure increases gradually, at the centerline of the roll the forming pressure reaches its maximum value, once the material through the line, the molding pressure rapidly decrease so that the material forms into ball shape and smoothly discharge the ball.
Model | Roller diamater(mm) | Roller width(mm) | Capacity(t/h) | Main reducer | Main motor(kw) | Pre-pressure motor(kw) |
YHG-0.5 | ø299 | 180 | 0.5 | ZQ650 | 18.5 | 7.5 |
YHG-1.5 | ø367 | 183 | 1.2-1.4 | ZQ850 | 37 | 11 |
YHG-3.0 | ø522 | 196 | 2.5-3.0 | ZS1250 | 55 | 15 |
YHG-5.0 | ø738 | 210 | 4.5-5.5 | ZS1450 | 75 | 18.5 |
YHG-8.0 | ø760 | 225 | 7.5-8.5 | ZS1650 | 90-110 | 18.5 |
YHG-10.0 | ø858 | 300 | 8.0-9.5 | ZS1650 | 110-132 | 22 |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
In-Sales
* Strict inspection before leaving factory.
* Delivery goods according to contract
After-Sales Service
* Training how to instal the dry powder briquetting machine price, training how to use the machine.
* Engineers available to service machinery overseas.
Packing Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.

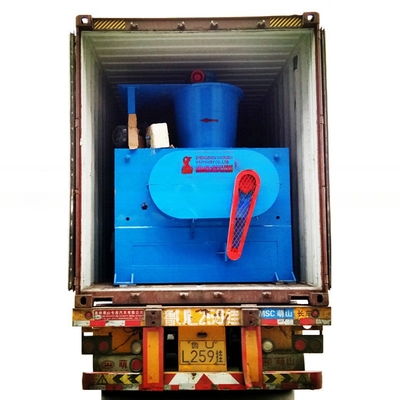

Loading container in factory.
Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
