10-15 t/h Complete Coal Briquette Production Line 750 Roller Type Machine for Briquettes
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
| Certification: | CE ISO BV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,600.00/sets >=1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Energy & Mining |
|---|---|---|---|
| Weight (KG): | 1300 | Showroom Location: | Turkey, United States, Brazil, Mexico, Russia, Thailand, Kenya, Sri Lanka, Nigeria, Australia |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor, Gear | Condition: | New |
| Production Capacity: | 10-15t/h | Motor Type: | AC Motor |
| Dimension(L*W*H): | 3.7*2.55*2.6m | Warranty: | 1 Years |
| Product Name: | Complete Coal Briquette Production Line | Keyword: | Coal Briquette Production Line |
| Application: | Press Coal Powder To Oval Shape Coal Briquettes | Installation: | Under Engineers Guidance |
| Briquette Ratio: | 95% Briquetting Ratio | Voltage: | 220V/380V/415V/460V |
| Machine Including: | Feeder, Hopper, Conveyor, Mixer, Briquette Machine, Briquette Dryer | Capacity: | 10-15t/h Coal Briquette Line |
| Color: | Red,Gray, Green | ||
Product Description
The coal briquette production line mainly pulverizes coal or carbonized charcoal, and then mixes it with a binder as a raw material, and puts it into a molding machine for extrusion molding.Conventional molding machines include coal rod machines,honeycomb coal briquette machines, charcoal ball press machines, etc.In the coal ball production line, there are four main engines including: coal crusher, wheel mill, binder mixing tank, ball press machine and so on. The entire production line can be equipped with conveyors, silos, etc. to improve production automation and reduce labor costs.
Our Projects of Coal Briquette Production
01.15 ton Fluorite powder briquettes production line
02.25t coal briquette dryer in India
03.Iron fines briquette production line in China
04.40t iron powder briquette production line
05.Chengdou briquette production line
Coke / Coal Briquetts Manufacturing Process
The followings are things you should know before setting up your own coal briquetting plant or start your coal briquettes
business.
The briquetting process can be illustrated using the following Flowchart:
Raw material > Crushing > Feeding > Mixing >Pressing > Drying > Briquettes
Common Feedstock for Coal Briquette Production Line
* Coal Dust
* Charcoal Dust
* Coke Dust
* Carbon Black
* Mineral Powder (e.g manganese ore dust, nickel powder, silicon carbide)
* Lime Powder
* Other Powdery Material
Main Equipment for Coal Briquetting Production
| Model | Reducer | Roller size | Power (Kw) | Yield (t/h) | Roller Material | Roller pressure (t/cm) |
| XM290 | ZQ300 | Φ290 | 5.5 | 0.8-2 | 65Mn | 1 |
| XM360 | ZQ350 | Φ360 | 7.5 | 2-3.5 | 65Mn/9Cr2Mo | 1 |
| XM400 | ZQ400 | Φ400 | 11 | 4-5 | 65Mn/9Cr2Mo | 1 |
| XM430 | ZQ400 | Φ430 | 11 | 5-7 | 65Mn/9Cr2Mo | 1-2 |
| XM500 | ZQ500 | Φ500 | 18.5-30 | 6-8 | 65Mn/9Cr2Mo | 1-2.5 |
| XM650 | ZQ650 | Φ650 | 22 | 8-12 | 65Mn/9Cr2Mo | 1-2.5 |
| XM750 | ZQ750 | Φ750 | 30-75 | 12-18 | 65Mn/9Cr2Mo | 1-2.5 |
| XM850 | ZQ850 | Φ850 | 55-90 | 18-25 | 65Mn/9Cr2Mo | 1-2.5 |
| XM1000 | ZQ1000 | Φ1000 | 75-130 | 25-30 | 65Mn/9Cr2Mo | 2-2.5 |
This equipment is used at the crushing stage of the production process. The purpose of the vertical complex crusher, which was brilliantly designed by our team of outstanding and supremely qualified engineers, is to pulverize and grind coal, charcoal, coke,lime, stone and other materials used for the production of briquettes, into smaller and finer particles. The pounded materials can thus be disposed of or recycled more easily.
The feeder machine is essentially a storage machine that temporarily stores up the crushed raw materials before they go into the mixer. The significance of this storage cannot be overlooked because it ensures that there is sufficient amount of material going into the mixer prior to the mixing process. It's operations can be likened to those of a Silo.
The binder mixer and the liquid mixer are arranged in tandem during the production process, and for good reason.
* The liquid mixer first mixing the binder and water into proper proportion, and then use some measurable equipment to give adequate amount of material to the binder mixer at proper time.
* Binder mixer furthers the mixing process by mixing grinded coal dust or charcoal dust (charcoal powder), etc with water and binder etc. It then discharge the mixed materials automatically without manual help.

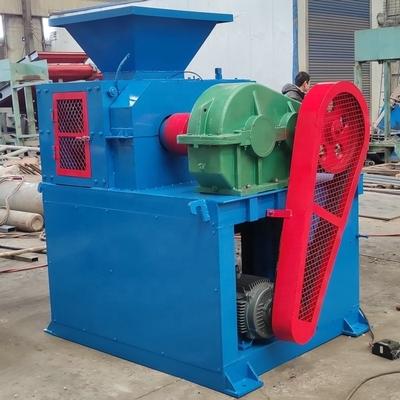

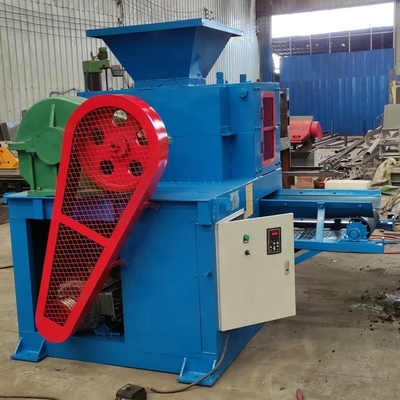

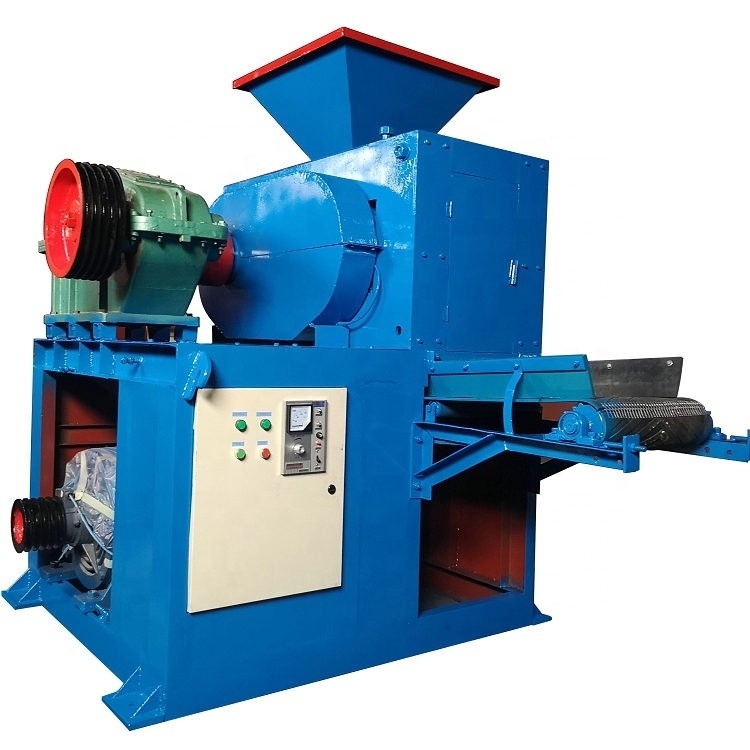

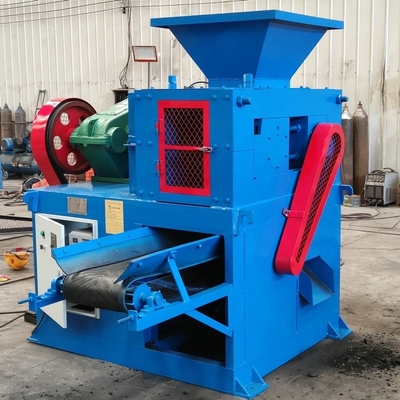

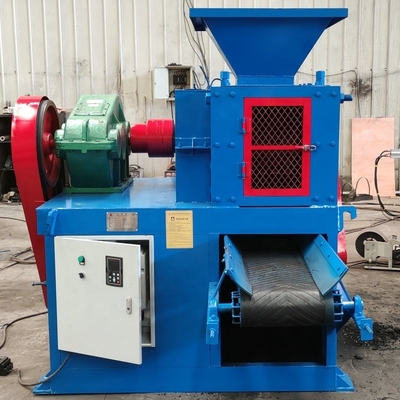

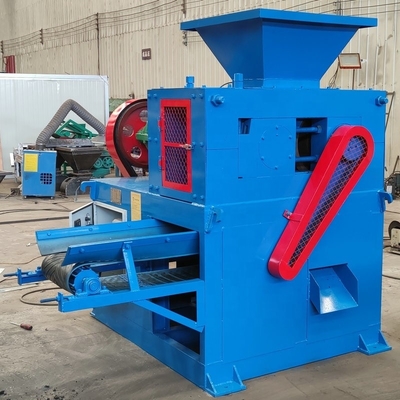

Briquette machine is mainly composed of motor, reducer, mainframe, belt conveyor, roller, Pressure system and electric control, etc. The material fall into the middle of two rollers by it’s own gravity effect , two roller surface evenly distributed roll socket of the same shape, two rollers’ speed is same and relative rotation , make the material into the socket and force compression, with the roller continue rotate, the ball take off on its surface tension and gravity.
The final part of the coal briquetting production process involves drying the briquettes produced by the briquetting press. Composed of three main parts - the drying machine, centrifugal fan and the hot blast stove - the dryer efficiently achieves this drying function by producing hot air which makes continuous contact with the briquettes. This contact ensures that the moisture present in the wet briquettes is converted into gas form and evaporated, thus producing dried briquettes ready for use.
This is one of the machines used in the briquetting process. Its purpose is to move and transport the powder material, granular materials, small block materials throughout the different stages of briquette production. Furthermore, the belt conveyor is used for other materials such as coal, charcoal, coke, debris, sand and fertilizer. It can handle materials with a bulk density of less than 1.67 t/m3.
After be pressed by briquette machine, the final briquettes can be molded and sculptured into any desired shape. Because of its ability to process coal or charcoal dust, it is thus befitting for Sinolion Machinery to also be referred to as a coal briquetting plant for sale.
Q:How do I choose a suitable briquette machine for my project?
A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the shape of final briquettes you required, also tell the output per hour you required.
Q: What is the binder in process?
A: It is depend on the properties of your raw materials and also usage of briquettes. We have some formula of binders for some of raw materials, we would like to share them to our customers.
Q: How long of your machine quality guarantee terms ?
A: Quality guarantee time is one year(wearing parts excluded).
Q: After ordered a briquette machine, how do we slove the equipment installing?
A: For a small single machine, we offer you user manual, the user will install and commissioning following operating introduction. A complete production line, we will send our engineer to workplace to help with install and commissioning untill machines work normally.
