220-440V Multilayer Continuous Mesh Belt Drying Machine for Iron Briquettes Drying
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $120,000.00/sets >=1 sets |
|
Detail Information |
|||
| Type: | Drying Oven | Application: | Plastics Processing, Mesh Belt Dryer Machine To Dry Bar Ball Briquettes Pellets |
|---|---|---|---|
| Condition: | New | Voltage: | 220-440V |
| Power: | 5.5kw | Dimension(L*W*H): | Refer To The Specific Model Dryer Machine |
| Key Selling Points: | Automatic | Warranty: | 12 Months |
| Weight (KG): | 60000 | Applicable Industries: | Manufacturing Plant, Energy & Mining |
| Showroom Location: | Canada, United States, Pakistan, Mexico, Russia, Thailand | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Weight: | 4-60T |
| Material: | Stainless /carbon Steel | Installation: | Engineer's Guidance |
| Dry Material Shape: | Oval Oblate Pillow Square Ground Ball Bar Briquettes Pellets | Usage: | Multilayer Continuous Mesh Belt Dryer Machine Device |
| Mesh Belt Width: | 0.6-2m | ||
Product Description
Product Introduction
multilayer continuous wire mesh belt drying oven machine for ball briquettes pellets drying coal charcoal coke fly ash iron

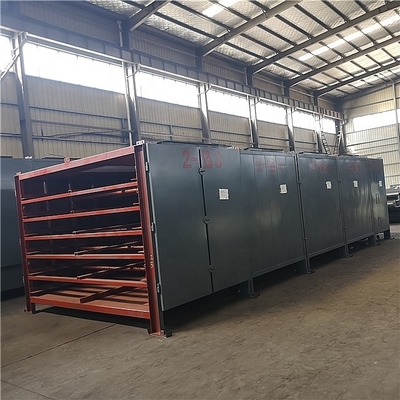

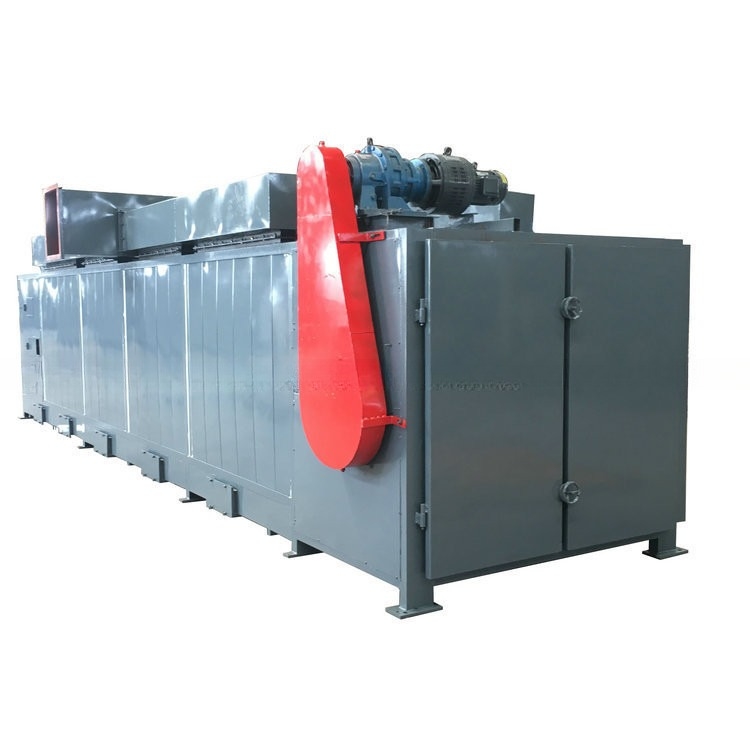

The multilayer continuous mesh belt dryer machine is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various balls (for examples: fly ash,iron,coal, balls of all kinds of mineral, food and vegetables). This mesh belt dryer can be used with other supporting machine and also can be used alone. Especially it is the ideal dry equipment of various kinds of materials ball production line.
Product Parameters
Model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 | ||||||||
Quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | 10 | ||||||||
Width of belt(m) | 1.2 | 1.6 | 2 | ||||||||||||
Length of dry section(m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 | ||||||||
Operation temperature(oC) | 50-140 | ||||||||||||||
Steam pressure(MPa) | 0.2-0.8 | ||||||||||||||
Steam consumption (kg/h) | 120-300 | 150-375 | 150-400 | 180-500 | 180-500 | 225-600 | 450-1200 | ||||||||
Drying time (h) | 0.2-1.2 | 1.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 | ||||||||
Drying capacity(kg water/h) | 60-160 | 80-200 | 85-220 | 100-260 | 100-260 | 120-300 | 240-600 | ||||||||
Total power (kw) | 11.4 | 13.6 | 14.6 | 18.7 | 19.7 | 24.5 | 51 | ||||||||
L(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 | 21.56 | ||||||||
W(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | 2.32 | ||||||||
H(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 | ||||||||
Weight (kg) | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 14000 | ||||||||
Product Details Show
Product Processing
Steel belt making process
The belt material of fly ash ball mesh belt dryer can be carbon stell or Stainless steel. the material depands on dry material. We will use carbon steel if dry material is fly ash ball,iron ball,coal ball, charcoal ball, carbon black ball and other mineral balls.When the fly ash ball mesh belt dryer dry fruits, vegetables, medicinal herbs, we must use stainless steel belt.

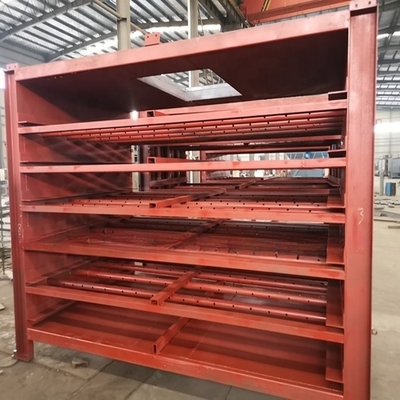

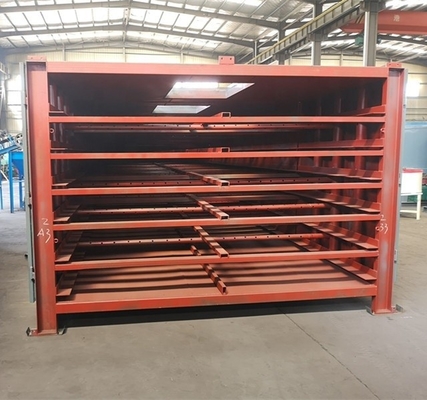

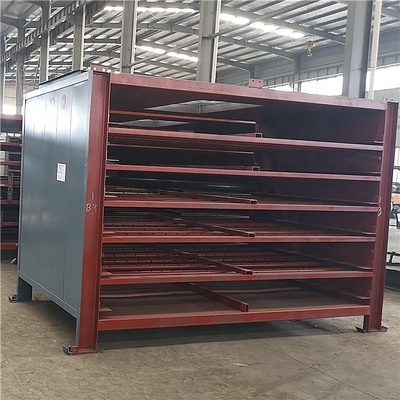

Fly ash ball mesh belt dryer Middle section
1.The shaft wall of fly ash ball mesh belt dryer including outside, inside, channel steel. all 3 layers is 3mm high carbon steel.
2.Upper of the dryer, there are 2 layers 2mm high carbon steel.
3. Bottom of the dryer, there is 1 layer 3mm high carbon steel.
4. The frame of the middle section is 3mm high carbon steel.
5. U-channel steel is 3mm thickness high carbon steel.
The material also can use stainless steel when dry fruits, vegetables, medicinal herbs etc.
2.Upper of the dryer, there are 2 layers 2mm high carbon steel.
3. Bottom of the dryer, there is 1 layer 3mm high carbon steel.
4. The frame of the middle section is 3mm high carbon steel.
5. U-channel steel is 3mm thickness high carbon steel.
The material also can use stainless steel when dry fruits, vegetables, medicinal herbs etc.
Mesh belt Detail
1,Shaft diameter 80mm
2, Sprocket diameter pitch=200mm
3,Mesh belt with chain use SUS 304
4, Bearing No. UCT316
Mesh belt parameter
1,Spring length100mm;
inner holeΦ82mm; thicknessΦ16
2.Mesh wire’s thickness Φ3mm
3. Wire feed diameter Φ3mm
Bearing of mesh belt dryer
Bearing No.according to belt layer.
1 layer mesh belt dryer, bearing 4 sets
Packing & Delivery
Fly ash ball Mesh belt dryer packing

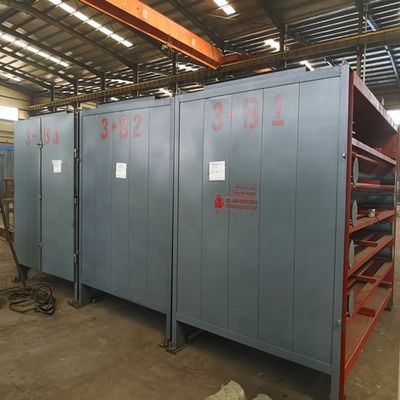

The middle dry section of fly ash ball mesh belt dryer is 2 meters , so it is very easy to loading them into containers. the mesh belt dryer head and tail is 2.5m, so the complete mesh belt dryer can be loaded in containers separately, the mesh belt will rolled and delivery together with fly ash ball mesh belt dryer. other parts like dryer motore, fan, Electric control cabinet will packing in wood box or steel box.
Why Choose Us
About sinolion company
1,Our Company professional research and supply fly ash ball mesh belt dryer machine many years, we have lots experiences to help our clients choose workable mesh belt dryer to meet client's demand.
Mesh belt dryer technology
2, More than five engineers, professional research dryer technology, improving the dryer production process, to achieve customer satisfaction.
Service
3, Professional sales team to provide pre-sale service, let customers fully understand fly ash ball mesh belt dryer, specialist is responsible for after-sale service, solve practical problems when dryer working.
