Box Feeder and Brick Machine Feeder for Streamlined Brick Manufacturing Equipment
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION box feeder |
| Certification: | CE/ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Other, Box Feeder Machine |
| Brick Raw Material: | FLY ASH | Processing: | Brick Molding Machine |
| Method: | Autoclaved Aerated Concrete | Automatic: | Yes |
| Production Capacity (Pieces/8 Hours): | 20-40M3/H | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 3680*1300*960mm | Warranty: | 1 Year, 1 Year |
| Key Selling Points: | Evenly Feeder | Brick Size: | Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1.5 Years |
| Core Components: | Motor | Weight (KG): | 1600 Kg |
| Product Name: | Box Feeder Machine And Brick Machine Feeding Machine Production Line | Keywords: | Box Feeder Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Name: | Box Feeder |
| Raw Material: | High Quality Steel | Color: | Optional |
| Products: | 20-40m3/h | Model: | JB200 |
Product Description
Product Details
Best sell box feeder machine and brick machine feeding machine of production line
Box feeder machine supports the use of brick machine, briuqette machine,ball mill etc ,they are used for quantitative and definite proportion shipping of raw materials, the tape conveyor is used to feed material for briquette machine, brick machine and ball mill etc.
It is a necessary feeding equipments of briquette, brick production line
Product Introduction
Features of box feeder machine / box feeding equipment
The box feeder machine has Firm structure , simple installation ,reliable and safe operation , small labor intensity and so on, it can be matched with special platform balances for weighing, the quantitative and definite proportion formula is accurate, so it is a essential equipment for raw material processing workshop of ceramics factory.
Working principle of box feeder machine/ box feeding equipment
The main motor of box feeder machine / box feeding equipment runs through the three root type A triangle leather belt. The cycloidal pinwheel reducer and a pair of inclinded gear will torque to active sprocket. The sprocket drive chain and the carrier board device run with the speed of v=1.14m/min . Raw materials on the carrier board move forward together with the carrier board and the load weight can be adjusted by the gate. The raw materials fall down to the hopper (made by the user) through the crusher then feed the next machine through the belt conveyor.
Product Parameters
Model | Capacity(M3/H) | Power (kw) | Overalsize (mm) |
JB200 | 20-25 | 22 | 3680*1300*960 |
JB250 | 25-28 | 22 | 4180*1300*960 |
JB300 | 30-35 | 30 | 4680*1300*960 |
JB350 | 30-40 | 45 | 5180*1300*960 |

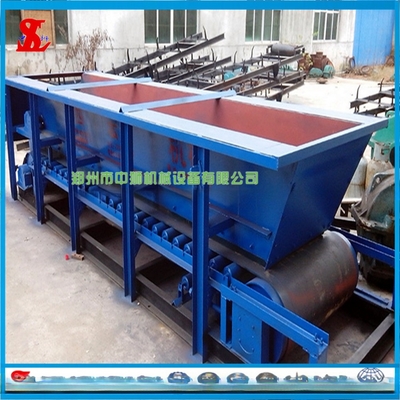

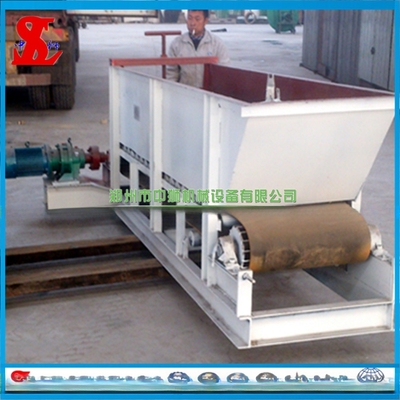

Working site picture
Box feeder machine used in briquette production line
Box feeder machine used in brick making line
Product Packing
Box feeder machine / box feeding equipment loading No.1
Box feeder machine / box feeding equipments loading
