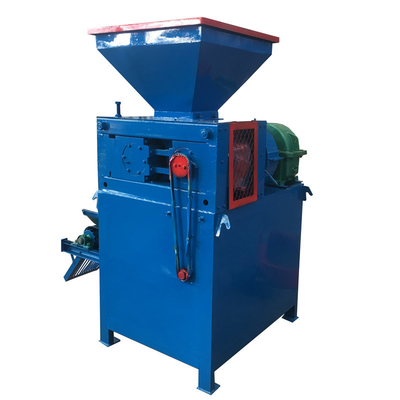

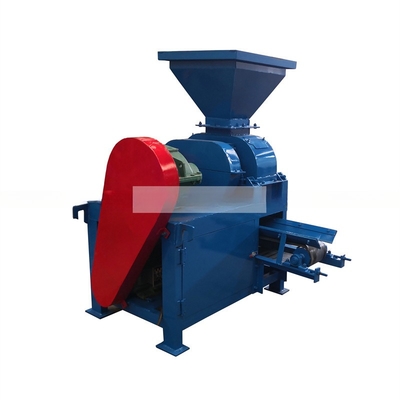

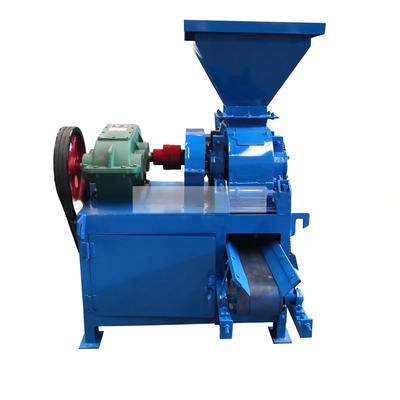

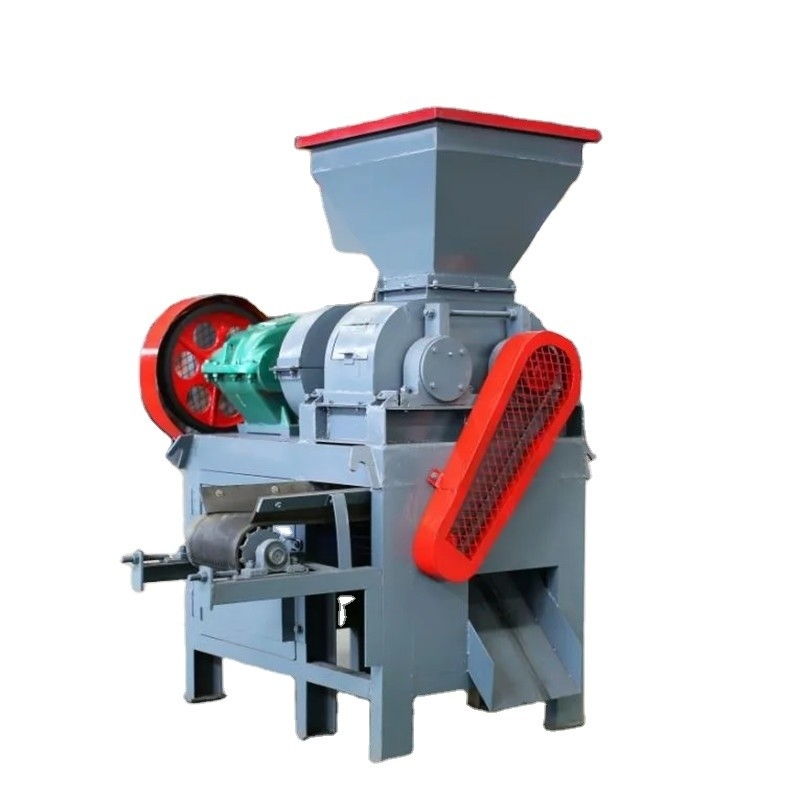

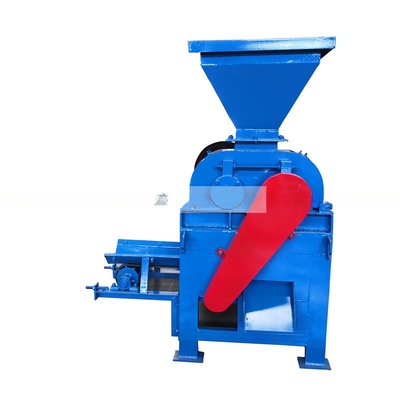

1-2 tph Coal Briquette Machine and Briquette Making Machine for Energy Mining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Brazil, Mexico, Russia, Kenya, Sri Lanka, Nigeria, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Gearbox, Motor | Voltage: | 220V 380V |
| Dimension(L*W*H): | 140*132*165cm | Weight: | 720 KG |
| Condition: | New | Warranty: | 1 Year |
| Product Name: | 1-2 Tph Coal Briquette Machine And Briquette Making Machine | Keyword: | Briquette Making Machine |
| Density Of Briquette: | 0.8-1.4g/cm3 | Material Moisture: | 15-30% |
| Briquette Size: | 40/50mm | Spare Parts: | Supply Whole Life |
| Service Life: | Supply Whole Life | Factory Visit: | Any Time |
| Pressure Mode: | Straw Briquette Machine | MOTOR: | Y120M-4 |
Product Description
This kind of machine is used to turn the powder to a regular shape block, which can help to improve the conditions for those powder, make them easy for transportation, storage, and more useful for further usage.The machine system is able to deal with all kinds of materials with suitable size and moisture. It works with the binder as it needs the binding effect to get enough strength for the finished briquettes. Roller material adopts 65Mn. The 65Mn roller is a kind of steel castings material with low cost and higher wear resistance.
A general single process for roller briquette press machine plant
wet roller briquette plant whole process show
Crusher ⇒ Silo ⇒ Mixer ⇒ Silo ⇒ Briquette Machine ⇒ Dryer
Crusher: If your material is too big, generally, a crusher must be needed, or else that will reduce the working life of the roller. Furthermore get proper size material is also a way to make well binder mixed material;
Silo: Silo is used to store the material for a smooth feeding for the next step;
Mixer: A good binder mixed material will get a high strength briquette as well as the briquette shaping rate. The water (if needed) and binder will be added here;
Dryer: You can choose vertical dryer or belt dryer according to your budget, if you have time and place to dry the briquette, you can even remove this equipment.
| Model | XM290 |
| Reducer | ZQ350 |
| Roller Size | Φ290 |
| Power (Kw) | 5.5 |
| Yield (t/h) | 0.8-2 |
| Roller Material | 65Mn |
| Roller pressure (t/cm) | 1 |
Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of briquette equipment, stone crusher and screening equipment. After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, Sinolion has continuously improved product values and performance. Now, 10, 000-300, 000 tons briquette production lines are renowned in domestic and foreign markets, and Sinolion products have been exported to Serbia, The United Kingdom, Turkey, Malaysia, Indonesia, Kazakhstan, Vietnam, North Korea, Egypt, Mexico, Ghana and other countries and regions.
Packing Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case. Loading container in factory.
Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Q:How do I choose a suitable briquette machine for my project?
A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the shape of final briquettes you required, also tell the output per hour you required
Q: What is the binder in process?
A: It is depend on the properties of your raw materials and also usage of briquettes. We have some formula of binders for some of raw materials, we would like to share them to our customers.
Q: How long of your machine quality guarantee terms ?
A: Quality guarantee time is one year(wearing parts excluded).
Q: After ordered a briquette machine, how do we slove the equipment installing?
A: For a small single machine, we offer you user manual, the user will install and commissioning following operating introduction. A complete production line, we will send our engineer to workplace to help with install and commissioning untill machines work normally.
|
|
|
