Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation

Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation

Product Details:

Place of Origin: China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00/sets 1-1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other Showroom Location: United States, Brazil, Mexico, None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2023 Warranty Of Core Components: 1 Year
Core Components: Engine, Motor, Pump Condition: New
Type: Circular Application: Ore
Voltage: 380v/415v/440v Dimension(L*W*H): Depends On Models
Weight: 660 KG Warranty: 1 Year
Product Name: Factory Sales High Quality Mobile Gold Mining Screen Keyword: Mobile Gold Mining Screen
Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel Dimension: According To Capacity
Installation: Supply Manual To Guide User Capacity: According To Model
Feeding Size: Less Than 300mm Discharge Size: As Request
Color: Yellow, White, Red, Blue, Gray( Or As Client Request) After-sales Service Provided: Field Installation, Commissioning And Training

Product Description

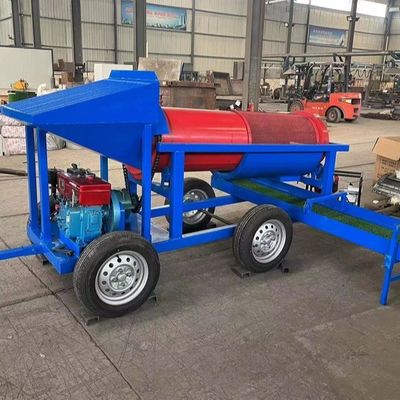

Factory sales High quality Mobile gold mining screen Big capacity trommel screen for sell

Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 0

GMTS0519 is the best selling small gold panning mobile trommel screen in our factory. The package size is 1000*3000*1400mm, and the gross weight is 660kg. And our trommel screens all use Honda engines. It is very convenient for personal operation.



Now there have been Columbia graduates, customers from the United Kingdom, Canada, Australia, Ghana and other countries have purchased our mobile gold trommel screen for gold mining many times. We have our own factory and professional engineers, so we can provide you with greater advantages in terms of price, quality and technology



Gold refining equipment working principle:
1. Input of raw materials    Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.

2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.

3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.





Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 1Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 2Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 3Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 4



technical parameters





Model

Capacity

(t/h)

Capacity

(t/h)

Diameter

(mm)

Length

(mm)

Discharge

(mm)

Input

(mm)

Dimension

((mm)

GMTS0519

5-10

5-10

500

1910

0-100

≤300

3000x1000x1800

GMTS1020

10-30

10-30

1000

2000

0-100

≤300

3390×1400×2140

GMTS1225

30-50

30-50

1200

2500

0-100

≤300

4146×1600×2680

GMTS1548

80-150

80-150

1500

4800

0-100

≤400

8460×2300×2500

GMTS1848

100-200

100-200

1800

4800

0-100

≤400

8460×2300×2700

GMTS2060

200-350

200-350

2000

6000

0-100

≤400

9680×2300x3420







Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 5

Packaging & Shipping

Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 6



Case

Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 7

Customer

Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 8

Company Information

Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 9

Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 10

Professional Gray Mobile Gold Mining Screen for Large Capacity Ore Separation 11
