Product Details:

Place of Origin: Henan, China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00 - $24,000.00/sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. <br>Motor is packed
Supply Ability: 40 Set/Sets per Month coke trommel screen
Get Best Price Contact Now

Detail Information
Applicable Industries: Building Material Shops, Construction Works , Energy & Mining Showroom Location: Canada, United States, Brazil, Mexico, Russia, Kenya, South Africa, Nigeria, Australia
Condition: New Type: Gravity Separator
Production Capacity: 98% Voltage: 380v/415v/440v
Dimension(L*W*H): Depends On Models Weight: 2200 KG
Warranty: 1 Year Marketing Type: New Product 2023
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Gear, PLC, Pressure Vessel, Engine, Gearbox
Key Selling Points: Automatic Power: 3-30KW
Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel Dimension: According To Capacity
Installation: Supply Manual To Guide User Capacity: 50-500 Tons Per Hour
Feeding Size: Less Than 300mm Discharge Size: As Request
Color: Yellow, White, Red, Blue, Gray( Or As Client Request) Product Name: Gold Ore Processing Plant Gold Mining Trommel Equipment For Sale
Keywords: Gold Ore Processing Plant Port: Qingdao, Dalian, Tianjin, Lianyungang, Dalian, Shanghai, Guangzhou( As Client Request)

Product Description

Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 0
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 1
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 2

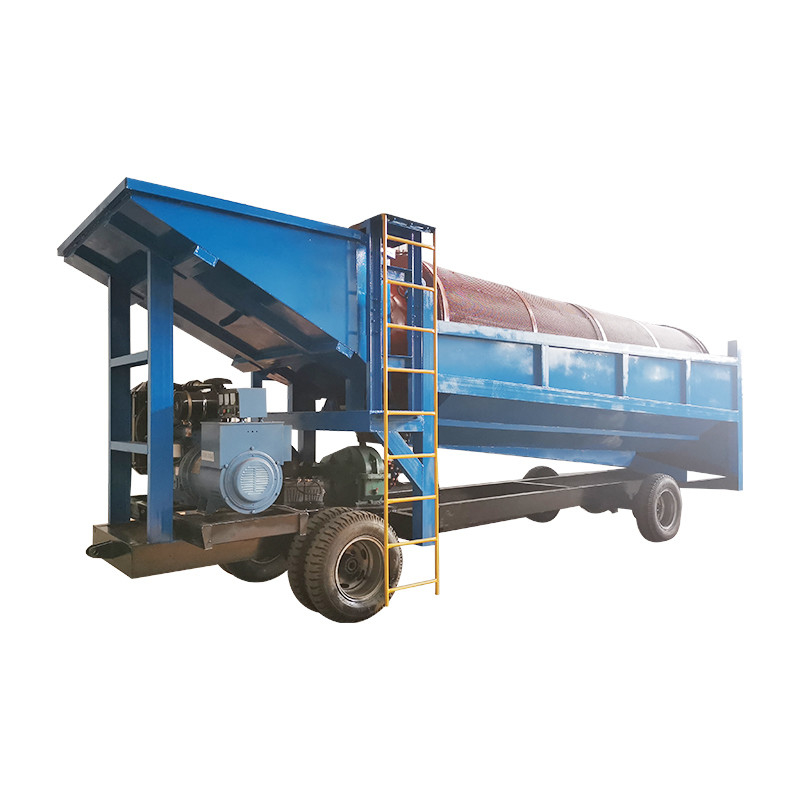

Mobile Stationary Sand Trommel Screen For River Gold Mining Equipment
Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Its Working Principle Is To Control The Size Of Particle Size To Control The Separation Of Waste, Thus Improving The Separation Efficiency. The Advantages Of Small Trommel Screen Are Obvious, And It Is More Flexible And Convenient Than Large-scale Mobile Screen In Terms Of Movement. Trommel Screen Internal Equipment, The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 3
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 4
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 5
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 6
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 7

Structure and Principle

The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The
Strong Water Pressure Of The Shower Equipped In The Hopper. 2. Selection And Cleaning Of Raw Materials Raw Materials Of The
Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The
Gold Dust Separate Panel. 3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But
Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 8
Model
Capacity
(t/h)
Capacity
(t/h)
Diameter
(mm)
Length
(mm)
Discharge
(mm)
Input
(mm)
Dimension
((mm)
GMTS0519
5-10
5-10
500
1910
0-100
≤300
3000x1000x1800
GMTS1020
10-30
10-30
1000
2000
0-100
≤300
3390×1400×2140
GMTS1225
30-50
30-50
1200
2500
0-100
≤300
4146×1600×2680
GMTS1548
80-150
80-150
1500
4800
0-100
≤400
8460×2300×2500
GMTS1848
100-200
100-200
1800
4800
0-100
≤400
8460×2300×2700
GMTS2060
200-350
200-350
2000
6000
0-100
≤400
9680×2300x3420
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 9
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 10
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 11
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 12
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 2
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 14
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 15
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 16
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 17
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 18
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 19
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 20
Alluvial Gold Mining Equipment Trommel Washing Plant for 50-500 Tons Per Hour Capacity 21
