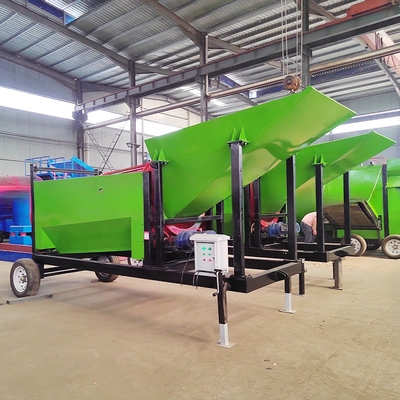

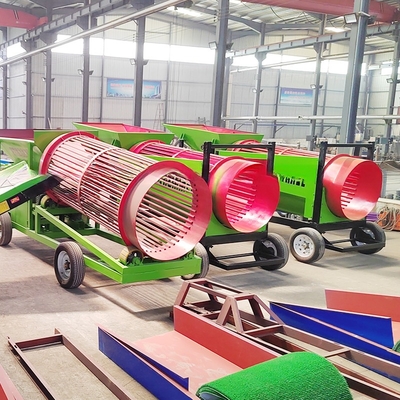

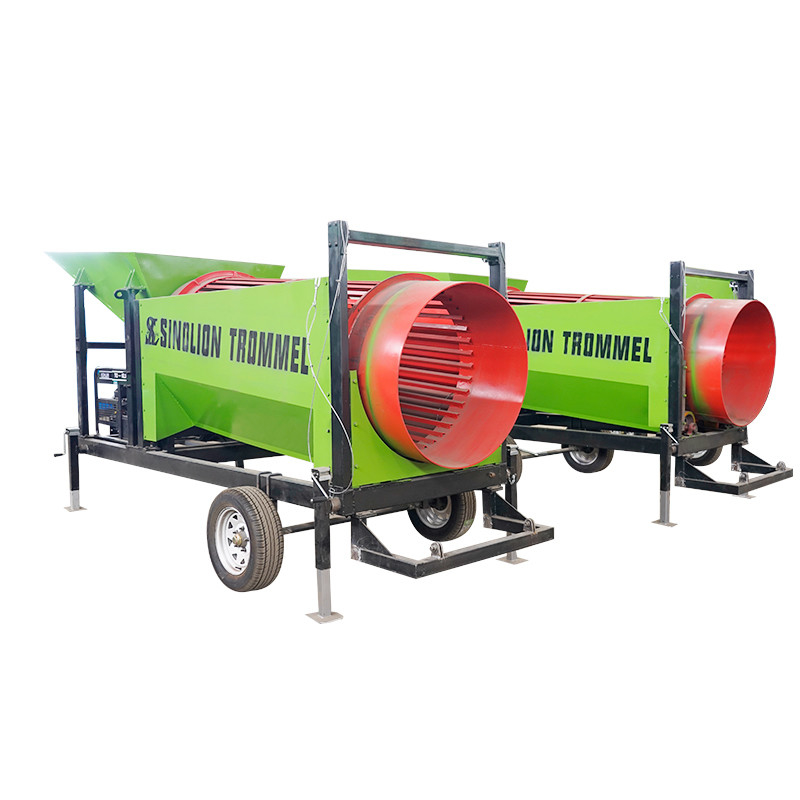

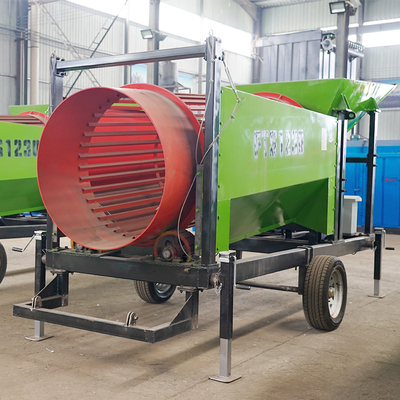

Rotary Drum Screen Mobile Firewood Sawdust Trommel Screen with 5613*1940*2390mm Size
Product Details:
Place of Origin: | China |
Brand Name: | Sinolion |
Certification: | ISO CE |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $13,100.00/sets 1-1 sets |
Detail Information |
|||
Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Germany, Mexico, South Africa, Nigeria, Australia |
---|---|---|---|
Condition: | New | Type: | Gravity Separator |
Production Capacity: | 60m3/h | Voltage: | 220V/380V |
Dimension(L*W*H): | 5613*1940*2390mm | Weight: | 1790 KG |
Warranty: | 1 Year | Marketing Type: | Ordinary Product |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Engine |
Key Selling Points: | Easy To Operate | Product Name: | Firewood Trommel Screen |
Power: | 3-45KW | Installation: | Supply Manual To Guide User |
Feeding Size: | Less Than 300mm | Application: | Ore, Waste, Mulch, Organics, Bark |
Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven | Dimension: | According To Capacity |
Discharge Size: | As Request | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description



High Efficiency Rotary Drum Screen Mobile Firewood Sawdust Trommel Screen
The firewood trommel screen will efficiently remove all fines (dirt, gravel, wood chips & splinters) through the fine screen and most of the kindling and smaller pieces of wood through the coarse screen. The firewood trommel screen is designed as an add on to a bulk processing system. Cleaning the wood in the last step before packaging for bulk retail sale. For wood yards this means the wood is cleaner, more saleable and results in more accurate weight measurement. With a constantly loaded feeding hopper, the capacity of this machine is estimated in excess of 60m3 per hour. Talk with our team about customising a firewood trommel screen to suit your requirements.







Structure and Principle

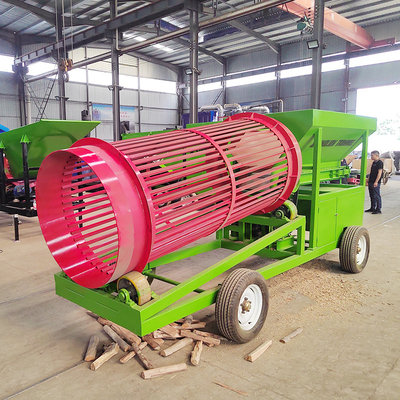

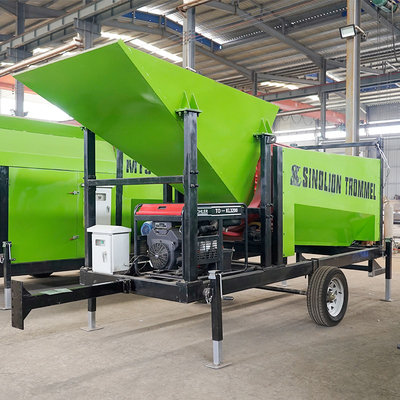

Firewood tumbler is composed of feeding hopper, screen drum, chassis, wheel, transmission device, and control cabinet(optional parts: diesel engine generator and belt conveyor). It is a new type of mobile screening platform, and suitable for the power plant, coking plant, building materials, metallurgy, chemical, mining and other industries. It has the features that less investment, less labor, simple operation and flexible.
After the materials is feed into the drum, on the one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different number of meshes. The different materials fall into different hopper and then be sent to different finished product stacks by manpower or belt conveyor.

Product Name | Mobile Firewood Trommel Screen | ||||||
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | |||
FTS1230 | 60 | 3 | 1200 | 3000 |
