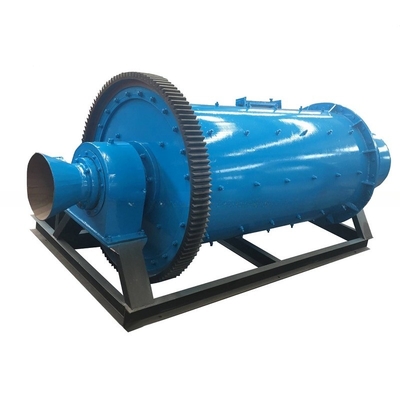

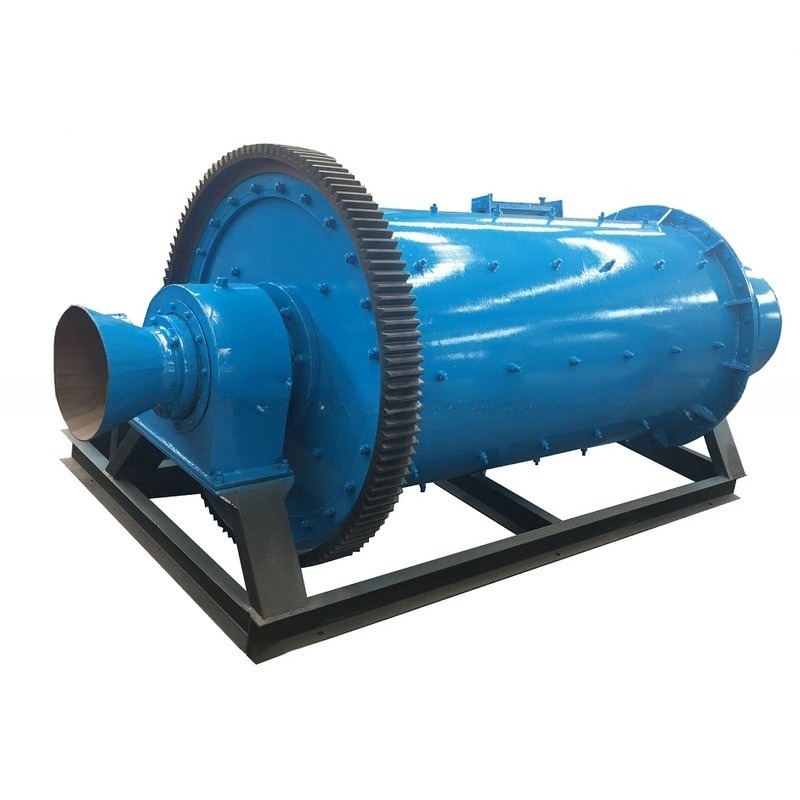

Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore

Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore

Product Details:

Place of Origin: China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $2,686.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2023 Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Type: Ball Mill Motor Type: AC Motor
Capacity(t/h): 0.5-83t/h Dimension(L*W*H): Based On Different Model
Weight: 3.6 KG Warranty: 2 Years For The Quality Of Equipment
Application: Gold Ore Iron Ore Copper, Quartz Limestone, Clinker, Cement, Chromite Liner: High Manganese, Rubber, Ceramic(as Client Request)
Spare Parts: Liner, Grinding Balls, Grinding Media Ball Mill Desiggn And Foundation: Supply By Seller
Operation: Automatic Or Manual After Sale Service: The Whole Using Life
Bussiness Type: Ball Mill Wet Lab Manufacturer Including: Gearbox, Gear, Pinion, Liner, Manual, Specifications
Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Overflow bearing small mini laboratory ball mill for gold copper ore iron chromite ore

Product Description



Wet dry ball mill importer application range :

The ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.



Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 0



Grinding is the last stage in the process of communication; in this stage the particles are reduced by a communication of impact and abrasion, either dry or in suspension in waterBall mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. It is performed in rotating cylindrical steel vessels known as tumbling mills.



Wet dry gold ball mill for sale technicial parameters:



Model

Rotation speed

(r/min)

Weight of

grinding media

(ton)

Size of feed opening

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

Φ 900x1800 38 1.5 ≤ 20 0.075-0.89 0.65-2 18.5 3.6
Φ 900x3000 38 2.51 ≤ 20 0.075-0.89 1.1-3.5 22 4.6
Φ 1200x2400 32 3.8 ≤ 25 0.075-0.6 1.5-4.8 30-45 12.5
Φ 1200x3000 32 5 ≤ 25 0.074-0.4 1.6-5 30-45 12.8
Φ 1200x4500 32 7 ≤ 25 0.074-0.4 1.6-5.5 55 13.8
Φ 1500x3000 27 8 ≤ 25 0.074-0.4 2-5.8 75-90 17
Φ 1500x4500 27 14 ≤ 25 0.074-0.4 3-6.5 110 21
Φ 1500x5700 27 15 ≤ 25 0.074-0.4 3.5-8 132 24.7
Φ 1830x3000 24 11 ≤ 25 0.074-0.4 4-10 180 28
Φ 1830x6400 24 23 ≤ 25 0.074-0.4 6.5-15 210 34
Φ 1830x7000 24 25 ≤ 25 0.074-0.4 7.5-17 245 36
Φ 2200x5500 21 30 ≤ 25 0.074-0.4 10-22 370 48.5
Φ 2200x6500 21 31 ≤ 25 0.074-0.4 14-26 280 52.8
Φ 2200x7500 21 33 ≤ 25 0.074-0.4 15-29 475 56



Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 1

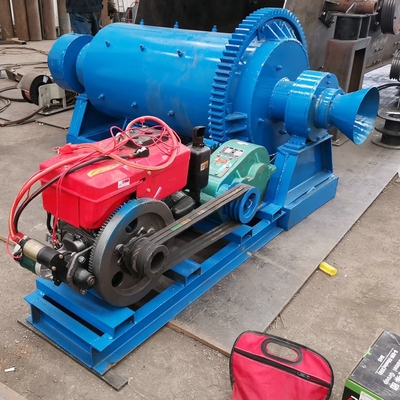

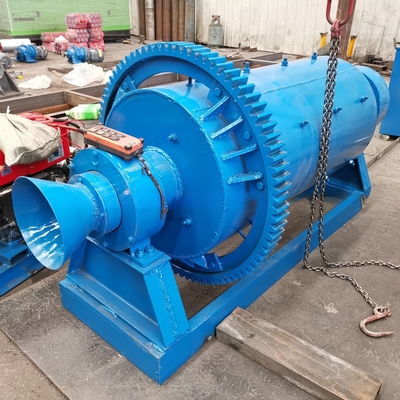

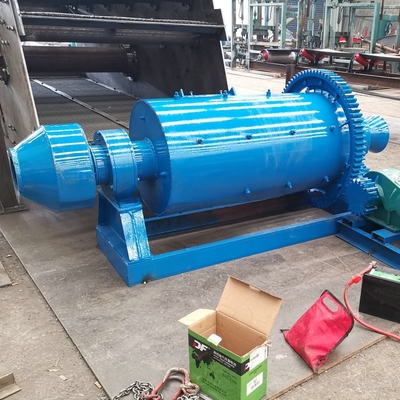

Ball miller machine:

Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 2

Packaging & Shipping

 Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 3Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 4



Working site

 Ball mill machine working site of Zhengzhou Sinolion:



Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 5

Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 6



Our Services


1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.



2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery;

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.



3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.

Company Information

Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 7Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 8

 Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 9

 Small Capacity Overflow Bearing Laboratory Ball Mill for Gold Copper Iron Chromite Ore 10

FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.



Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.



Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan,  Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc



Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
