Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $6,500.00/sets 1-1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Machinery Repair Shops Showroom Location: Mexico, Japan, Australia
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Type: Ball Mill Motor Type: AC Motor
Capacity(t/h): 0.65-35 Dimension(L*W*H): Depend On Models
Weight: 3600 KG Warranty: 1 Year
Application: Gold Ore Iron Copper, Quartz Limestone,clinker,cement,chromite,A Grinding Way: Wet Type Or Dry Type Or Batch Type
Operation: Automatic Or Manual Grinding Material: Calcium Carbonate, Calcite, Dolomite,bauxite,aragonite
Including: Gearbox, Gear, Pinion, Liner, Manual, Bearing, Specifications Spare Parts: Liner, Grinding Balls, Grinding Media

Product Description

Products Description

Mineral Grinding Specification gold ore quartz limestone wet flotation line ball mill machine

Energy saving small ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. such as cement, fire-proof materials, aluminum soil, the emery, glass raw materials, building sand, stone materials, metallurgical slag.

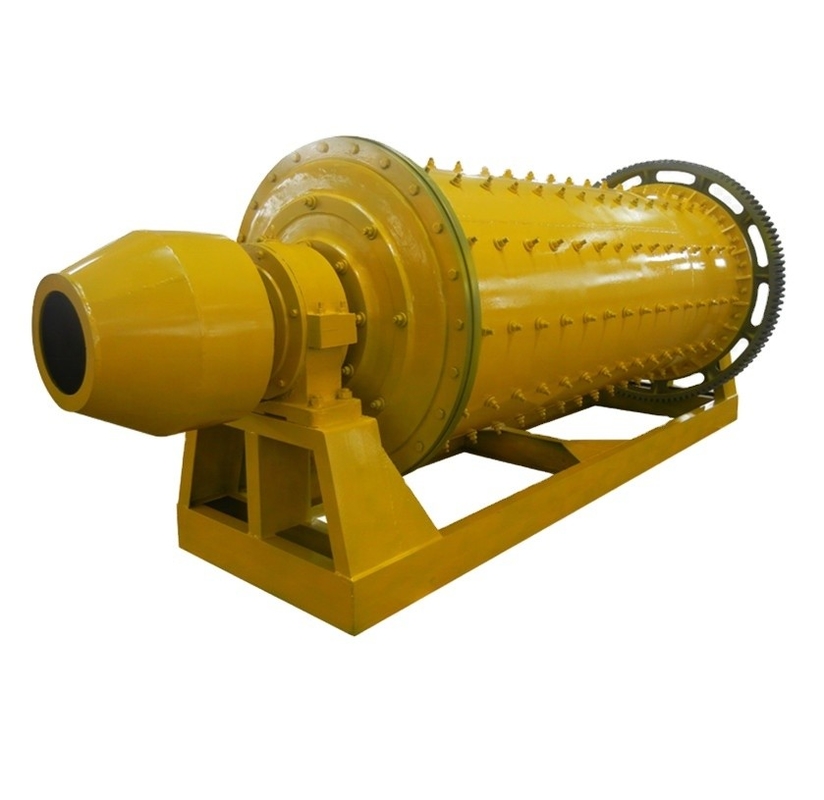

Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 0

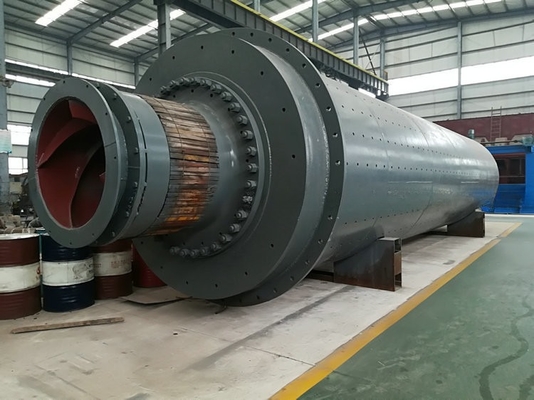

Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 1

Working principle of energy saving small ball mill

Horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.

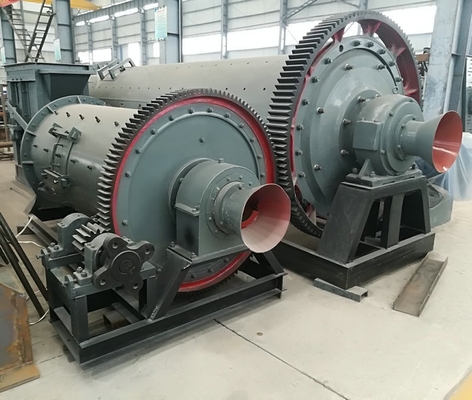

Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 2
Main technical parameter
Model
Cylinder rotating(r/min)
Grinding media loading(t)
Feed Size(mm)
Discharge Size(mm)
Capacity
(t/h)
Power(kw)
Weight(t)
Φ900*1800
38
1.5
≤20
0.075-0.89
0.65-2
18.5
3.6
Φ900*3000
38
2.51
≤20
0.075-0.89
1.1-3.5
22
4.6
Φ1200*2400
32
3.8
≤25
0.075-0.6
1.5-4.8
30-45
12.5
Φ1200*3000
32
5
≤25
0.074-0.4
1.6-5
30-45
12.8
Φ1200*4500
32
7
≤25
0.074-0.4
1.6-5.5
55
13.8
Φ1500*3000
27
8
≤25
0.074-0.4
2-5.8
75-90
17
Φ1500*4500
27
14
≤25
0.074-0.4
3-6.5
90-110
21
Φ1500*5700
27
15
≤25
0.074-0.4
3.5-8
110-132
24.7
Φ1830*3000
24
11
≤25
0.074-0.4
4-10
132-180
28
Φ1830*6400
24
23
≤25
0.074-0.4
6.5-15
210
34
Φ1830*7000
24
25
≤25
0.074-0.4
7.5-17
210-245
36
Φ2200*5500
21
30
≤25
0.074-0.4
10-22
370
48
Φ2200*6500
21
31
≤25
0.074-0.4
14-26
380
50
Φ2200*7500
21
33
≤25
0.074-0.4
15-29
475
56
Φ2400*7000
21
39
≤25
0.074-0.4
16-33
475
69
Φ2400*11000
21
51.5
≤25
0.04-0.08
16-35
630
99
Φ2700*3600
21
39
≤25
0.074-0.4
16-29
475
74
Φ2700*4500
21
43.5
≤25
0.074-0.4
20-35
500
80
Certifications
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 3
Detail information
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 4
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 5
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 6
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 7
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 8
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 9
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 10
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 11
Product packaging
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 12
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 13
Company Profile
Automatic/Manual Operation Mineral Grinding Machine for Aragonite Ore Quartz Limestone 14
FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.

Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.

Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
