Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00/sets 1-1 sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case.
Supply Ability: 50 Set/Sets per Month gold trommel screening plant
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: Canada, United States, Mexico, Australia
Condition: New Type: Gravity Separator
Production Capacity: 5-10t/h Voltage: 380V/415V/440V
Dimension(L*W*H): 3000x1000x1800mm Weight: 620 KG
Warranty: 1 Year Marketing Type: New Product 2022
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Gearbox
Key Selling Points: Easy To Operate, Automatic Product Name: Gold Mining Trommel Screen
Usage: Washing Gold Color: Yellow, White, Red, Blue, Gray( Or As Client Request)
Installation: Supply Manual To Guide User Keywords: Gold Mining Equipment
Dimension: According To Capacity Discharge Size: As Request
Feeding Size: Less Than 300mm MOQ: 1Set
Port: Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 0
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 1
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 2
Quality Assurance Small Mobile Gold Washing Equipment Gold Mining Trommel Screeng

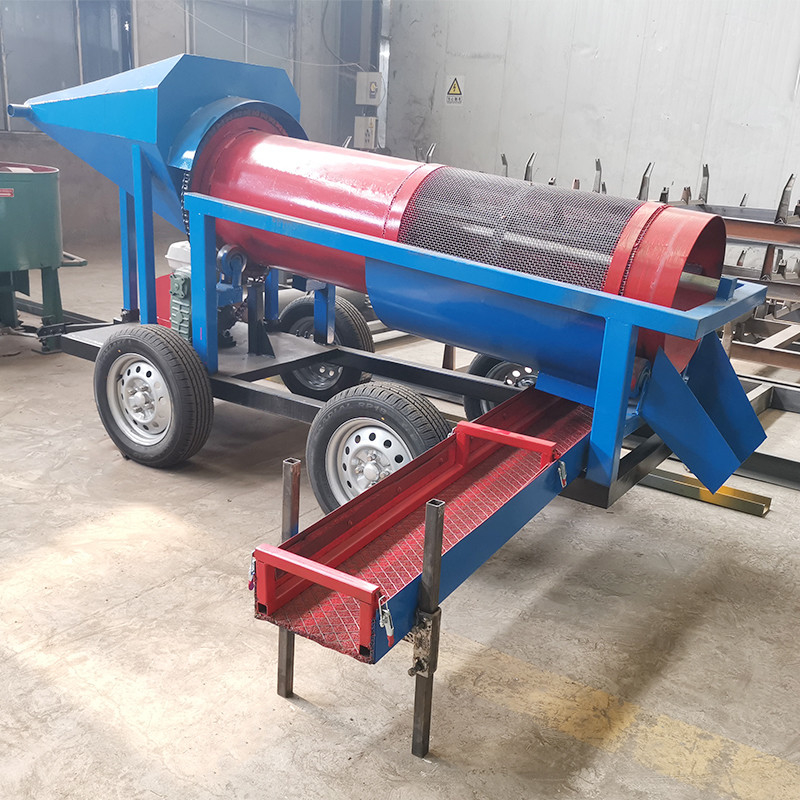

The Mini Gold Screen Equipment Is Mainly Used In Dry Land Beach, River Is A Gravity Processing Equipment Is Mainly Used In Sand Gold Ore And The Recovery Of Monomer Gold In The Vein.it Can Be Easily Movable On Land, It Has A Compact Structure, Strong Integrity, Light Weight, Large Handling Capacity, Simple Operation, Reliable Work, And Easy Maintenance, Easy To Move And So On. Placer Gold Trommel Is Composed Of Feeding Hopper, Screen Drum, Gold Chute, Wheels. It Overcomes The Problem Of Screen Blocking Of Various Vibrating Screens When Screening Wet Materials. Increased Production And Reliability Of The Screening System. The Maximum Product Under The Sieve Is 100mm, The Middle Is 10-50mm, And The Finest Is Up To 3mm. The Product Is Well Received By The Vast Majority Of Customers At Home And Abroad. The First Section Of Mini Gold Trommel Is 1910mm Steel Drum, The Second Section Is 840mm With Manganese Wire Mesh, Aperture 5mm,while The Third Section Steel Reel 160mm,round Steel Diameter 10mm, Small Opening 50mm, Tire Diameter , Four Tires, One Axle. It Is Equipped With Honda Diesel Engine, With Reducer, Chain, Leg, Roller. The Width Of The Discharge Tank Is 400mm And The Length 1500mm Contains Gold Panning Grass.

Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 3
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 4
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 5
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 6
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 7

Structure and Principle

The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper.
2. Selection And Cleaning Of Raw Materials Raw Materials Of The Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel.
3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 8
Product Name
Model
Capacity (t/h)
Power(kw)
Diameter(mm)
Length(mm)
Gold trommel screen
GMTS0519
5-10
1.5
500
1910
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 9
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 10
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 11
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 12
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 13
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 14
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 15
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 16
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 17
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 18
Assurance Small Capacity Gold Mining Trommel Screen for Mobile Washing Equipment 19
