50-500 Tons Per Hour Capacity Mobile Firewood Trommel Screen with 380v/415v/440v Voltage
Product Details:
Place of Origin: | China |
Brand Name: | Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $13,100.00/sets 1-3 sets |
Detail Information |
|||
Applicable Industries: | Building Material Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | Canada, United States, Australia |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
Core Components: | Motor | Condition: | New |
Type: | Circular | Application: | Firewood, Woodchips, Sawdust, Waste, Mulch, Organics, Bark, MSW, Building Waste |
Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
Weight: | 1790 KG | Warranty: | 1 Year |
Product Name: | Rotary Type Biomass Wood Chips Trommel Screen Firewood Garbage Trommel | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
Power: | 3-45KW | Dimension: | According To Capacity |
Installation: | Supply Manual To Guide User | Capacity: | 50-500 Tons Per Hour |
Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description
Application

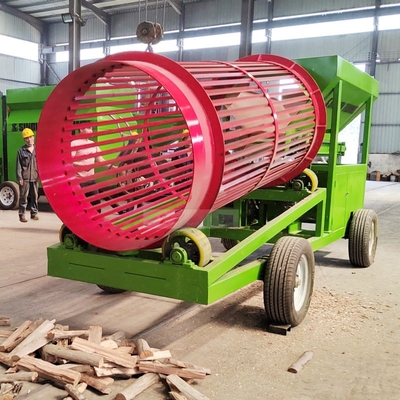

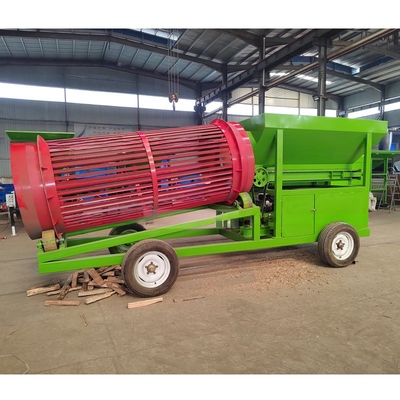

Mobile firewood trommel screen plant tumbler classifies small pieces and also different sizes of wood. Our trommel screen is a firewood tumbler for professionals, a one-stop portable screening solution for firewood manufacturers who want to provide customers with debris free products.
This mobile firewood trommel screen is equipped with a feeding conveyor, and the tail conveyor is optional. The impurities in firewood can be screened out to get clean firewood. Equipped with high-quality Kohler gasoline engine, it can achieve an ultra fast production capacity of 60 cubic meters per hour!
The mobile firewood trommel screen is equipped with a deceleration system, which can keep the drum rotating at a constant speed. The motor drives the reducer and then drives the drum to rotate. The bottom of the drum is equipped with four idler rollers as support. The screen mesh is made of high-quality angle iron, which is solid and durable. We can provide customized service. We can customize different models according to different materials and capacity. The hopper
volume is 1.8 cubic meters, and the screen area is 8.5 square meters.
Features:
Simple structure, large workload, durable, low production cost, convenient maintenance and many other advantages, processed sand, stone and other mixing materials automatic separation, is an ideal material for building, highway, cement building preform and other manufacturers.
1. High efficiency, heavy work.
2. Equipped with traction, it can be towed by a trailer, so it is easy to move.
3. Equipped with feeding conveyor for convenient feeding.
4. Made of high-quality materials, with a 1-year warranty.
5. Can be customized according to customer needs.
6. Factory supply, best price.
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |

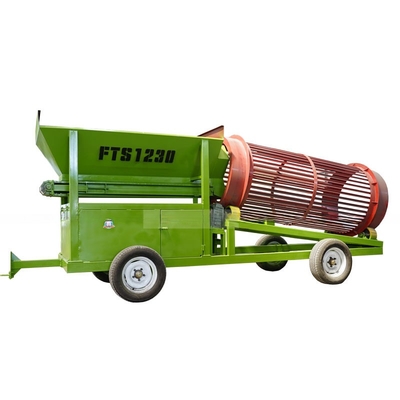

FTS1230 | 60 | 3.0 | 1200 | 3000 | 0-100 | ≤300 | 5613*1940*2390 |
Design and produce gravel trommel based on customer special requirement.
