Less than 300mm Feeding Size Movable Trommel Screen for Sawdust and Firewood Cleaning
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Sinolion |
Certification: | CE ISO |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $13,100.00/sets 1-1 sets |
Detail Information |
|||
Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Italy, Philippines, Mexico, UAE, Nigeria, Malaysia, Australia |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
Core Components: | Bearing, Gearbox, Motor | Condition: | New |
Type: | Circular | Application: | Ore, Sieve Sawdust |
Voltage: | 220V/380V | Dimension(L*W*H): | 5613*1940*2390mm, According To Model |
Weight: | 1790 KG | Warranty: | 1 Year |
Product Name: | Firewood Cleaning System | Feeding Size: | Less Than 300mm |
Discharge Size: | As Request | Installation: | Supply Manual To Guide User |
Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
MOQ: | 1 Set |
Product Description

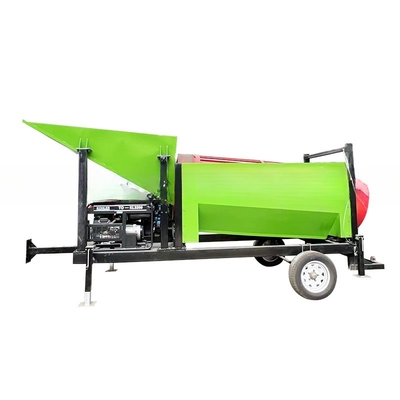

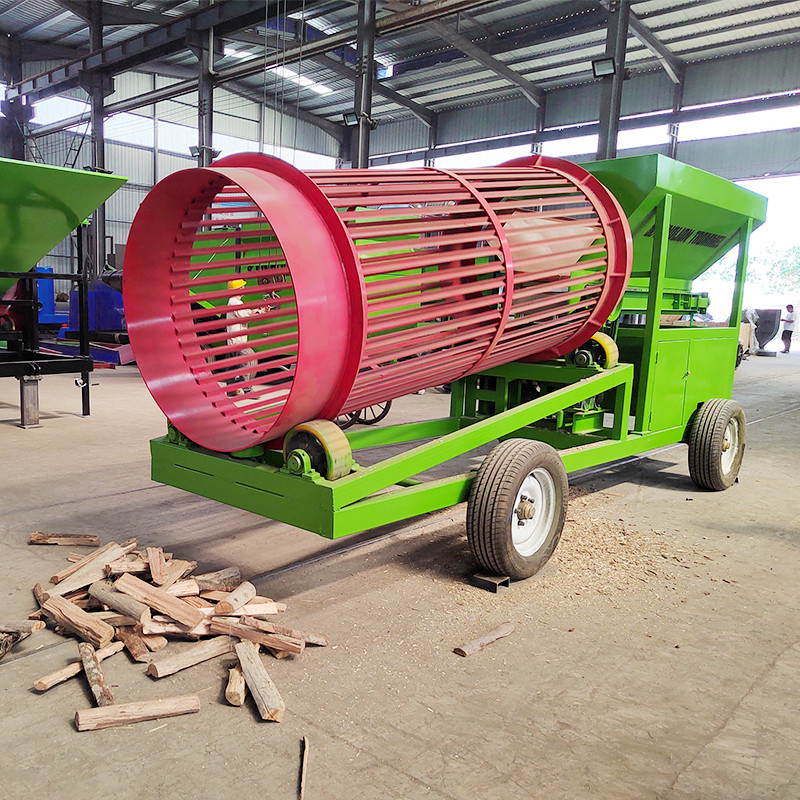

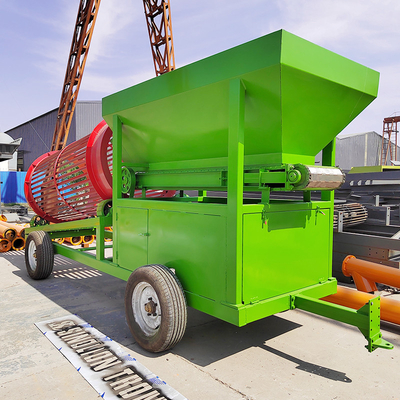

Movable Rotary Sieve Sawdust Firewood Cleaning System Trommel Screen
The firewood trommel screen will efficiently remove all fines (dirt, gravel, wood chips & splinters) through the fine screen and most of the kindling and smaller pieces of wood through the coarse screen. The firewood trommel screen is designed as an add on to a bulk processing system. Cleaning the wood in the last step before packaging for bulk retail sale. For wood yards this means the wood is cleaner, more saleable and results in more accurate weight measurement. With a constantly loaded feeding hopper, the capacity of this machine is estimated in excess of 60m3 per hour. Talk with our team about customising a firewood trommel screen to suit your requirements.







Structure and Principle
Firewood drums are suitable for particle classification processes in various industries. The barrel of the trommel screen is welded by angle iron. The trommel can rotate around a horizontal axis or a slightly inclined axis. The drum is driven to rotate by the motor/gasoline engine/gasoline generator through the roller. This new type of trommel screen makes use of the angle to make the material pass through the screen and move forward in the screen drum. The material falls after being brought to a certain height in the cylinder, which is beneficial to improve the screening efficiency. The trommel screen can also effectively prevent clogging.

Product Name | Mobile Firewood Trommel Screen | ||||||
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | |||
FTS1230 | 60 | 3 | 1200 | 3000 |

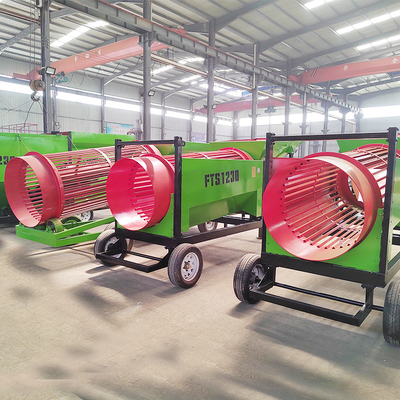

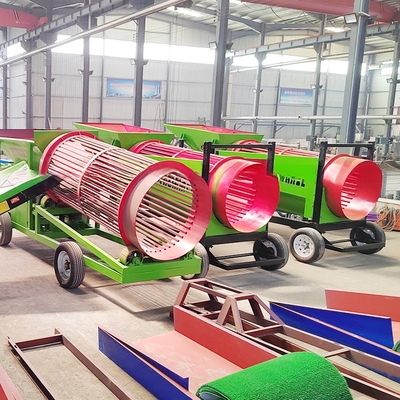

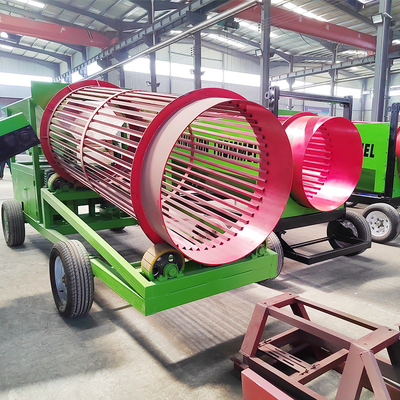

Production Site
