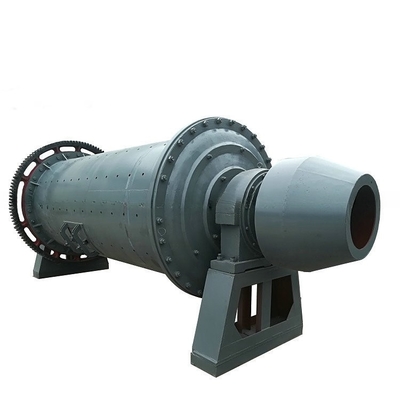

Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner

Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $2,686.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Gearbox, Motor Condition: New
Type: Ball Mill Motor Type: AC Motor
Capacity(t/h): 0.5-83t/h Dimension(L*W*H): Based On Different Model
Weight: 3.6 KG Warranty: 2 Years For The Quality Of Equipment
After-sales Service Provided: Engineers Available To Service Machinery Overseas Liner: High Manganese, Rubber, Ceramic(as Client Request)
Spare Parts: Liner, Grinding Balls, Grinding Media Stone Ball Mill Desiggn And Foundation: Supply By Seller
Operation: Automatic Or Manual After Sale Service: The Whole Using Life
Grinding Way: Wet Type Or Dry Type Or Batch Type Bussiness Type: Ball Mill 1 Ton Per Hour Manufacturer
Including: Gearbox, Gear, Pinion, Liner, Manual, Specifications Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Product Description



Wet dry ball mill 1 ton per hour



Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.

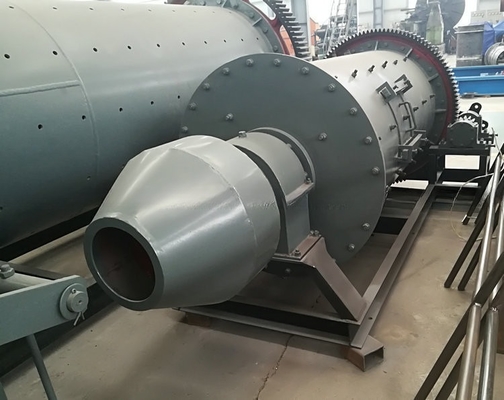

Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner 0





Ball Mill Features:


1) Ball mill is an efficient tool for grinding many materials into fine powder.


2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine.


3) Ball mill is widely used in building material, and chemical industry.


4) There are two ways of grinding: the dry way and the wet way.


5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine.



6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains

grinding media.


7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that

 mix and crush the product into fine powder over a period of several hours.


8) The longer the ball mill runs, the finer the powder will be.


9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time

how long the ball mill runs.



Ball mill Working Principle:





Ball mill is a is horizontal type cylinder rotary device and outside the cylinder there is drive gear which drives the cylinder to rotate during the working process. Materials spirally and evenly go into the first cabin of the grinding machine through the feeding hollow shaft from the feeding device, and inside the first cabin, there are ladder lining boards or ripple lining board in which there are many steel balls with different specifications. The cylinder rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. After being coarsely ground in the first cabin, the materials will go through the singlelayer partition board and into the secondary cabin in which there are flat lining board, and in the lining board there are steel balls to further grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.



Wet  dry gold ball mill for sale technicial parameters:





Model

Rotation speed

(r/min)

Weight of

grinding media

(ton)

Size of feed opening

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

Φ 900x1800 38 1.5 ≤ 20 0.075-0.89 0.65-2 18.5 3.6
Φ 900x3000 38 2.51 ≤ 20 0.075-0.89 1.1-3.5 22 4.6
Φ 1200x2400 32 3.8 ≤ 25 0.075-0.6 1.5-4.8 30-45 12.5
Φ 1200x3000 32 5 ≤ 25 0.074-0.4 1.6-5 30-45 12.8
Φ 1200x4500 32 7 ≤ 25 0.074-0.4 1.6-5.5 55 13.8
Φ 1500x3000 27 8 ≤ 25 0.074-0.4 2-5.8 75-90 17
Φ 1500x4500 27 14 ≤ 25 0.074-0.4 3-6.5 110 21
Φ 1500x5700 27 15 ≤ 25 0.074-0.4 3.5-8 132 24.7
Φ 1830x3000 24 11 ≤ 25 0.074-0.4 4-10 180 28
Φ 1830x6400 24 23 ≤ 25 0.074-0.4 6.5-15 210 34
Φ 1830x7000 24 25 ≤ 25 0.074-0.4 7.5-17 245 36
Φ 2200x5500 21 30 ≤ 25 0.074-0.4 10-22 370 48.5
Φ 2200x6500 21 31 ≤ 25 0.074-0.4 14-26 280 52.8
Φ 2200x7500 21 33 ≤ 25 0.074-0.4 15-29 475 56

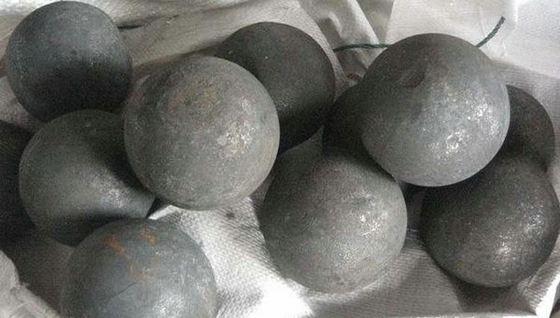

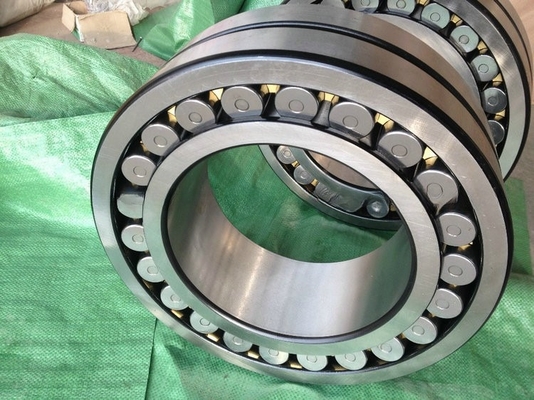

 Ball mill parts:Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner 1

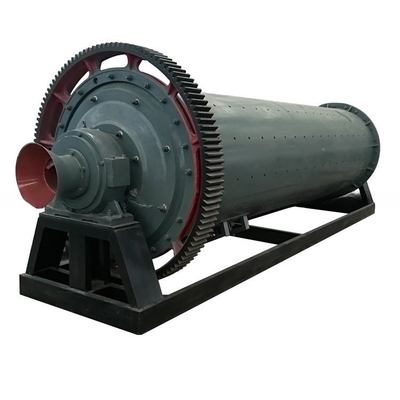

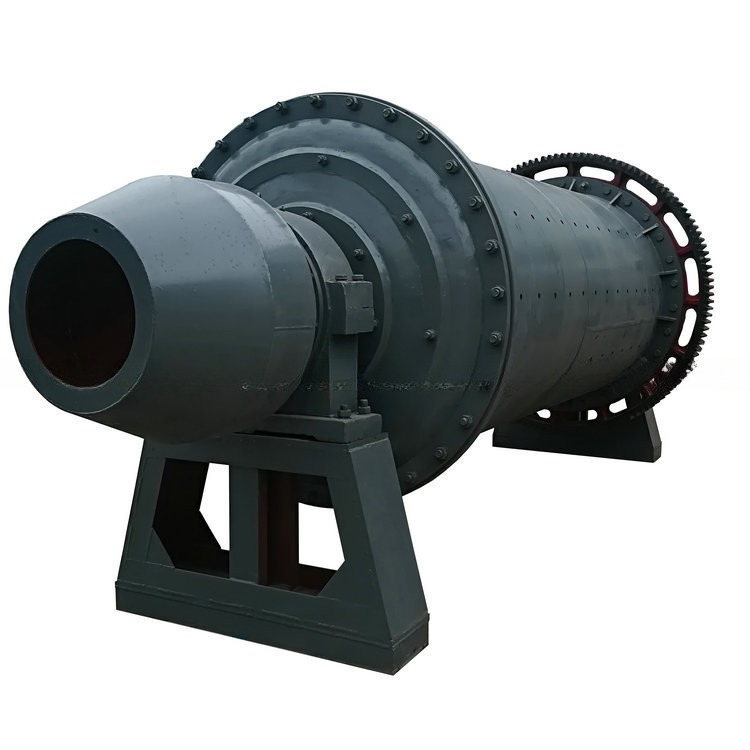

Stone ball mill machine:

Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner 2

Packaging & Shipping



 Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner 3



Working site

 Stone ball mill machine working site of Zhengzhou Sinolion:



Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner 4Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner 5

Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner 6Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner 7

Our Services


1. Pre-sale service:

1) Sinolion will provide production line designquotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.



2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.



3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.

Company Information

 Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner 8

Homemade 1 Ton 2 3 4 50 Tons Per Hour Small Grinding Ball Mill with Ceramic Liner 9





FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.



Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.



Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan,  Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc



Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
