50-500 Tons Per Hour Portable Firewood Operations Trommel Screen Rotary Drum Screen
Product Details:
Place of Origin: | China |
Brand Name: | sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $13,100.00/sets 1-1 sets |
Detail Information |
|||
Applicable Industries: | Building Material Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | None |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
Core Components: | Motor | Condition: | New |
Type: | Circular | Application: | Ore, Waste, Mulch, Organics, Bark, MSW, Building Waste |
Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
Weight: | 1790 KG | Warranty: | 1 Year |
Product Name: | Rotary Type Biomass Wood Chips Trommel Screen Firewood Garbage Trommel | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
Power: | 3-45KW | Dimension: | According To Capacity |
Installation: | Supply Manual To Guide User | Capacity: | 50-500 Tons Per Hour |
Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description

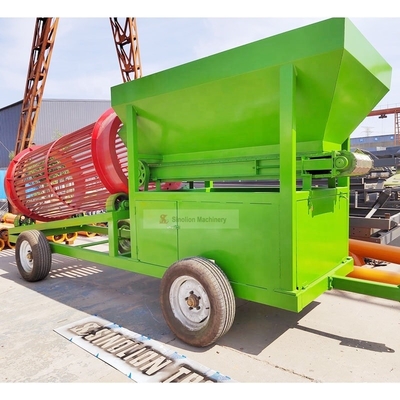

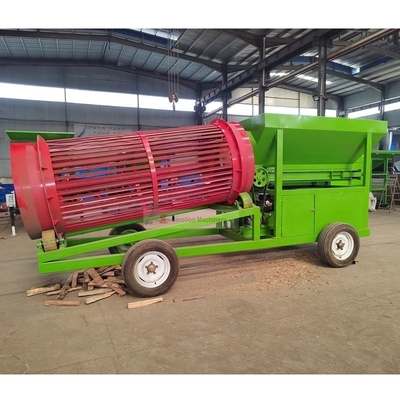

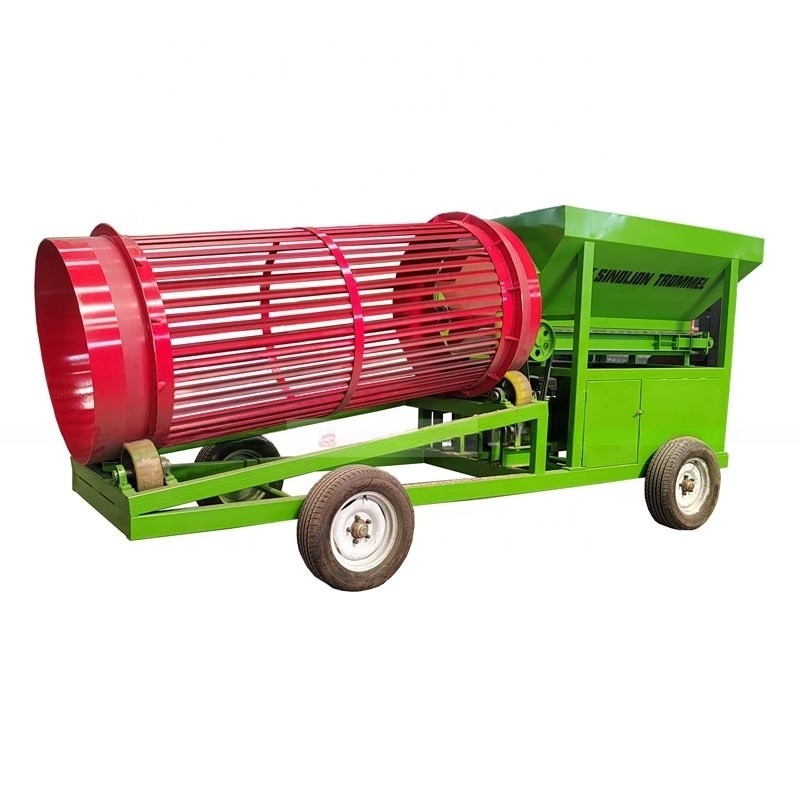

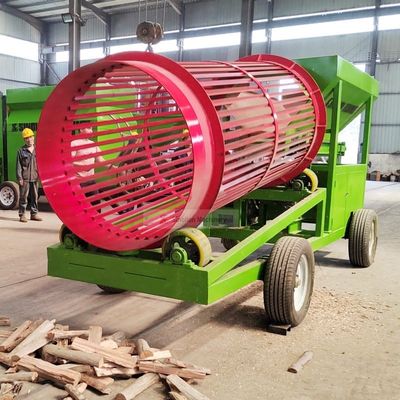

Portable Firewood Operations Trommel Screen Rotary Drum Screen For Sale
Application
The wood often comes with bark, sawdust, mud, dirt and small pieces of wood. our firwood tumbler can clean this debris from the wood. It would be good to include a secondary screen to separate dirt from the smaller pieces of wood, the small pieces of wood can be sold as a separate product.
Features
Rotary firewood screener functions: configured for classification, screening, grading, washing Rotary firewood screener type: open type, closed type. Rotary firewood screener construction: carbon steel, stainless steel. Rotary firewood tumbler applications: widely used in compost, food waste, glass, wood mulch, organics, shredded plastic, topsoil, wood waste, ssphalt shingles, bark, municipal solid waste, chemical, coal, construction, gold mine, plastic, quarry, recycling, metallurgy, mineral-selecting industries, etc. Application of firewood tumbler: According to different sizing specification, the numbers of hierarchical level could be from one to four. Materials whose size is larger than the screen mesh of the last part will be discharged from the outlet. During the process of operation, its movement is slowly and steady and installation is simple, sometime no need any special foundation and could be placed on smooth ground or floor. It is the most commonly used classification device for refractory material, coal, river sand and mixture of sand and stone.
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |

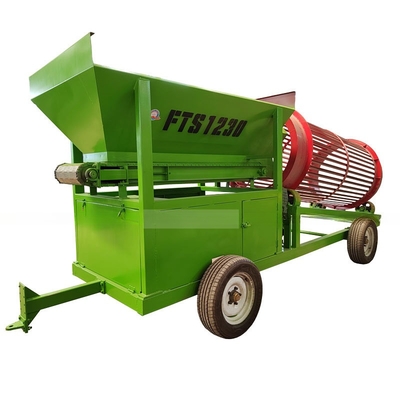

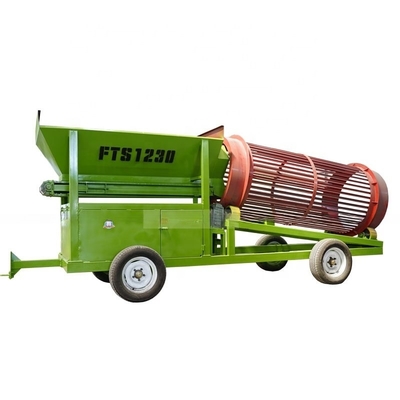

FTS1230 | 60 | 3.0 | 1200 | 3000 | 0-100 | ≤300 | 5613*1940*2390 |
Design and produce gravel trommel based on customer special requirement.
