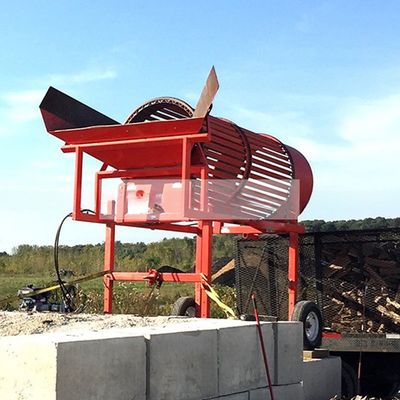

Discharge Size Customizable Small and Mobile Firewood Trommel Screen for Farms
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $12,700.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Farms | Showroom Location: | United Kingdom, United States, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor | Application: | Firewood, Firewood, Mulch, Organics, Bark |
| Weight: | 1900 KG | Warranty: | 1 Year |
| Product Name: | Small And Mobile Firewood Trommel Screen Manufacturer Price | Keywords: | Mobile Firewood Trommel Screen |
| Power: | 3-45kw | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
| Installation: | Supply Manual To Guide User | Capacity: | 60-90 Cubic Meter Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Green | ||
Product Description
Firewood trommel screen is suitable for particle classification process in various industries. The barrel of the drum sieve is made of wire mesh or steel plate punched holes. The barrel can rotate around a horizontal axis or a slightly inclined axis. The drum is rotated by a motor through a chain, gear or friction device. This new type of drum sieve utilizes the angle to make the material pass through the sieve and move forward in the sieve barrel. The material is brought to a certain height in the cylinder and then falls, which is beneficial to improve the screening efficiency. Drum sieve can also effectively prevent clogging.
Firewood screener specifications:
Features of soil screener:
1. Trommel Screen Mesh Material
2. Bearing and Bearing box
3. The Spindle is made of oil drilling rod material
4. The hub is made of thicken flat steel.
5. Motor and Reducer
6. The machine frame using national standard channel steel or square steel.
7. Inlet and outlet Design
8. Can be installed belt conveyor for undersize material all-in-one machine, conveying height can be up to 4.5 meters to 6 meters, which convenient for loading and move, will save space and save your installation cost.
9. The trommel screen can be equipped with remote control device.
10. Can be equipped with pumps for cleaning materials.
11. Can be equipped with diesel engine for non-electric users.
12. Can be equipped with cleaning screen mesh device to prevent the block problem of below 3mm mesh.
13. Can be installed heavy hopper for different loader (16, 20, 30,50 model) feeding.
14. Can be installed tyre easy to move.
15. Can be equipped with adjustable-speed motor or variable frequency motor used to adjust the trommel rotate speed to meet requirements of customers for different materials screening. Trommel screen rotate speed is 16-18r/min, maximum must < 30r/min or it will form centrifugal force.
16. In a word, one customer one request and the trommel screen will be different.
Trommel sieve screen could also used for sandstone, topsoil, compost, municipal solid waste recycling plant, glass, mulch, organics, bark, wood chips, construction waste, etc.
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
