Energy Mining Hot Mini Mobile Alluvial Gold Screening Placer Gold Washing Trommel Screen
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Sinolion |
Certification: | CE ISO |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $4,080.00/sets >=1 sets |
Packaging Details: | This mobile gold trommel screen 0519 will be processed to be rustproof and moisture proof before delivery.<br>20GP container or 40GP container<br>Equipment is packed with plastic wrap or steel case, depends on machine weight.<br>Motor is packed with steel |
Supply Ability: | 100 Set/Sets per Month gold miming trommel screening plant |
Detail Information |
|||
Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Mexico, Ukraine, Australia |
---|---|---|---|
Condition: | New | Type: | Gold Mining Trommel Screen |
Production Capacity: | 5-10tons/hour | Voltage: | 380V/415V/440V |
Dimension(L*W*H): | 3000*1000*1800 | Weight: | 520 KG |
Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Warranty Of Core Components: | 1 Year | Core Components: | Motor |
Key Selling Points: | Automatic, High Safety Level | Product Name: | Gold Mining Trommel Screen 0519 |
Application: | Alluvial Gold Washing | Keywords: | Automatic |
Installation: | Supply Manual To Guide User | Feeding Size: | Less Than 300mm |
MOQ: | 1Set | Color: | Yellow,white,fed,blue,gray( Or As Client Request) |
Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description

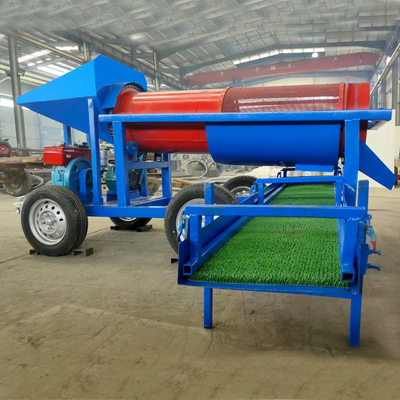

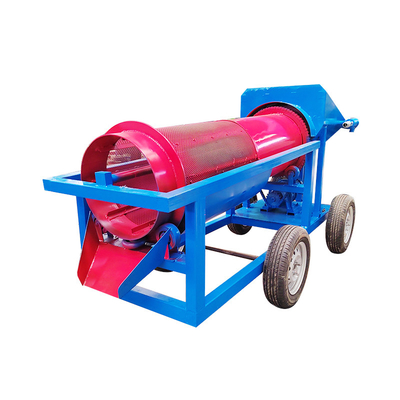

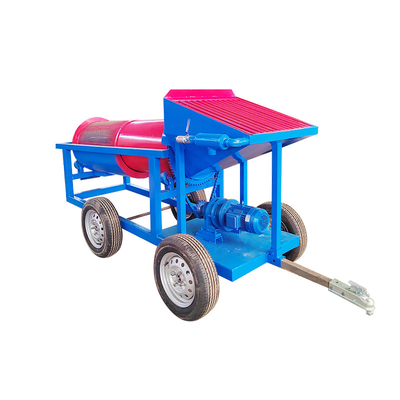

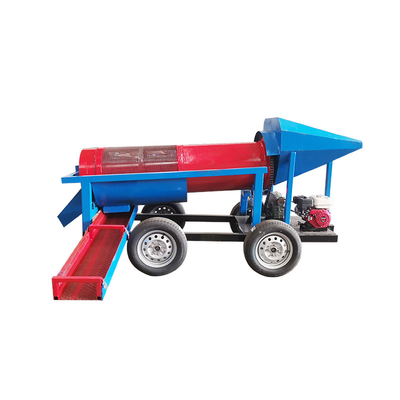

Hot Selling Mini Mobile Alluvial Gold Screening Placer Gold Washing Gold Trommel Screen

Characteristics of mobile alluvial gold trommel screen machine:
The mobile mini alluvial gold wash plant machine is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.

The mobile mini alluvial gold wash plant machine is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.
The first section of mini gold trommel is l 910mm steel drum, the second section is 840mm with manganese wire mesh, aperture 5mm,while the third section steel reel 160mm,Round steel diameter 10mm, small opening 50mm, tire diameter , four tires, one axle. It is equipped with HONDA diesel engine, with reducer, chain, leg, roller. The width of the discharge tank is 400mm and the length 1500mm contains gold panning grass.



Model | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
GMTS0519 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |

Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of briquette equipment, stone crusher and screening equipment.After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with coal research institutions and other research departments, Sinolion has continuously improved product values and performance. Now, 10, 000-300, 000 tons briquette production lines are renowned in domestic and foreign markets, and Sinolion products have been exported to Serbia, The United Kingdom, Turkey, Malaysia, Indonesia, Kazakhstan, Vietnam, North Korea, Egypt, Mexico, Ghana and other countries and regions.

Customer Visit

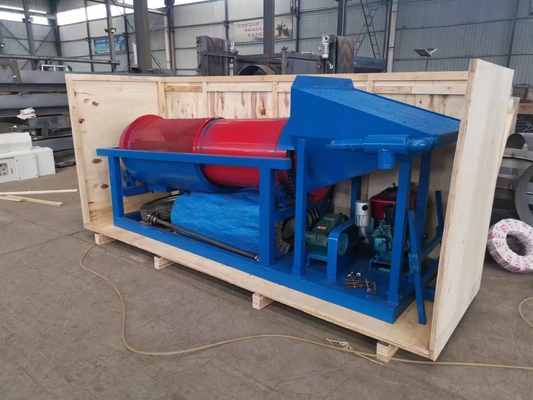

Packing & Delivery
