Rotary Type Wood Chips Trommel Screen Efficiently Screen Firewood for Energy Mining
Product Details:
Place of Origin: | China |
Brand Name: | sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $13,100.00/sets 1-1 sets |
Detail Information |
|||
Applicable Industries: | Building Material Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | United States, None |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
Core Components: | Motor | Condition: | New |
Type: | Circular | Application: | Ore, Waste, Mulch, Organics, Bark, MSW, Building Waste |
Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
Weight: | 2200 KG | Warranty: | 1 Year |
Product Name: | Rotary Type Biomass Wood Chips Trommel Screen Firewood Garbage Trommel | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
Power: | 3-45KW | Dimension: | According To Capacity |
Installation: | Supply Manual To Guide User | Capacity: | 50-500 Tons Per Hour |
Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description

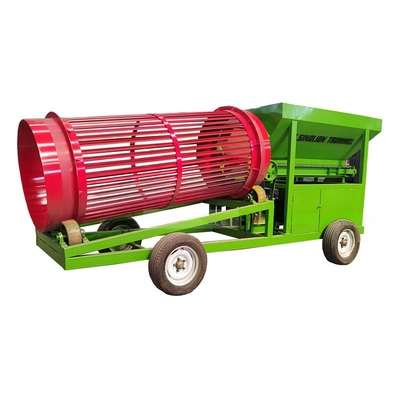

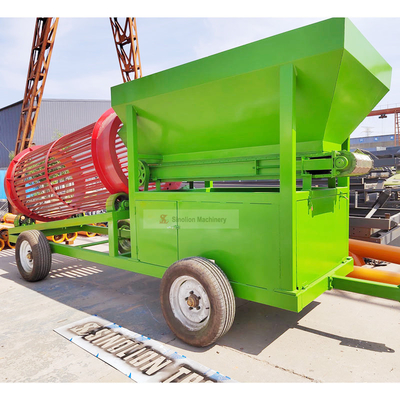

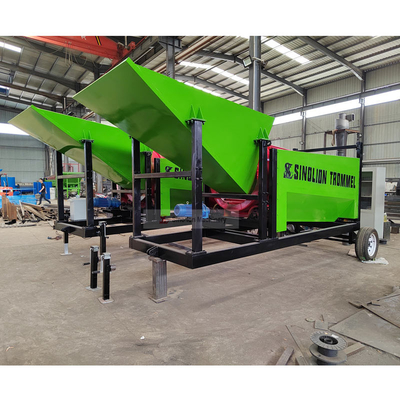

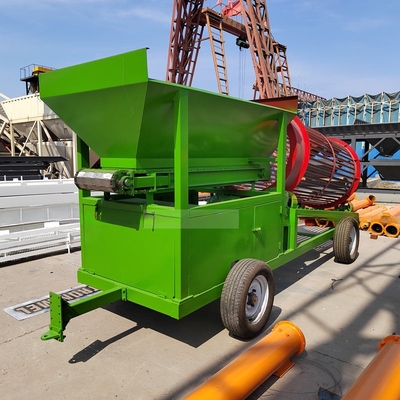

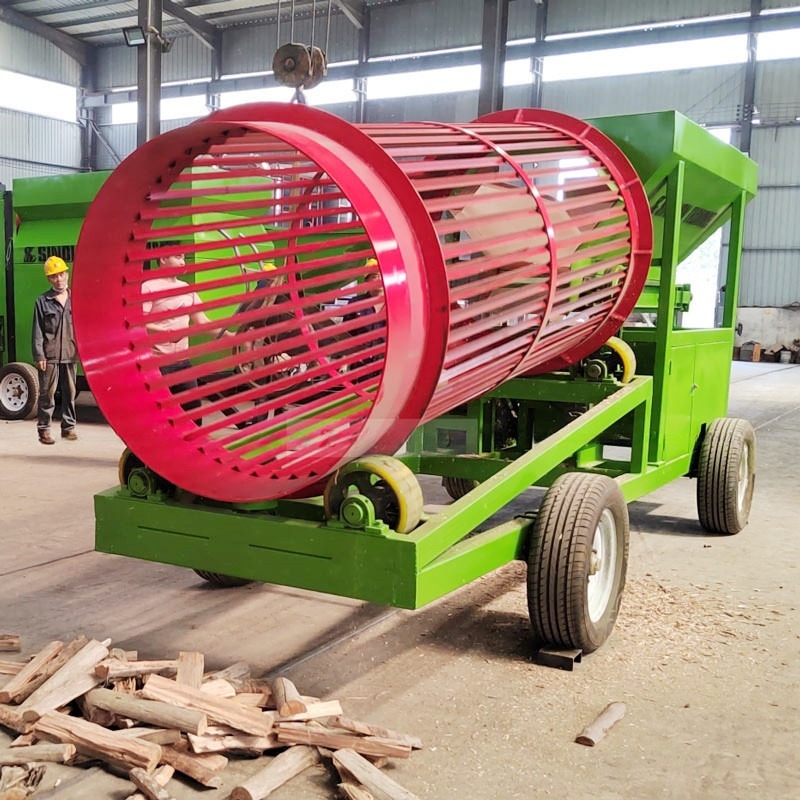

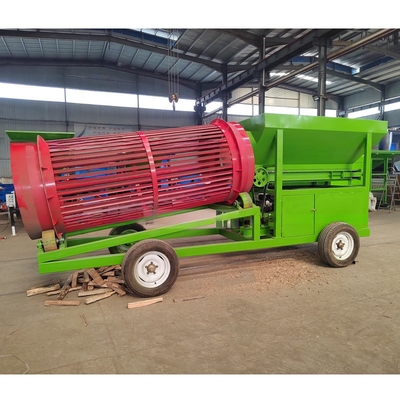

Rotary Type Biomass Wood Chips Trommel Screen Firewood Garbage Trommel
Application
The gravel trommel is made up of five main parts: central drum, rack, funnel, reducer, motor and so on. Is a more traditional screening equipment. After the material crushed by the crusher enters the roller sieving machine, the material can be screened evenly by centrifugal force and jigging of the center drum. Depending on different mesh screen mesh to screen materials one by one. Sieved out different specifications of stone and then passed through the chute into the belt conveyor to transport to the finished material yard. The gravel trommel simple structure, very smooth operation, can add dust cover. After adding dust shield, it has good sealing property, low noise and quick screen changing. The gravel trommel has the advantages of fine classification, large separation ratio, high yield, accurate separation and low failure rate. The gravel trommel machine is especially suitable for screening and grading use in stone plant.
Features
Simple structure, large workload, durable, low production cost, convenient maintenance and many other advantages, processed sand, stone and other mixing materials automatic separation, is an ideal material for building, highway, cement building preform and other manufacturers.
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |
FTS1230 | 60 | 3.0 | 1200 | 3000 | 0-100 | ≤300 | 5613*1940*2390 |
Design and produce gravel trommel based on customer special requirement
