• Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding
  • Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding
  • Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding

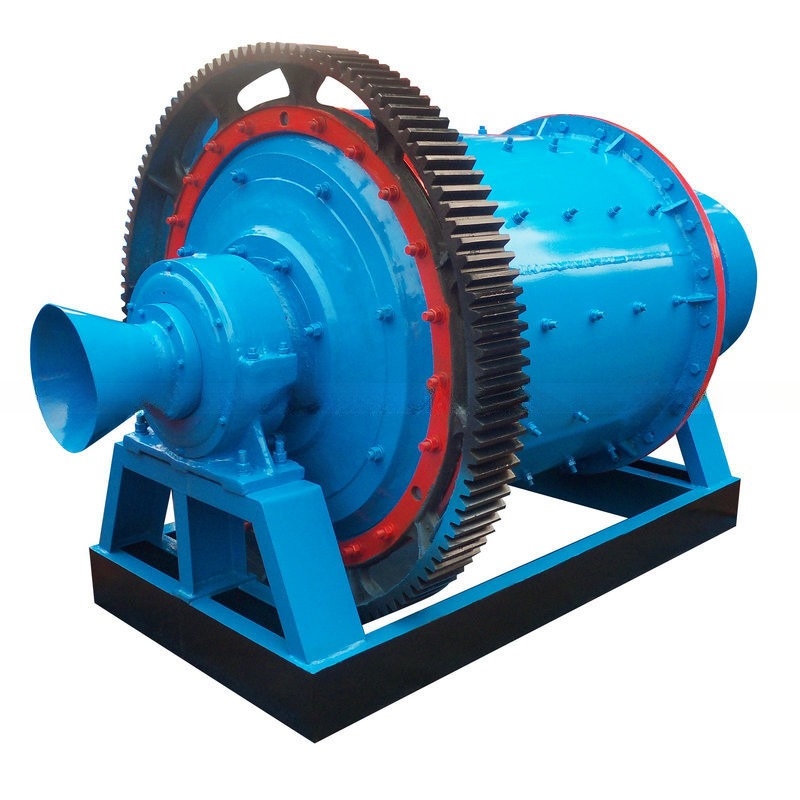

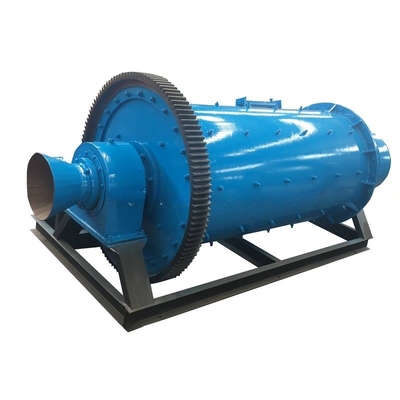

Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding

Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding

Product Details:

Place of Origin: China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $2,686.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Output (kg/h): 0.65 - 29 Material: Other
Application: Fe2O3 Condition: New
Type: Pulverizer Product Type: Pigment Grinding Mill
Voltage: As Request Dimension(L*W*H): Based On Different Model
Weight (KG): 36000 KG Warranty: 2 Years
Key Selling Points: High-accuracy Applicable Industries: Energy & Mining
Showroom Location: None Marketing Type: New Product 2020
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Liner: High Manganese, Rubber, Ceramic(as Client Request) Spare Parts: Liner, Grinding Balls, Grinding Media
Grinding Material: Calcium Carbonate Operation: Automatic Or Manual
After Sale Service: The Whole Using Life Grinding Way: Wet Type Or Dry Type Or Batch Type
Bussiness Type: Pigment Grinding Mill Including: Gearbox, Gear, Pinion, Liner, Manual, Bearing, Specifications
Color: Yellow, White, Red, Blue, Gray( Or As Client Request) Power: 15-475KW

Product Description

Product Description



Wet dry ball mill importer application range :

The ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.



Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.



Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 0



Grinding is the last stage in the process of communication; in this stage the particles are reduced by a communication of impact and abrasion, either dry or in suspension in waterBall mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. It is performed in rotating cylindrical steel vessels known as tumbling mills.



Wet dry gold ball mill for sale technicial parameters:



Model

Rotation speed

(r/min)

Weight of

grinding media

(ton)

Size of feed opening

(mm)

Discharge size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(T)

Φ 900x1800 38 1.5 ≤ 20 0.075-0.89 0.65-2 18.5 3.6
Φ 900x3000 38 2.51 ≤ 20 0.075-0.89 1.1-3.5 22 4.6
Φ 1200x2400 32 3.8 ≤ 25 0.075-0.6 1.5-4.8 30-45 12.5
Φ 1200x3000 32 5 ≤ 25 0.074-0.4 1.6-5 30-45 12.8
Φ 1200x4500 32 7 ≤ 25 0.074-0.4 1.6-5.5 55 13.8
Φ 1500x3000 27 8 ≤ 25 0.074-0.4 2-5.8 75-90 17
Φ 1500x4500 27 14 ≤ 25 0.074-0.4 3-6.5 110 21
Φ 1500x5700 27 15 ≤ 25 0.074-0.4 3.5-8 132 24.7
Φ 1830x3000 24 11 ≤ 25 0.074-0.4 4-10 180 28
Φ 1830x6400 24 23 ≤ 25 0.074-0.4 6.5-15 210 34
Φ 1830x7000 24 25 ≤ 25 0.074-0.4 7.5-17 245 36
Φ 2200x5500 21 30 ≤ 25 0.074-0.4 10-22 370 48.5
Φ 2200x6500 21 31 ≤ 25 0.074-0.4 14-26 280 52.8
Φ 2200x7500 21 33 ≤ 25 0.074-0.4 15-29 475 56





Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 1Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 2Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 3



Ball miller machine:

Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 4

Packaging & Shipping

 Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 5



Working site

 Ball mill machine working site of Zhengzhou Sinolion:



Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 6Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 7



Our Services


1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).

2) Welcome to visit us at any time, we will pick you up.



2. Sale service:

1) Keep clients updated when our company gets advance payment.

2) Confirm production details with clients.

3) Take photos and send all pictures to customers during production.

4) Inspection and testing the product before delivery;

5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.

6) logistics service if needed.



3. After Sale service:

1) Provide foundation drawing to the clients for installation.

2) Besides, our engineers are available to help with installation and workers training.

3) Repairing and maintenance if any problem during the warranty.

4) Spare parts and wearing parts will be offered with production cost in 10 years.


Company Information

 Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 8

Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 9

 Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 10

 Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 11Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 12Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 13Small Mini Laboratory Fe2O3 Iron Oxide Pigment Grinding Mill with Wet Dry Grinding 14

FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.



Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.



Question 3: Do you have client in my country?

Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan,  Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc



Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
