Product Details:

Place of Origin: China
Brand Name: Sinolion
Certification: CE ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: Canada, United States, France, Colombia, South Africa, Nigeria
Condition: New Type: Gravity Separator
Production Capacity: 5-10t/h Voltage: 220V/380V
Dimension(L*W*H): 3000*1000*1910520 Weight: 520 KG
Warranty: 1 Year Marketing Type: Hot Product 2022
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Gear, Engine
Key Selling Points: Easy To Operate, Sustainable Product Name: Mobile Gold Trommel Screen
Application: Gold Mining Feeding Size: Less Than 300mm
Dimension: According To Capacity Installation: Supply Manual To Guide User
Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel Discharge Size: As Request
Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 0
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 1
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 2

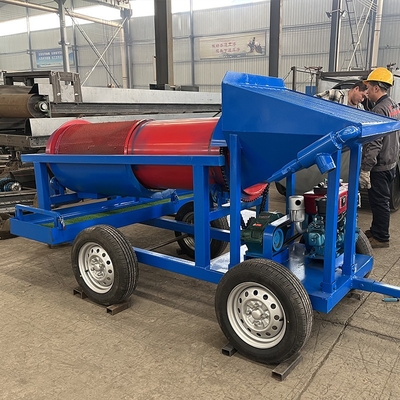

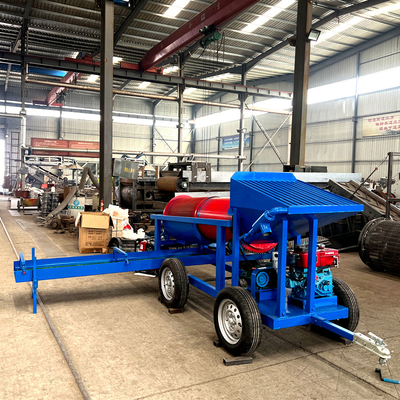

Mobile Gold Mining Equipment Manufacturers Gold Wash Plant Mini Small Gold Trommel Screen
Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Its Working Principle Is To Control The Size Of Particle Size To Control The Separation Of Waste, Thus Improving The Separation Efficiency. The Advantages Of Small Trommel Screen Are Obvious, And It Is More Flexible And Convenient Than Large-scale Mobile Screen In Terms Of Movement. Trommel Screen Internal Equipment, The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 3
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 4
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 5

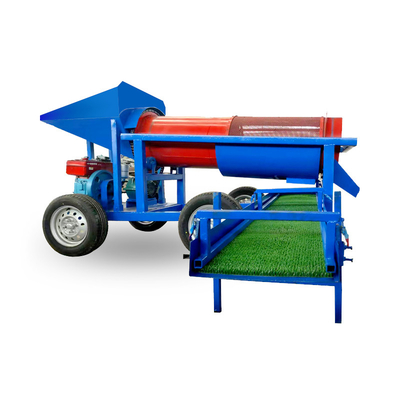

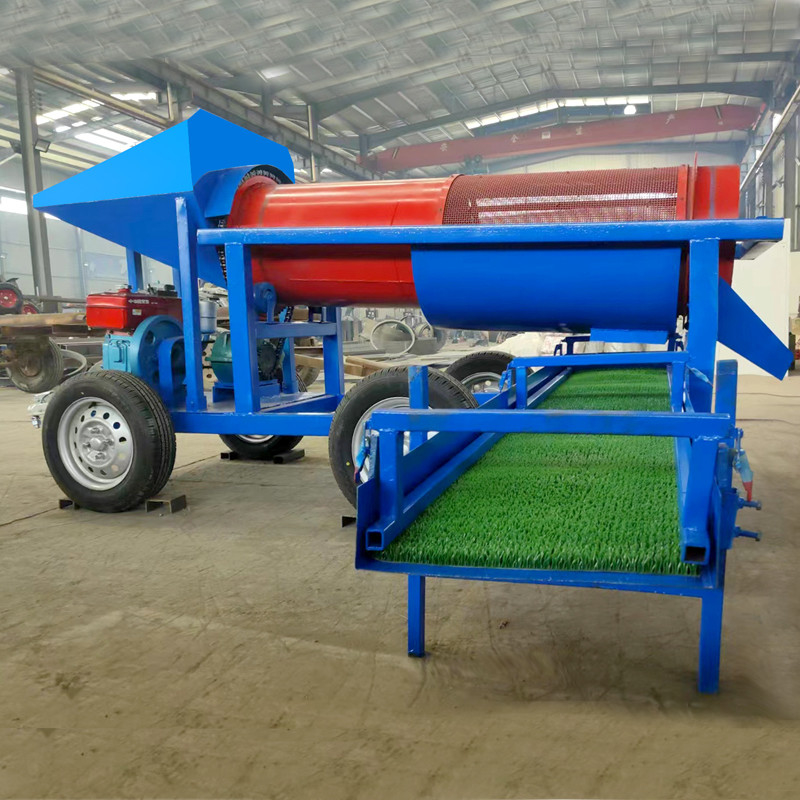

Structure and Principle

The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper.
2. Selection And Cleaning Of Raw Materials Raw Materials Of The Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel.

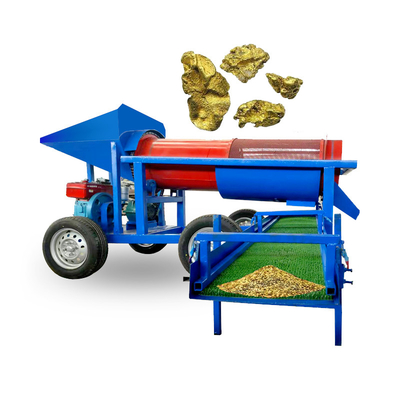

3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 6
Product Name
Gold Trommel Screen
Model
GMTS0519
Capacity (t/h)
5-10
Power(kw)
1.5
Diameter(mm)
500
Length(mm)
1910
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 7
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 8
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 9
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 10
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 11
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 12
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 13
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 14
220V/380V Voltage Gold Mining Equipment Mini Gold Wash Plant with Small Trommel Screen 15
