920 KG Capacity Mobile Small Scale Gold Wash Plants Trommel Screen in Different Models
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Other, Other | Showroom Location: | Canada, United Kingdom, United States, Italy, UAE, Colombia, South Africa, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor, PLC, Gearbox, Motor | Condition: | New |
| Type: | Gravity Separator, Gold Trommel Screener | Application: | Gold Mining, Gold Mining |
| Voltage: | 380V/415V/440V( As Client Request), 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 920 KG | Warranty: | 1 Year |
| Product Name: | Mobile Gold Trommel Screen | Keyword: | Mobile Trommel Screen |
| Power: | 4kw | Screen Aperture: | 5mm |
| Capacity: | 5-10 Tons Per Hour | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description
Product Description
The separation principle of alluvial gold is to use gravity separation to recover the most of gold and its associated heavy
minerals from the raw ore first, and then use gravity separation, flotation, amalgamation, magnetic separation, electric separation and other combined actions to separate gold and heavy minerals from each other to achieve the purpose of comprehensive recovery.
The mobile gold washing plant is a kind of gold equipment which can be moved on land. It has the characteristics of compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable operation, easy maintenance and convenient operation.We has been exported to Sudan, Africa, North Korea, Tanzania, Ghana etc.
Trommel screen provides a simple, efficient and economical solution to upgrade a wide rang of material, and optimize the
subsequent process steps of recovery. This method of screening helps not only to reduce manual operation and investment, also increase product grade, while allows rapid and large volume processing. Trommel screen is designed for processing alluvial gold mine, river placer sand gold, diamond etc.
subsequent process steps of recovery. This method of screening helps not only to reduce manual operation and investment, also increase product grade, while allows rapid and large volume processing. Trommel screen is designed for processing alluvial gold mine, river placer sand gold, diamond etc.
The alluvial gold mining equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein. It can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.
This mobile trommel machine normally works together with sluice box , gold centrifugal concentrator and shaking table to form a complete ore concentration plant. It has been widely used for alluvial gold, placer gold, tantalite, niobite, and tin ore
concentration. It is very popular in Africa, Asia, South America due to its easy to move and easy operation, low cost.
This mobile trommel machine normally works together with sluice box , gold centrifugal concentrator and shaking table to form a complete ore concentration plant. It has been widely used for alluvial gold, placer gold, tantalite, niobite, and tin ore
concentration. It is very popular in Africa, Asia, South America due to its easy to move and easy operation, low cost.

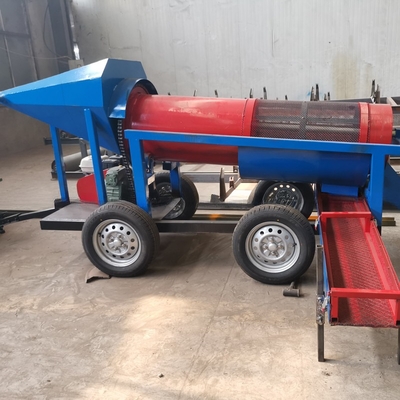

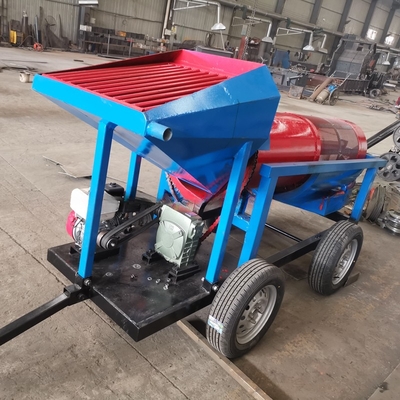

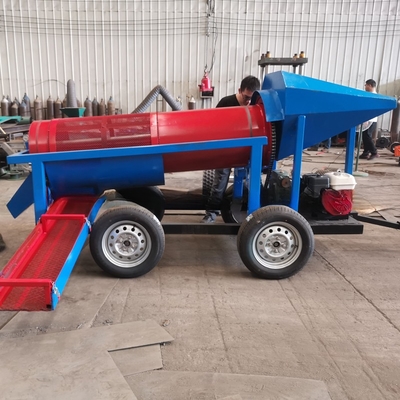

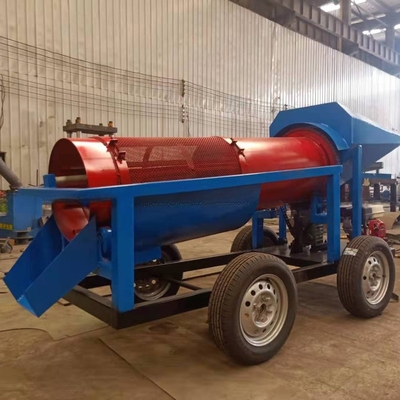

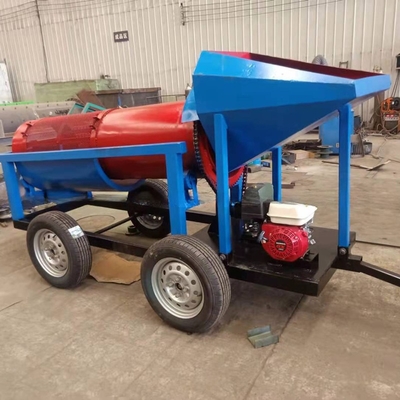

Mobile gold trommel screen is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.
The first section of mini gold trommel is l 910mm steel drum, the second section is 840mm with manganese wire mesh, aperture 5mm,while the third section steel reel 160mm,Round steel diameter 10mm, small opening 50mm, tire diameter , four tires, one axle.

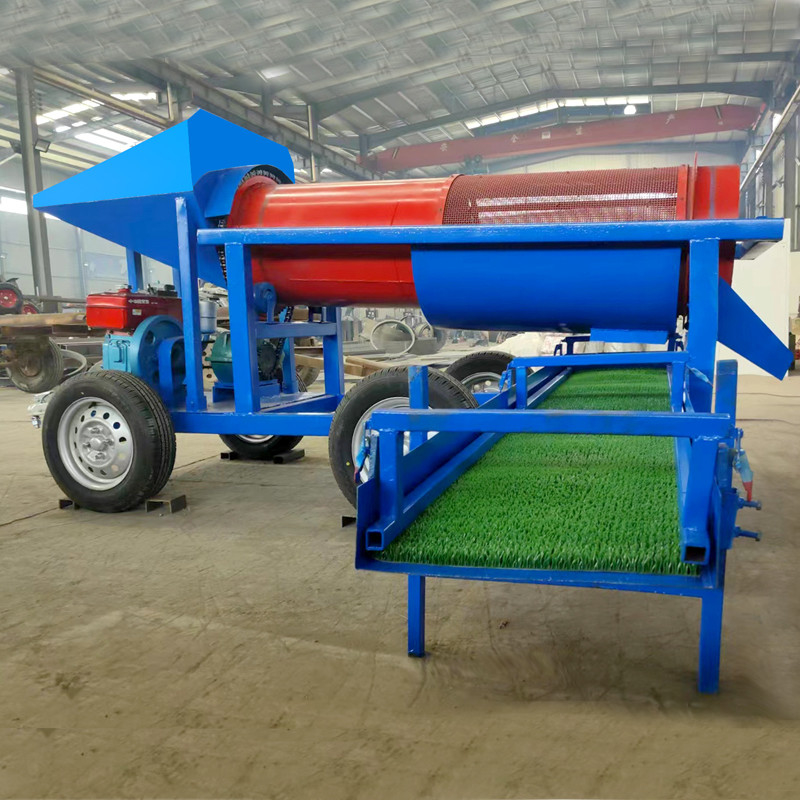

It is equipped with HONDA diesel engine, with reducer, chain, leg, roller. The width of the discharge tank is 400mm and the length 1500mm contains gold panning grass.
Sinolion offers turnkey solutions for 5-300 tph Gold Mining Equipment. We are one of the leading project suppliers. Gold Washing Plant and we work closely with our customers to fulfill their specific needs for a customized packaged solution. Specialized in the fabrication of these machines for 30 years and this enables us to be in a leading position in the field of Mining Equipment-Gold Washing Plant.
Main technical parameter
Model | Capacity (t/h) | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
GMTS0519 | 5-10 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |
GMTS1020 | 10-30 | 10-30 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
GMTS1225 | 30-50 | 30-50 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
GMTS1548 | 80-150 | 80-150 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
GMTS1848 | 100-200 | 100-200 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
GMTS2060 | 200-350 | 200-350 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
