5-10t/h Voltage 220V/380V Gold Mining Scrubber Rotary Drum Wash Plant with Small Size
Product Details:
Place of Origin: | China |
Brand Name: | Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $4,080.00/sets 1-1 sets |
Detail Information |
|||
Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Germany, Russia, Colombia, South Africa, Nigeria |
---|---|---|---|
Condition: | New | Type: | Gravity Separator |
Production Capacity: | 5-10t/h | Voltage: | 220V/380V |
Dimension(L*W*H): | 3000*1000*1910mm | Weight: | 520 KG |
Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Pressure Vessel, Engine |
Key Selling Points: | Easy To Operate, Easy To Operate | Product Name: | Mobile Gold Trommel Screen |
Feeding Size: | 0-100mm | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
Gold Chute: | 350*1500mm | Factory Visit: | Welcomed Warmly |
Middle: | 10-50mm | Keywords: | Alluvial Gold Washing Plant |
Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Installation: | Supply Manual To Guide User |
Product Description

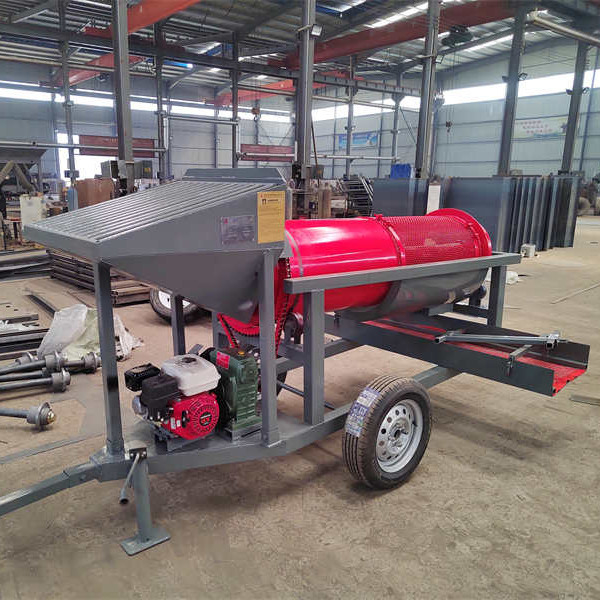

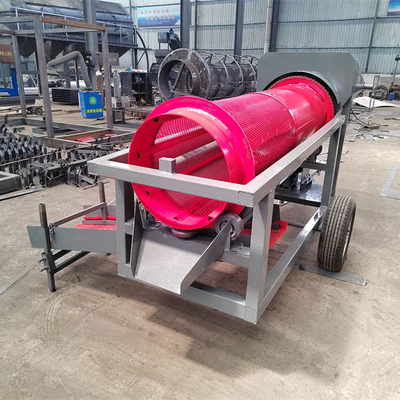

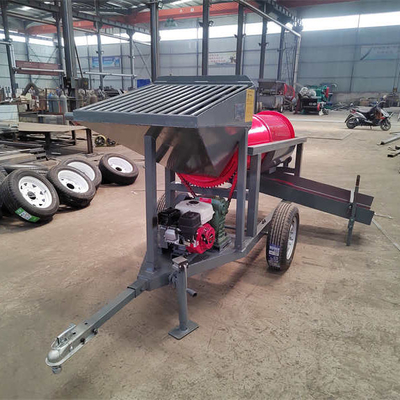

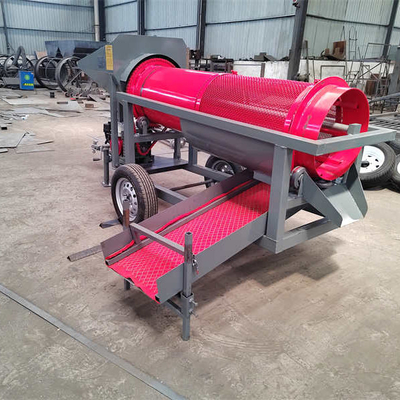

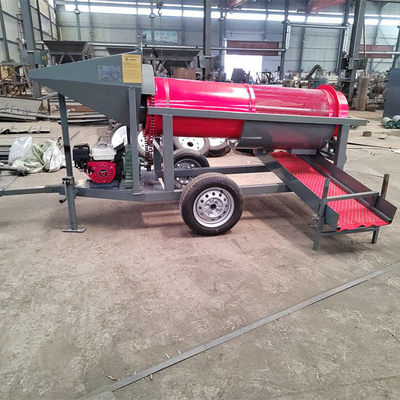

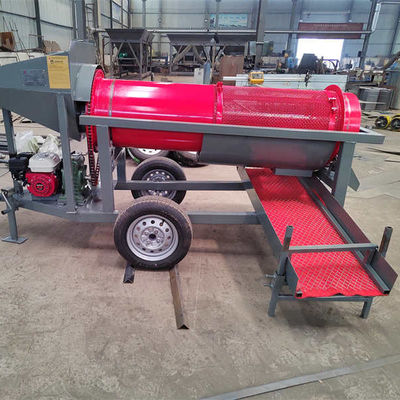

Gold Mining Small Rotary Drum Trommel Wash Plant Gold Mining Scrubber Rotary
Small and Portable gold wash plant with trommel is a more flexible and cheaper gold washing solution, it can fully Customizable & moveable. This small machine can equip with the sluice box, gold centrifugal concentrator, shaker table, gold trommel, and other washer like sand washing machine. Also, vibrating feeders, vibrating screen, pumps, and other portable mining equipment can followed according to different conditions.
Structure and Principle
The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.
1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper.
2. Selection And Cleaning Of Raw Materials Raw Materials Of The Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel.
3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Product Name | Model | Capacity (t/h) | Power(kw) | Diameter(mm) | Length(mm) |
Mobile trommel screen | GMTS0519 | 5-10 | 1.5 | 500 | 1910 |
