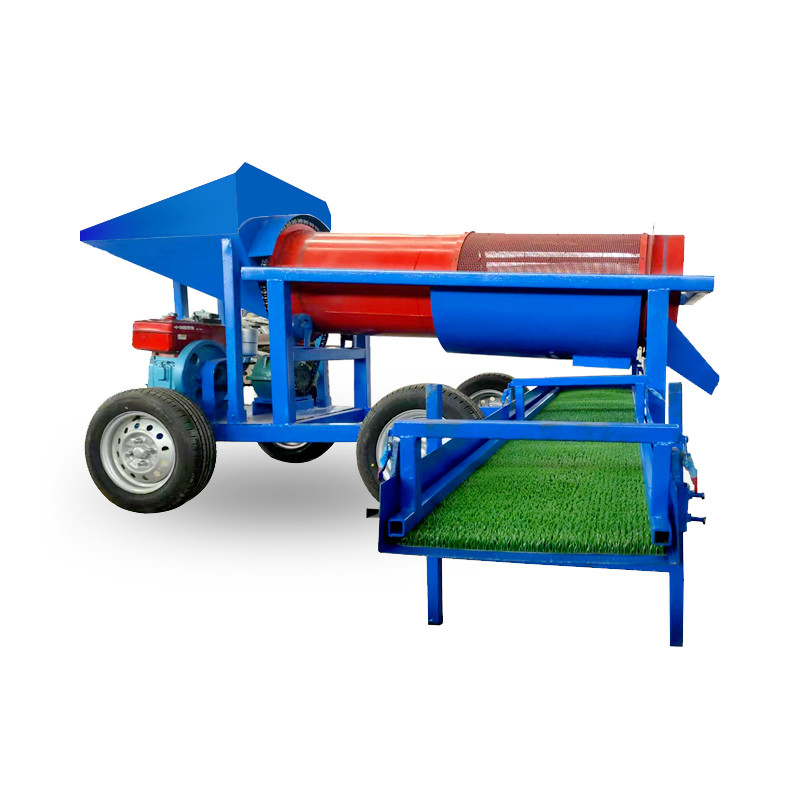

• Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine
  • Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine
  • Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine
  • Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine
  • Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine
  • Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine

Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00/sets 1-2 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: Canada, United States, Italy, Brazil, Peru, Mexico, Russia, Kenya, South Korea, Chile, Romania, Nigeria, Australia
Condition: New Type: Gravity Separator
Production Capacity: 98% Voltage: 380V/415V/440V( As Client Request)
Dimension(L*W*H): As Per Different Model Weight: 520 KG, 520kg
Warranty: 1 Year Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Gearbox
Key Selling Points: Gold Mining Trommel Keywords: Alluvial Gold Washing Plant
Model: Petrol Engine Trommel Screen For Alluvial Gold Wash Plant Product Name: Gold Mining Rotary Drum Screen
Power: 1.5KW Capacity: 5-10 Tons Per Hour
Gold Chute: 350*1500mm Maximum Size: 100mm
Tire Diameter: 500mm-650mm Middle: 10-50mm

Product Description

Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 0
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 1

Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Small Trommel Screen is More Flexible And Convenient Than Large-scale Mobile Screen.

The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.

It has the following characteristics:
1. Smooth operation and low noise;
2. Simple structure, maintenance Convenient;
3. The screen holes are not easy to block;
4. The screening efficiency is high;
5. The screen has a long service life and is easy to replace.

Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 2
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 3
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 4
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 5
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 6
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 7

Operation Principle

The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.

Operation Process

1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper.

2. Selection And Cleaning Of Raw Materials Raw Materials Of TheTrommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel.

3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 8
Product Name
All the Models of Gold Trommel Screen
Model
GMTS0519
GMTS1020
GMTS1225
GMTS1548
GMTS1848
Capacity (t/h)
5-10
10-30
30-50
80-150
100-200
Power(kw)
1.5
4
5.5
11
15
Diameter(mm)
500
1000
1200
1500
1800
Length(mm)
1910
2000
2500
4800
4800
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 9
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 10
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 11
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 12
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 13
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 14
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 15
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 16
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 17
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 18
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 19
Maximum Size 100mm Mobile Gold Mining Rotary Drum Screen with Gasoline or Diesel Engine 20
