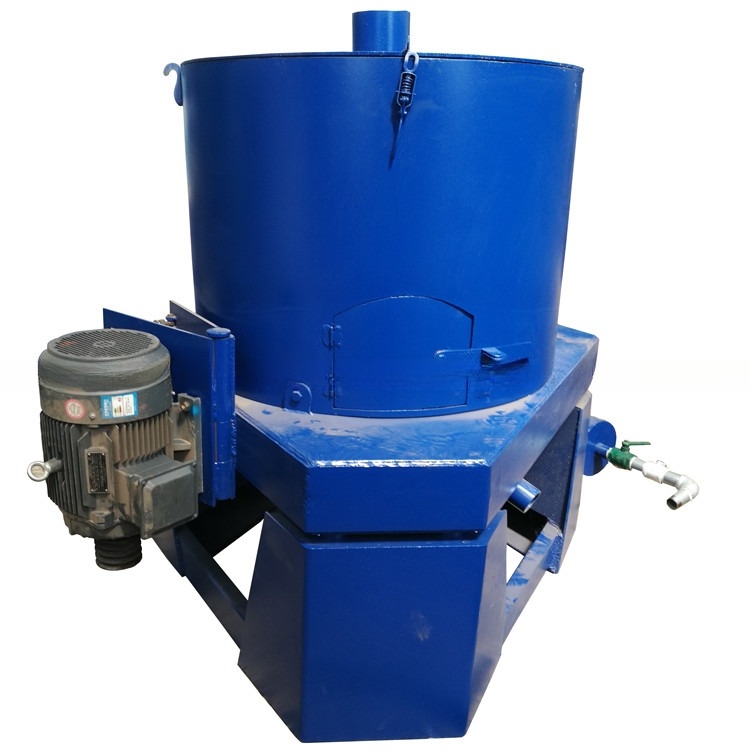

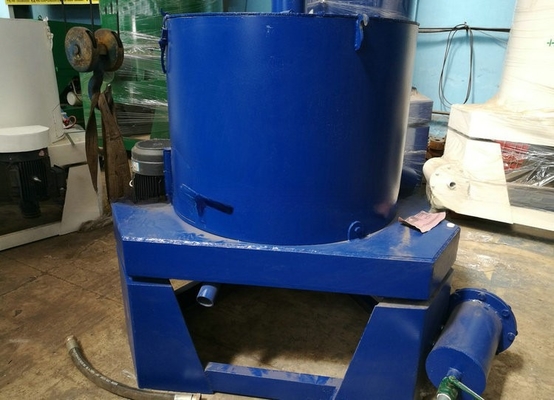

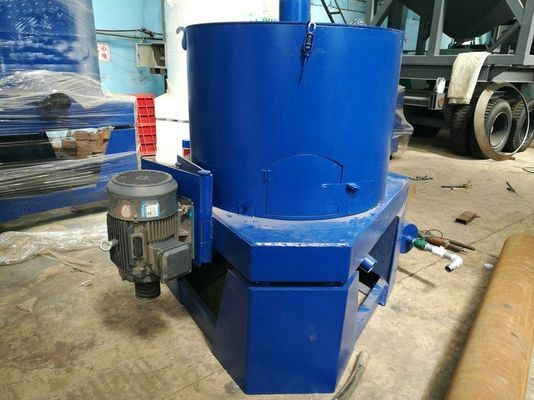

STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale

STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale

Product Details:

Place of Origin: China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $2,800.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Gravity Separator
Production Capacity: Above 99% Voltage: 380V/415V/440V( As Client Request)
Dimension(L*W*H): 1180*1140*1250mm Weight: 400 KG
Warranty: 24 Months Excluding Spare Parts Marketing Type: New Product 2020
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Key Selling Points: Automatic Model Number: Knelson Gold Centrifugal Concentrator
Application: Tin, Gold Sand, Fine Alluvial River Gold, Vein Gold, Tantalum, Niobium Material: Stainless Steel Or Polyurethane Or Carbon Steel Or Manganese Steel
Feeding Size: 0-5mm Feeding Density: 0-50%
Gold Centrifugal Concentrator Capacity: 1-80 Tons Per Hour Concentrate Weight: 2-80kg Per Time
Gold Concentration Cleaning Pp Cycle: 1-6 Hours Installation: Send Video, CAD Drawing, And Dispatch Engineer
Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Product Description

Gold centrifugal concentrator is kind centrifugal concentration equipment for gold. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.  Centrifugal concentrator can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings. Fivemodels are available. Application shows that the recovery can be as high as 99%, especially for the case in recovering the natural gold in lode ore with 65% of the ore having a milling size of 0. 074mm, the recovery for the natural gold is expected up to 98%. For those natural gold of 0.004mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours, and the upgrade ratio is up to 1,000 times. The equipment is patented in China.



STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 0



Main Features of Gold Centrifugal Concentrator:

1) High recovery rate: Through our test, the recovery rate for placer gold can be 99% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 7mm.

2) Easy to install: Only a small leveled place required. It's a full line machine, before starting it, we only need to connect the water pump and power.

3) Easy to adjust: There are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.

4) No pollution: This machine only consumes water and electric power, and exhaust tailing and water. Low noise, no chemical agent involved.

5) Easy to operate: After finishing the water pressure and feeding size adjust, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine)



STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 1

STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 2

STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 3 STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 4



Specifications
Model STLB20 STLB30 STLB60 STLB80 STLB100
Feeding capacity(t/h) 0-0.6 2-3 8-12 35-45 70-80
Fluidization water required(m3/h) 2-3 3-5 7-10 30-36 55-80
Slurry Water Required(m3/h) 1.5-4 5-7 8-12 35-50 70-120
Feeding Density(%) 0-50 0-50 0-50 0-50 0-50
Feeding size(mm) 0-3 0-3 0-5 0-5 0-5
Concentration Cleaning Up Cycle Vein gold 1-3 Hours Placer gold 2-6 Hours
Concentrate weight(kg) 2 10-20 30-40 60-70 80-90
Power (KW) 0.75 1.5 4 11 22
Approximate shipping weight(Kg) 145 400 1000 1500 2000
Approximate shipping dimensions (mm) 790x785x790 1180x1140x1250 1970x1670x1750 2300x1800x2200 2400x2000x2300

STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 5STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 6

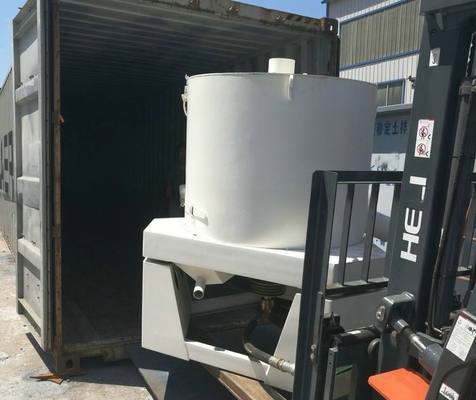

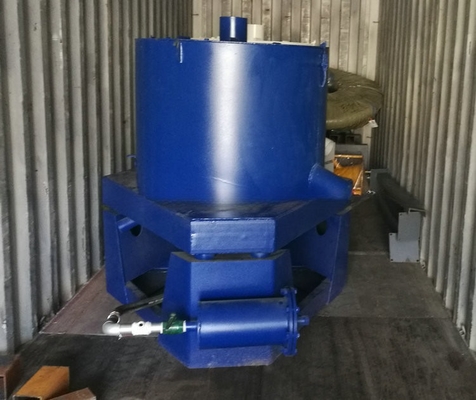

Packaging & Shipping



Standard export packing, Spare parts in wooden case, big machines loaded in container, large machines use nude packing, cover with plastic cloth. We export through Qingdao Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.



STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 7STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 8

Company Information

 STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 9STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 10STLB30 Gravity Knelson Centrifugal Concentrator for Placer Gold Mining in Small Scale 11

Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech company which professional manufacturing the production of briquette equipment, stone crusher and screening equipment.After 30 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise.
FAQ

Q1: Are you trading company or manufacturer?

A: We are factory.



Q2: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.



Q3: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.



Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.

What minerals are you separating?

What's the maximum size of your raw minerals?

How much capacity do you need per hour for your project?
