Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity

Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity

Product Details:

Place of Origin: Henan, China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $5,310.00/sets 1-1 sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. <br>Motor is packed
Supply Ability: 40 Set/Sets per Month coke trommel screen
Get Best Price Contact Now

Detail Information

Applicable Industries: Building Material Shops, Construction Works , Energy & Mining Showroom Location: Canada, United States, Brazil, Mexico, Russia, Kenya, South Africa, Nigeria, Australia
Condition: New Type: Gravity Separator
Production Capacity: 98% Voltage: 380v/415v/440v
Dimension(L*W*H): Depends On Models Weight: 520 KG
Warranty: 1 Year Marketing Type: New Product 2020
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Gear, PLC, Pressure Vessel, Engine, Gearbox
Key Selling Points: Automatic Power: 3KW
Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel Dimension: According To Capacity
Installation: Supply Manual To Guide User Capacity: 5-10 Tons Per Hour
Feeding Size: Less Than 300mm Discharge Size: As Request
Color: Yellow, White, Red, Blue, Gray( Or As Client Request) Product Name: Gold Mining Equipment Gold Wash Plant Mini Trommel Screen For Sale
Keywords: Gold Mining Equipment Port: Qingdao, Dalian, Tianjin, Lianyungang, Dalian, Shanghai, Guangzhou( As Client Request)

Product Description

Gold mining equipment gold wash plant mini trommel screen manufacturer

Product Description

The mini gold screen equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.



Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity 0

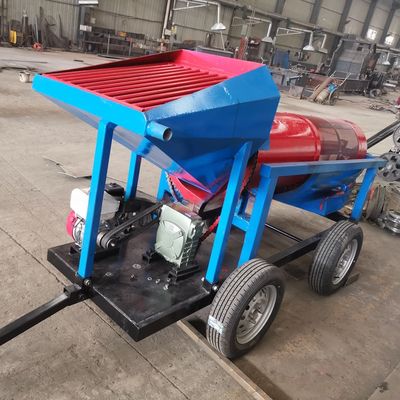

Placer gold trommel is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.



The first section of mini gold trommel is l 910mm steel drum, the second section is 840mm with manganese wire mesh, aperture 5mm,while the third section steel reel 160mm,Round steel diameter 10mm, small opening 50mm, tire diameter , four tires, one axle.

It is equipped with HONDA diesel engine, with reducer, chain, leg, roller. The width of the discharge tank is 400mm and the length 1500mm contains gold panning grass.





Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity 1



Characteristics:

1.Complete screen self cleaning function
2. The machine can effectively control the screening size function, can achieve high precision screening, to achieve the best screening effect.
3. The outlet of the machine can be adjusted arbitrarily. Sieve out of the material can be directly discharged, suitable for automated operations.
4. Simple structure, convenient installation, light weight; Reliable operation, long life; Low power consumption.
5. The screen mesh is not blocked, no flying powder, no leakage, fully sealed structure, environmental protection.
6. Fine powder, particle and liquid can pass through without blocking.
7. The cylinder is made of thick stainless steel, with long service life



Technical Parameters
SPECIFICATIONS OF PORTABLE MOBILE GOLD WASH TROMMEL
Model GTS-500x1900
Drum Diameter 500mm
Drum Length 1900 mm
Gearbox WPS-100-20
Towing Hook Include
Tires Size 165/70RB
Rubber Tires Quantity 4 pieces
Spray Pipe Diameter 42mm
Spray Pipe Material Galvanized seamless pipe
Capacity 5-10 tons/hour
HONDA Gasoline Engine Main Power:5.5HP
Start method: Manual pull
Gasoline load: 0.58L
Gold Chute 350*1500mm
Angle adjustable 2-8°
Grizzly Steel bard diameter 20mm
Bar spacing 50mm
Input hopper: 0.5m³



Product Details

Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity 2Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity 3

Packaging & Shipping

Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity 4

Company Information

Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity 5Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity 6Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity 7

Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity 8

Customer

Gold Mining Equipment Gold Wash Plant Mini Mobile Trommel Screen According to Capacity 9

FAQ

Q1: How long is the delivery time
A: Normally within 7-10days



Q2: What is the driving force
A: Japan HTC Gasoline Engine



Q3: How long is the warranty period
A:One year



Q4: Do you have a certificate of origin, EU certification, etc.
A: yes, of course



Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
