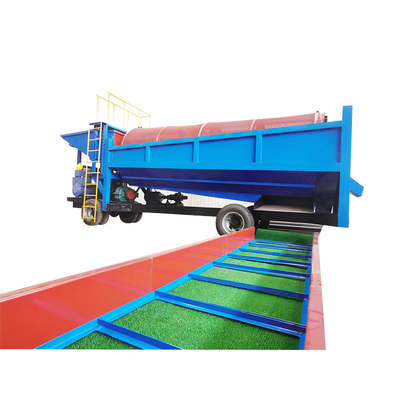

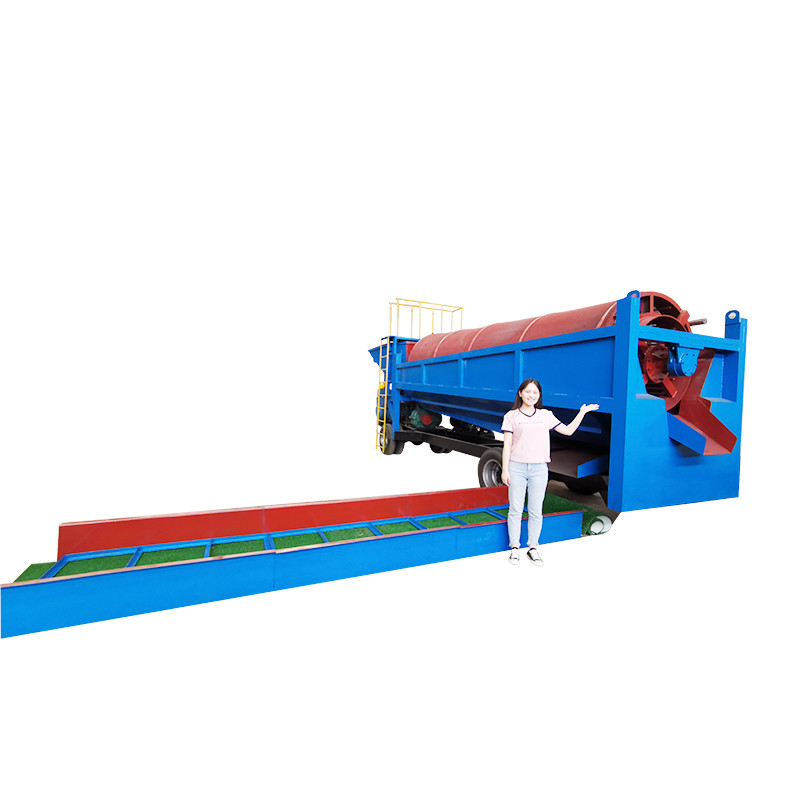

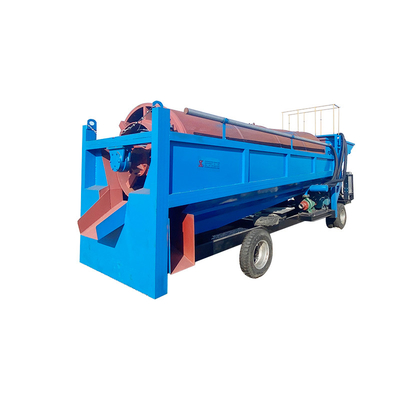

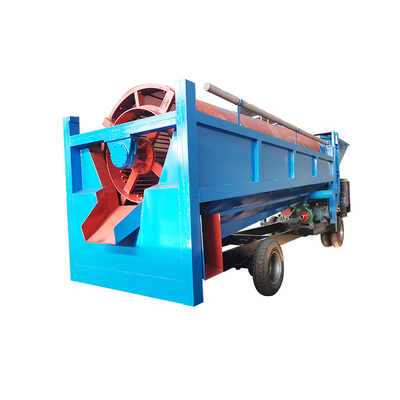

Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size

Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,080.00 - $27,500.00/sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case.
Supply Ability: 50 Set/Sets per Month gold trommel screening plant
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Gravity Separator
Production Capacity: 98% Voltage: 380V/415V/440V( As Client Request)
Dimension(L*W*H): As Per Different Model Weight: 2200 KG, 6.5-10T
Warranty: 24 Months Excluding Spare Parts Marketing Type: New Product 2023
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Key Selling Points: Mobile Gold Washing Trommel Product Name: Small Gold Mining Trommel Screen Factory Supplier
Model: Gold Mining Trommel Screen Power: 5.5KW, 7.5KW, 11KW
Dimension: Depends On Model Application: Alluvial Gold Washing, Diamond, Rock, Soil, River Gold
Capacity: 30-150 Tons Per Hour Feeding Size: Less Than 300mm
Discharge Size: Less Than 6mm Color: Yellow, White, Red, Blue, Gray( Or As Client Request)
Port: Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

Mini Small Mobile Sand Gold Mining Trommel Wash Plant Factory Supplier

Product Description



 The gold machine movement is very convenient and can be applied to a variety of terrain, terrain is soft sandy or hard rock, stone or more can be applied, and must also very convenient, can satisfy the development of mining while walking. This method has a good effect on a large range of sand gold mining areas, which can save more production costs and increase mining efficiency.



Outstanding Advantages::
1.Barrel of trommel screen includes infeed diverter rings for minimizing the material loss.
2.Modular replaceable screen segments according to customer requirements. Customer choose woven wire and plate per their demands.
3.Trommel screens allow access to screens for maintenance and inspection.
4.Alternative discharge belt conveyor, can supply diverse belt conveyor for discharging material of after screened.
5.The main frame of heavy steel structure is designed with components for minimizing material accumulation.
6.Heavy duty structure includes integrated leveling system, it is easy to install.
7.Nylon bristle, cleaning device can be changeable quickly and individually for minimizing downtime of equipment, and that improving efficiency.
8.Trunnion components mounted to heavy duty roller bearings to prolong service life.
9.Low stress welded, structural tubing lifter assemblies
10.Alternative feed and discharge chutes.





Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 0

technical parameters





Model

Capacity

(t/h)

Capacity

(t/h)

Diameter

(mm)

Length

(mm)

Discharge

(mm)

Input

(mm)

Dimension

((mm)

GMTS0519

5-10

5-10

500

1910

0-100

≤300

3000x1000x1800

GMTS1020

10-30

10-30

1000

2000

0-100

≤300

3390×1400×2140

GMTS1225

30-50

30-50

1200

2500

0-100

≤300

4146×1600×2680

GMTS1548

80-150

80-150

1500

4800

0-100

≤400

8460×2300×2500

GMTS1848

100-200

100-200

1800

4800

0-100

≤400

8460×2300×2700

GMTS2060

200-350

200-350

2000

6000

0-100

≤400

9680×2300x3420

Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 1

Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 2 The gold washing machine can be used for gold washing and screening. The gold washing machine offer an expanded processing capacity that rivals all competitor mobile gold wash plant trommel equipment. The gold washing machine has an average of 100-300 m³/h OR 170-510 tons per hour based upon 1.7 tons of material weight per cubic meter conversion.

Input of raw materials
Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper. Selection and cleaning of raw materials Raw materials of the gold washing machine will be cleaned and selected by the rotation of gold washing machine and by watering of the shower inside, run into the gold dust separate panel.

Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 3
Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 4

Motor
Brand of driving device can choose on your request.
International brands like SEW, ABB, SUMITOMO, SIEMENS.China brand like Yutong,Tailong,Guomao,Taixing,Nangaochi.
Powerful enclosed and compact efficient motor drive
Shaft mounted and underslung gearbox reducer.
Optimization YOX & YOT constant filling hydrodynamic coupling. Good balance and strong braking force Brake.



Screen mesh
The mesh hole is not easy to block.
Screen mesh with special material wire mesh
High screening efficiency,
Bold material, heavy bearing, long use time
It is easy to replace the screen with a bead
According to the characteristics of the screening material, a fully enclosed structure or an open structure can be selected.



Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 5
Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 6

Gold washing mat
Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.

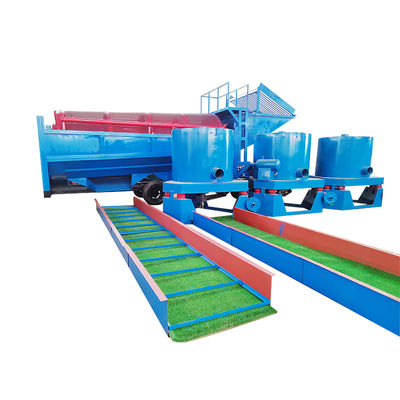

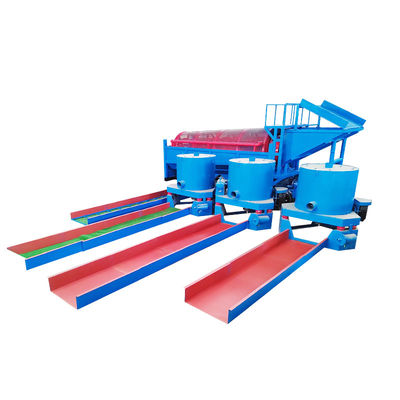

Fine Size Gold Recovery System
Name: Knelson type gold centrifugal concentrator Processing capacity: 15tph-60tph dry solids

Quantity: 2- 4 pcs
Remark: Fully continuous type
Function: for fine size dust gold recovery (-6mm)
Recovery Rate: 99%



Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 8
Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 9 Gold shaking table is a gravity dressing machine,which has high separation efficiency.It is designed to wet gravity-based separation of minerals and other granular materials.
Gold shakint table does not need reagent compared with the traditional process as well as it can make the materials concentrated at one time.
Gold shaking table is mainly composed of bed head, electromotor, adjusting gradient device, bed surface, ore chute, water chute, rifle bar and lubricating system

Powering system
Name: Cummins diesel engine generator set
Power: 50Kw-350Kw
Brand: Cummins, Weichai, or as required
Function: supplying power to all the systems



Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 10
Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 11

Mercury Amalgamator
Type: drum type
Working mode: amalgamator + distiller retort
Function: With the help of Mercury, to extract allthe gold out from the concentrates that recoveredby the sluice and concentrators
Recovery rate: 100%

Gold Smelting Furnace
Capacity: 10-15kg per batch

Moulds: 100g; 200g; 500g; 1000g
Function: to smelting thegold sand and make
into final product of gold bars



Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 12





Packaging & Shipping

Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 13



if you need more photos and video , please click here to contact me :



Case

Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 14



if you need more photos and video , please click here to contact me :



Company Information

Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 15Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 16Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 17

Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 18Mini Small Mobile Sand Gold Mining Trommel Wash Plant for Less Than 6mm Discharge Size 19

FAQ

Question 1: Can you give me a solution and quotation?

Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.



Question 2: Way of payment
Answer: Welcome clients place the order by alibaba online one-touch! also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.



Question 3: What’s the delivery time after I pay the deposit ?

Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.



Question 4: How long of your machine quality guarantee terms?

Answer: Equipment from Zhengzhou Sinolion Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.
