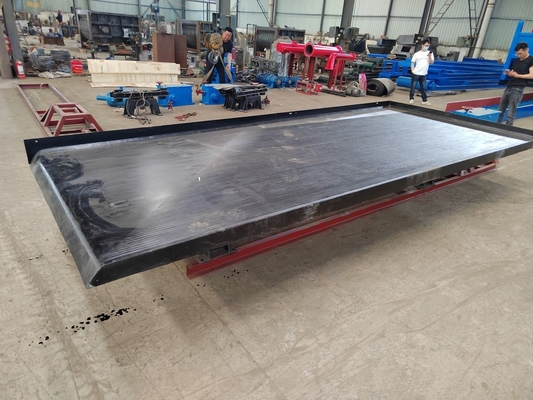

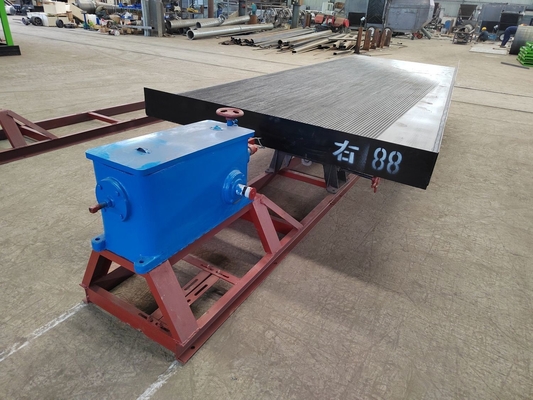

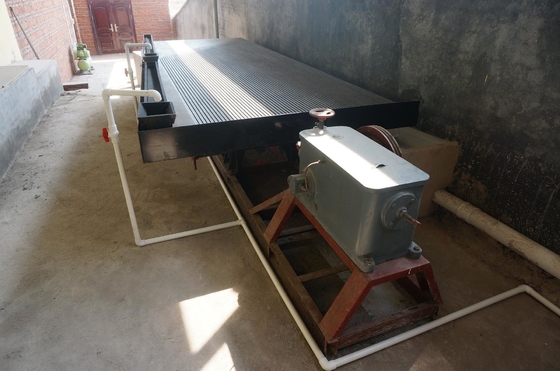

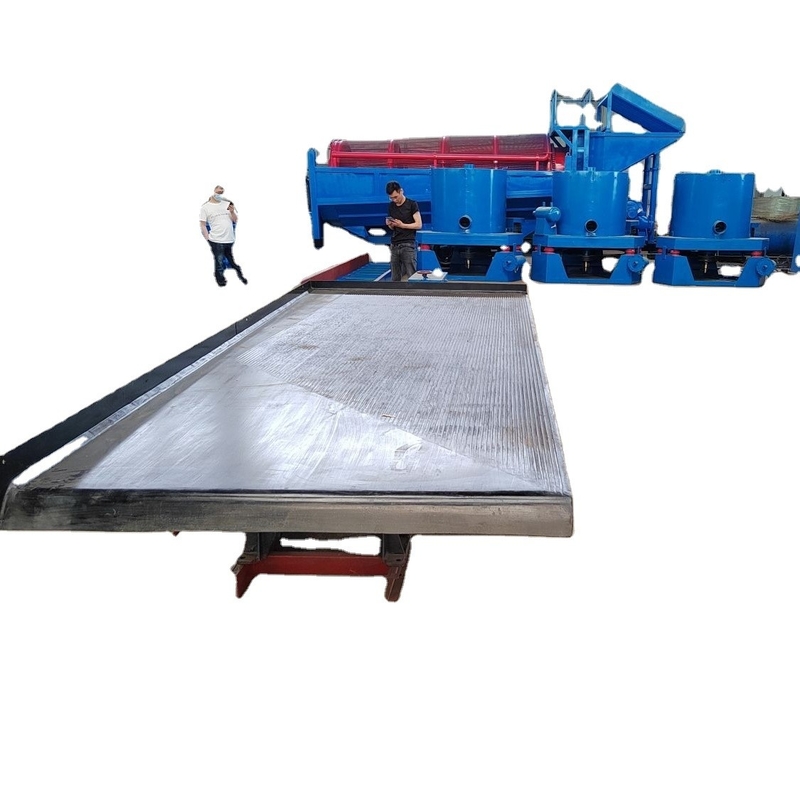

Gold Shaking Table for Ore Processing Gravity Separator Other Voltage 380v/415v/440v
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,450.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States, Indonesia, Mexico, UAE, Australia, None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Motor, Pump | Condition: | New |
| Type: | Circular | Application: | Ore |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | 4520*1850*1560mm |
| Weight: | 950 KG | Warranty: | 1 Year |
| Keyword: | Shaking Table | Installation: | Supply Manual To Guide User |
| Power: | 1.1kw | Dimension: | 4520*1850*1560mm |
| Length: | 4520mm | Feed End Width: | 1850mm |
| Concentrate End Width: | 1560mm | Discharge Size: | As Request |
| Color: | Black Or White( Or As Client Request) | After-sales Service Provided: | Field Installation, Commissioning And Training |
Product Description
Gold Concentration Shaking Table Machine Price, Gravity Separator Machine, Mineral Concentration Ore Processing Shaking Table
6-S shaking table belongs to gravity beneficiation equipment, which is developed from plane chute and has its own system characterized by asymmetric reciprocating motion. It is suitable for separation of gold, tungsten, tin, tantalum, iron, manganese, chromium, titanium, bismuth, lead and other non-ferrous, black and rare precious metal minerals of 2-0.037 mm ore sand and slime grade, and for separation of 4-0.037 mm pyrite; After properly changing the form of the bed strip, the nonmetals such as fine coal and slime, monazite and rutile can be selected, and other mixed materials with sufficient specific gravity difference and proper particle size composition can be selected.
Shaking table working principle:
Shaking table separation is realized under the joint action of bed shaking and transverse water flow. The bed bar on the bed surface is vertical and nearly perpendicular to the direction of water flow. When the water flows across a bed bar, it forms eddy current in the groove. The combined action of eddy current and bed shaking can make the ore sand layer loose and layered according to the density, the heavy minerals turn to the lower layer, the light minerals turn to the upper layer, and the upper light mineral particles are subject to the greater impact of water flow, However, the heavy ore particles in the lower layer are subject to a small impulse, so the transverse movement speed of light ore particles on the bed surface is greater than that of heavy ore particles on the bed surface. This process is "delamination"
Zhengzhou Sinolion Machinery is a Chinese company with a department specialized in screening equipment;
Being consultant, designer and adviser of placer gold washing plant. Our company manufacture MTS Series mobile trommel screener, GMTS Series gold washing plant, MSW sorting plant and related equipment.
After 10 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion Machinery has been awarded as the pioneer in the field of screener manufacture in China.
SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with environmental engineering research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, there are 80 employees in Sinolion, among which over 30 are holders of Bachelor's Degree and above, and nearly 70% of senior and experienced engineers of researchers specializing in electrical engineering, mechanical engineering, hydraulics, logistics and so on.
SINOLION provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and SINOLION strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. SINOLION Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install production lines.
Like Sinolion, sincere, responsible, diligent and helpful, it brings together many ambitious talents who are good at different fields.
| | |
