5-10 Ton Per Hour Placer Gold Mini Trommel Screen with Stainless Steel Material 720 KG
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
| Certification: | ISO9001-2008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,000.00/sets >=1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery.<br>20GP container or 40GP container<br>Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight.<br>Motor is packed wit |
| Supply Ability: | 40 Set/Sets per Month All products will be processed to be rustproof and moisture proo |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, United States, Brazil, Mexico, Russia, Kenya, Nigeria, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Circular | Application: | Ore, Coal, Coke, Mulch, Organics, Bark, MSW, Building Waste |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
| Weight: | 720 KG | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Power: | 3kw |
| Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel | Installation: | Supply Manual To Guide User |
| Capacity: | 5-10t/h | Diameter: | 500mm |
| Maximum Size: | 100mm | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Port: | All Products Will Be Processed To Be Rustproof And Moisture Proof Before Delivery. 20GP Container Or 40GP Container Equipment Is | ||
Product Description

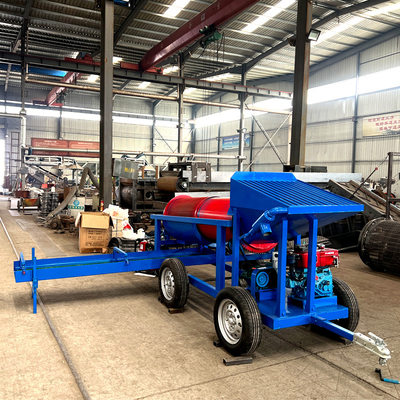

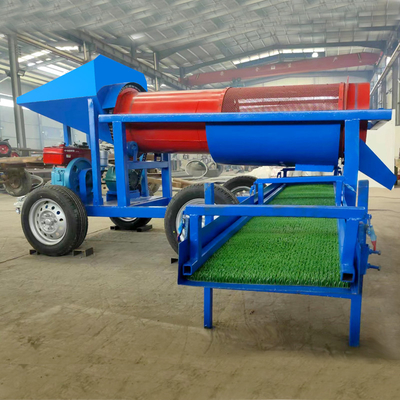

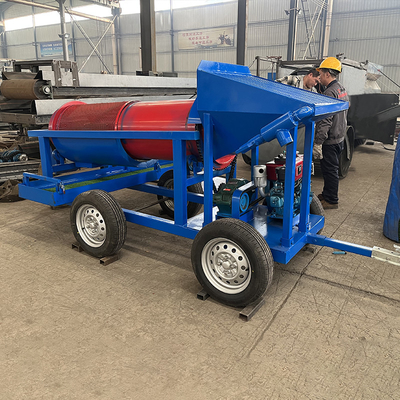

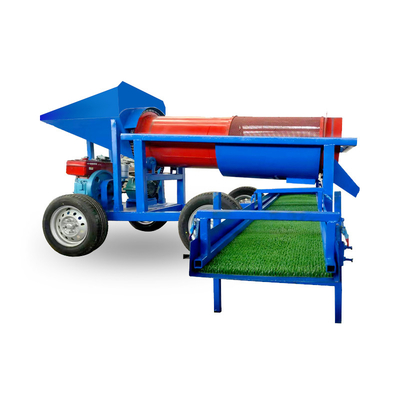

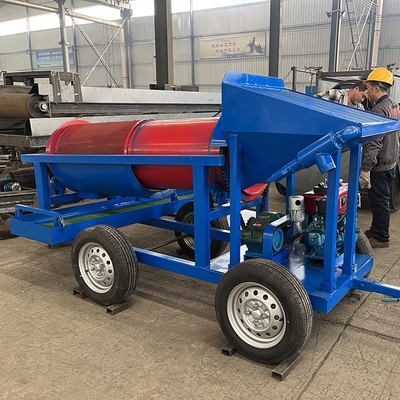

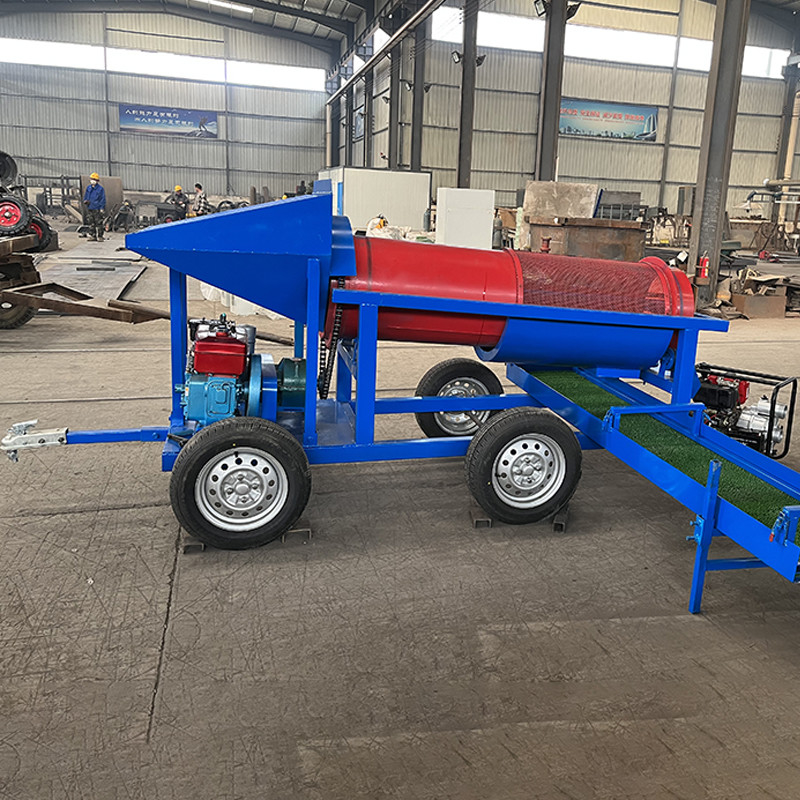

5-10 Ton Per Hour Placer Gold Mini Trommel Screen for Sale
The gold trommel screen machine enjoys the feature with light weight, perfect quality, oversized wheel. It's easy to navigate on those rough terrain. Power coating to durable finish. gold trommel screen machine runs at 11 RPM and half throttle at 15 RPM. This trommel machine is suitable for placer or sandy materials. The hopper spray rod can be adjusted and the end can be removed for easy maintenance. Th spray rod at the bottom of the gold trommel can be clean, and it is easy to maintain. The operation is so simple, you can also use the brass gate valves for fine water adjustment of your hopper and drum body. The drum has a 3/4 screen mesh and a 12-inch wide vent.
Characteristics
The mini gold chute of alluvail gold trommel is ideal for fine gold recovery, easy to carry; incredibly lightweight, easy to assemble, with no tools required to assemble. It comes out of the box, ready to use and with it is an included 2 glass collection vials for gold flake and fine gold that is found through your gold panning efforts.
It is also great for fine sand processing after classifying raw sediment through a 1/20" material sifting screen, the grooved rubber matting is sure to pick up all of your fine gold pickers and small gold flake. Woven vinyl miners moss carpet can also be used in this mini sluice box and can be switched out simply by removing the wingnut and washer that holds everything in place; not tools required.
Technical parameter
The mimin alluvail gold trommel screen can be made according to customers's requirements.
Sluice box mattingThe gold trommel screen machine can be equipped with a 12" x 36" x 10mm of green miner's moss, sluice box matting.
Characteristics:
1. Complete screen self cleaning function
2. The machine can effectively control the screening size function, can achieve high precision screening, to achieve the best screening effect.
3. The outlet of the machine can be adjusted arbitrarily. Sieve out of the material can be directly discharged, suitable for automated operations.
4. Simple structure, convenient installation, light weight; Reliable operation, long life; Low power consumption.
5. The screen mesh is not blocked, no flying powder, no leakage, fully sealed structure, environmental protection.
6. Fine powder, particle and liquid can pass through without blocking.
7. The cylinder is made of thick stainless steel, with long service life
| SPECIFICATIONS OF PORTABLE MOBILE GOLD MINING TROMMEL | |
| Model Type | GTS500*1910 |
| Diameter | 500mm |
| Length | 1910mm |
| Motor: | 3KW |
| Gold chute: | 350*1500mm |
| Screen aperture | 5mm |
| Spray pipe | 50mm |
| Maximum size | 100mm |
| Tire diameter | 500mm-650mm |
| Middle | 10-50mm |
| Finest | 3mm |
Q1: How long is the delivery time
A: Normally within 7-10days.
Q2: What is the driving force
A: Japan Hongda Gasoline Engine.
Q3: How long is the warranty period
A:One year.
Q4: Do you have a certificate of origin, EU certification, etc.
A: Yes, of course.
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
| | |
