8*2.2*3.6m Gold Sand Earth Movable Gold Sand Trommel Gravity Mining Trummel Gold Washing Plant
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $13,200.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | United States, Mexico, UAE, Australia, None |
|---|---|---|---|
| Condition: | New | Type: | Sprial Separator |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | 8*2.2*3.6m |
| Weight: | 6500 KG | Warranty: | 1 Year |
| Marketing Type: | Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump | Key Selling Points: | Easy To Operate |
| Keyword: | Mining Gold Trummel | Dimension: | 8*2.2*3.6m |
| Installation: | Supply Manual To Guide User | Capacity: | 80-150 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Red, Blue, Gray( Or As Client Request) | After-sales Service Provided: | Field Installation, Commissioning And Training |
Product Description
Gold sand earth movable gold sand trommel gravity mining trummel gold washing plant

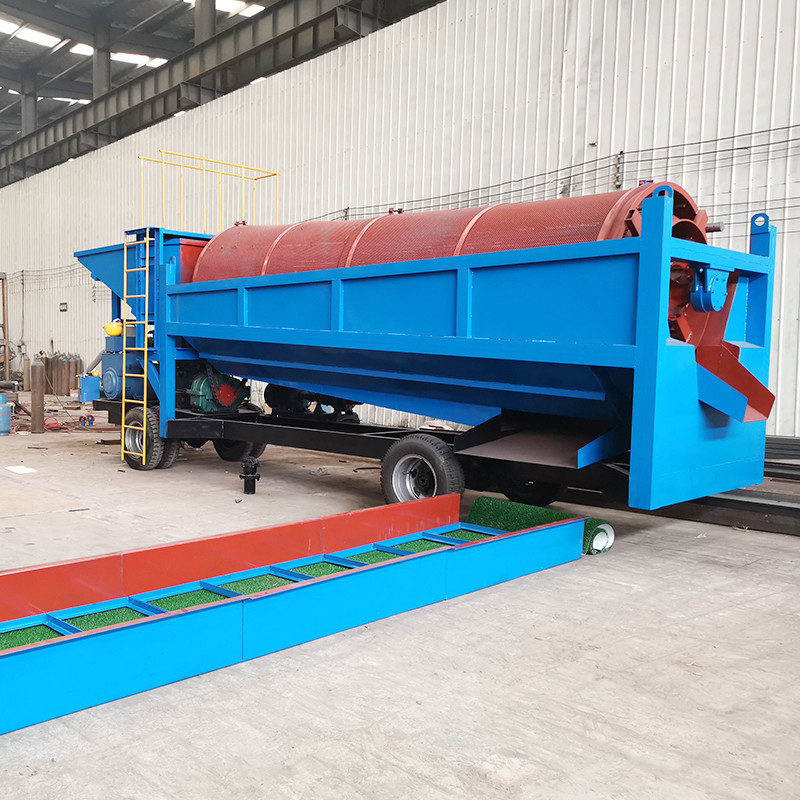

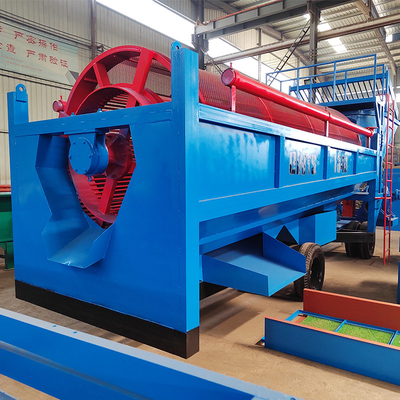

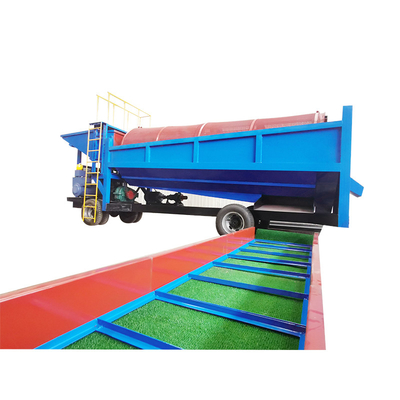

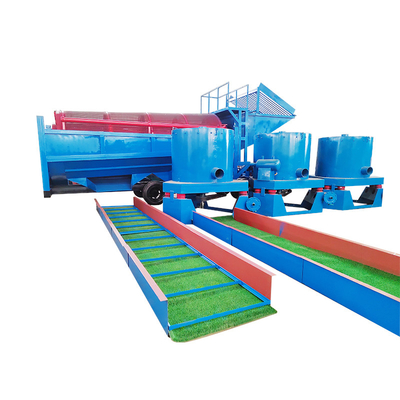

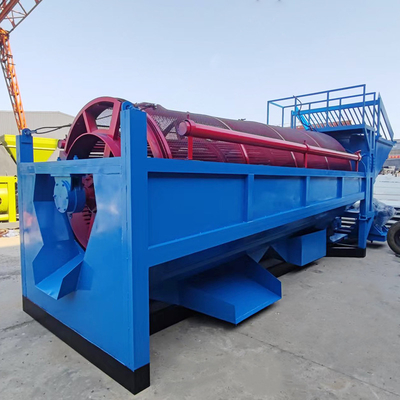

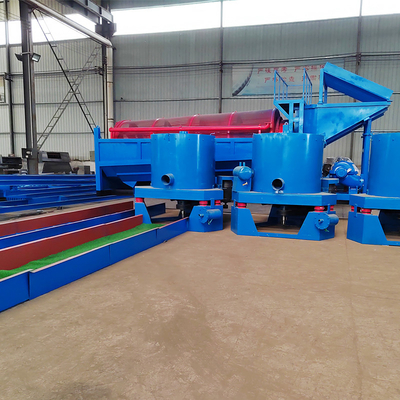

Mobile trommel screen is designed for alluvial/placer gold ore processing, it's consist of a half covered trommel screen, one diesel engine/ electric motor, water pump& water pipes, and other facilities such as the feeding hoper and the mobile system. This mobile trommel machine normally works together with sluice box , gold centrifugal concentrator and shaking table to form a complete ore concentration plant.
In addition,our trommel screens all use Honda engines. It is very convenient for personal operation.
Gold sluice box working principle:
1. Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.
2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel.
3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.
| Model | Capacity (t/h) | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
| GMTS0519 | 5-10 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |
| GMTS1020 | 10-30 | 10-30 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
| GMTS1225 | 30-50 | 30-50 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
| GMTS1548 | 80-150 | 80-150 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
| GMTS1848 | 100-200 | 100-200 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
| GMTS2060 | 200-350 | 200-350 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
Zhengzhou Sinolion Machinery is a Chinese company with a department specialized in screening equipment;
Being consultant, designer and adviser of placer gold washing plant. Our company manufacture MTS Series mobile trommel screener, GMTS Series gold washing plant, MSW sorting plant and related equipment.
After 10 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion Machinery has been awarded as the pioneer in the field of screener manufacture in China.
SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with environmental engineering research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, there are 80 employees in Sinolion, among which over 30 are holders of Bachelor's Degree and above, and nearly 70% of senior and experienced engineers of researchers specializing in electrical engineering, mechanical engineering, hydraulics, logistics and so on.
SINOLION provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and SINOLION strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. SINOLION Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install production lines.
Like Sinolion, sincere, responsible, diligent and helpful, it brings together many ambitious talents who are good at different fields.
| | |
| Small Gold Trommel Screen | Centrifugal Concentrator | Shaking Table |
