Yellow Small Mobile Scale Gold Ore Processing Equipment with Discharge Size as Request
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,610.00/sets 1-1 sets |

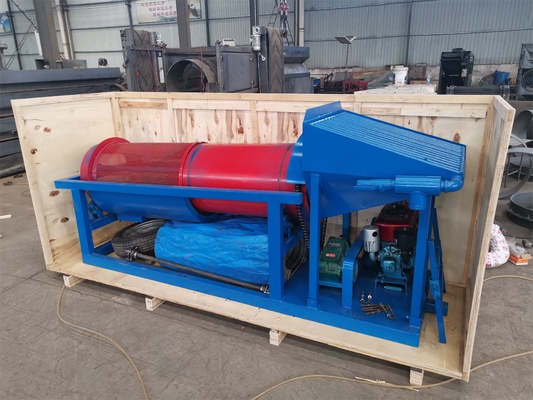

| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Colombia, South Africa, Nigeria |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 5-10t/h | Voltage: | 220V/380V |
| Dimension(L*W*H): | 3000*1000*1910mm | Weight: | 520 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine, Gearbox |
| Key Selling Points: | Automatic, Sustainable | Product Name: | Mobile Gold Trommel Screen |
| Application: | Gold Mining | Dimension: | According To Capacity |
| Installation: | Supply Manual To Guide User | Feeding Size: | Less Than 300mm |
| Discharge Size: | As Request | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description

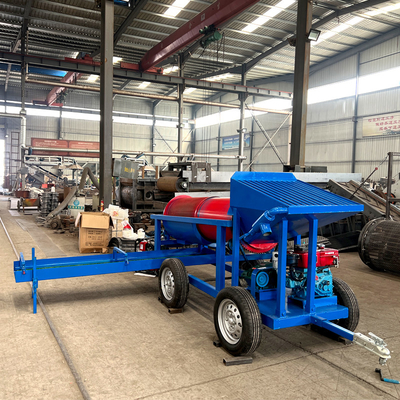

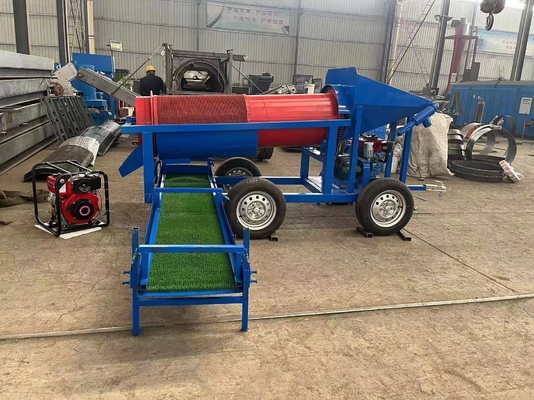

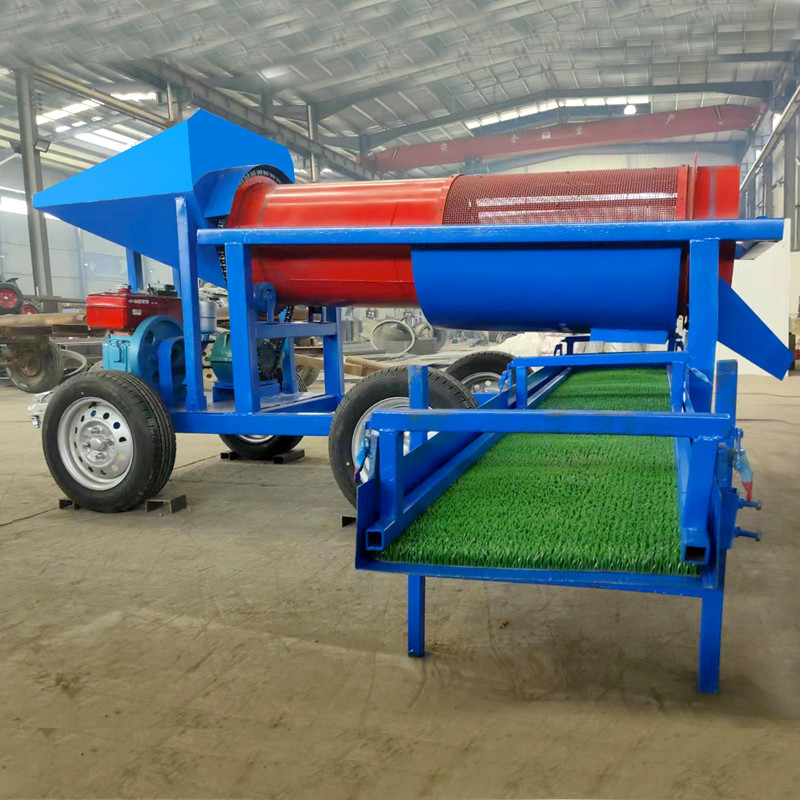

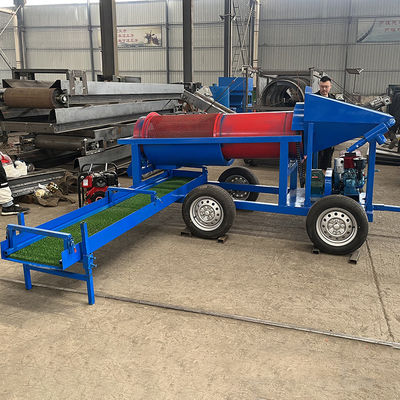

Small Mobile Scale 5-10Tons Gold Ore Processing Equipment Gold Washing Machine Gold Trommel Screen
Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Its Working Principle Is To Control The Size Of Particle Size To Control The Separation Of Waste, Thus Improving The Separation Efficiency. The Advantages Of Small Trommel Screen Are Obvious, And It Is More Flexible And Convenient Than Large-scale Mobile Screen In Terms Of Movement. Trommel Screen Internal Equipment, The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.
Structure and Principle
The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.

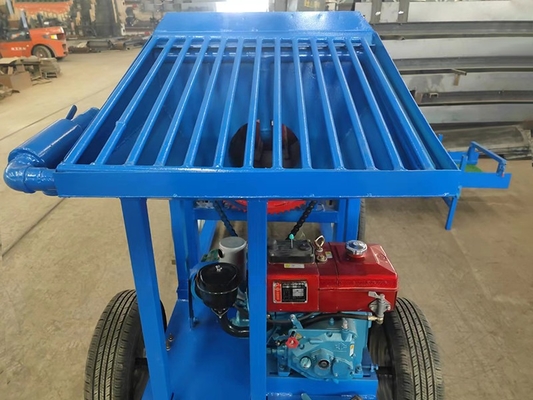

1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper.
2. Selection And Cleaning Of Raw Materials Raw Materials Of The Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel.
3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.
Product Name | Gold Trommel Screen |
Model | GMTS0519 |
Capacity (t/h) | 5-10 |
Power(kw) | 1.5 |
Diameter(mm) | 500 |
Length(mm) | 1910 |
