MSW Gold Trommel Screener Machine for Large Capacity Aluvial Sand Gold Screening
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00 - $24,000.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Building Material Shops | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Sprial Separator |
| Production Capacity: | 98% | Voltage: | 380v/415v/440v |
| Dimension(L*W*H): | Depends On Models | Weight: | 2200 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |
| Key Selling Points: | High Rigidity | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel | Power: | 3-45KW |
| Application: | Industrial Waste, Mulch, Organics, Bark, MSW, Building Waste | Dimension: | According To Capacity |
| Installation: | Supply Manual To Guide User | Capacity: | 50-500 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description

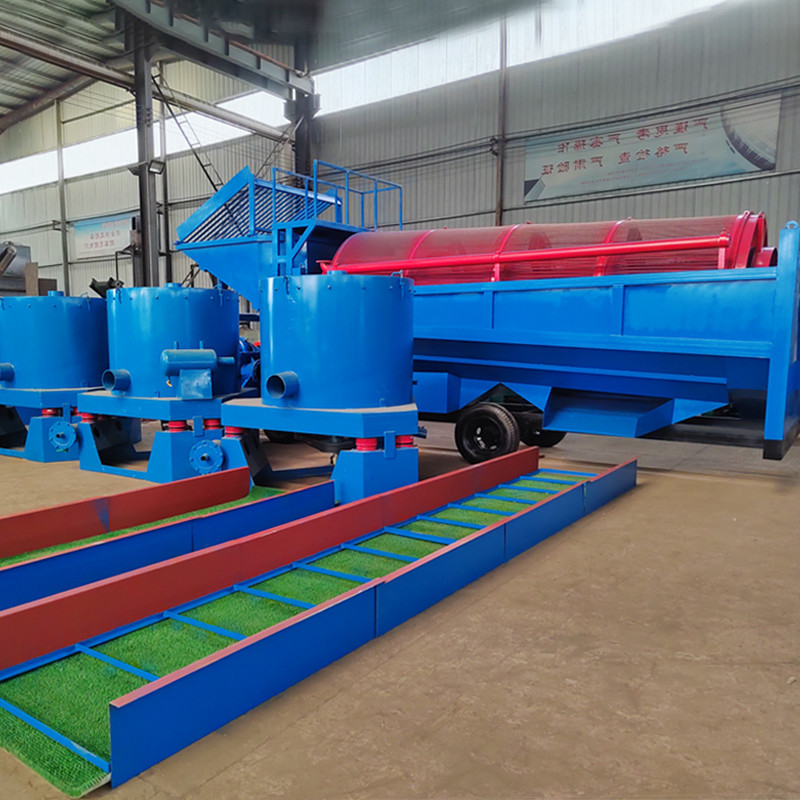

Description of large capacity gold trommel screener machine
The gold trommel screener has been more and more popular and widely applied in the placer/alluvial gold washing process, especially the river sand gold process. In addition, it is also very popular & effective in sand washing and screening as well as top soil screening.
Application of large capacity gold trommel screener equipment
2. Separation from sand and gravel in the sandstone field.
3. The coal industry is used for the separation of lump coal from pulverized coal and coal washing (part of coal washing machinery).
4. Chemical industry, the beneficiation industry is used for grading and separating powdery materials.
Main feature of gold trommel screener equipment
1. The mesh hole is not easy to block;
2. Smooth operation and low noise;
3. Simple structure and convenient maintenance;
4, the screening cylinder of gold trommel sieve can be closed, easy to close the dust collection;
5. The reliability of the whole machine is high, and the one-time investment is less;
6, the use of special screen, high screening efficiency, long service life.
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |
YGTS1020 | 20-30 | 4.0 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
YGTS1225 | 30-50 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
YGTS1545 | 50-120 | 11 | 1500 | 4500 | 0-100 | ≤400 | 8160×2300×3080 |
YGTS1548 | 80-150 | 15 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
YGTS1848 | 100-200 | 15 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
YGTS2060 | 300-400 | 30 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300×3420 |
Design and produce trommel screener based on customer special requirement
