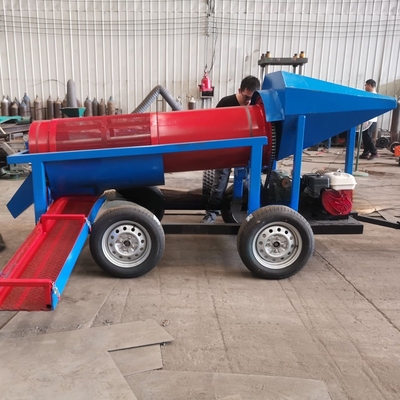

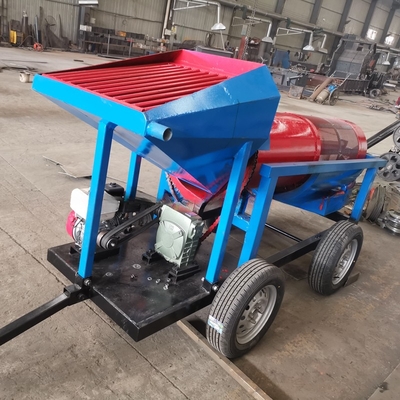

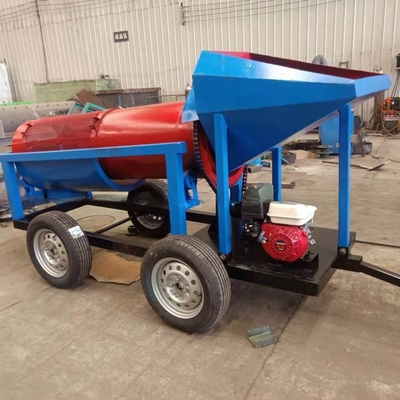

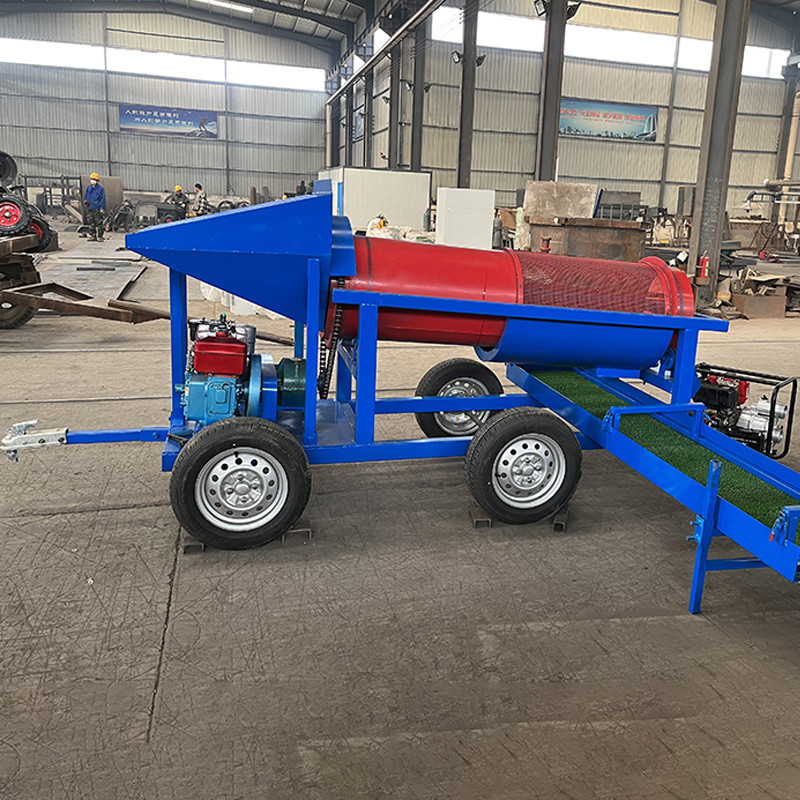

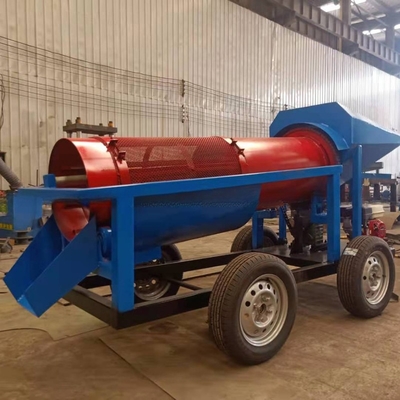

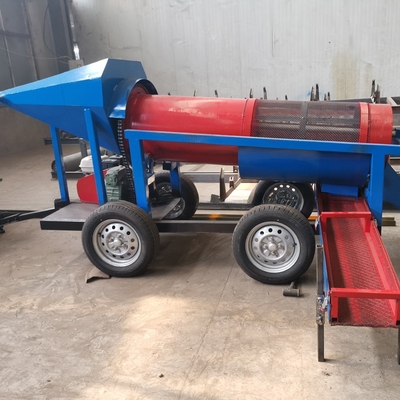

20-300 Tons Per Hour Capacity Mobile Drum Sieve for Alluvial River Gold Trammel Screen
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. <br>Motor is packed |
| Supply Ability: | 35 Set/Sets per Month trammel screen |
|
Detail Information |
|||
| Applicable Industries: | Other | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Sprial Separator |
| Voltage: | 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 1 Year |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor | Key Selling Points: | High Rigidity |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Model: | Compost Trommel Screener 1200x2500 |
| Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel | Power: | 3-45KW |
| Dimension: | 5600x2015x2010mm | Application: | Plaster Glass Mulch Organics Topsoil, Bark, MSW, Municipal Solid Waste |
| Capacity: | 20-300 Tons Per Hour | Feeding Size: | Less Than 300mm |
| Discharge Size: | Less Than 6mm Or As Request | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
The gold machine movement is very convenient and can be applied to a variety of terrain, terrain is soft sandy or hard rock, stone or more can be applied, and must also very convenient, can satisfy the development of mining while walking. This method has a good effect on a large range of sand gold mining areas, which can save more production costs and increase mining efficiency.
Outstanding Advantages::
1.Barrel of trommel screen includes infeed diverter rings for minimizing the material loss.
2.Modular replaceable screen segments according to customer requirements. Customer choose woven wire and plate per their demands.
3.Trommel screens allow access to screens for maintenance and inspection.
4.Alternative discharge belt conveyor, can supply diverse belt conveyor for discharging material of after screened.
5.The main frame of heavy steel structure is designed with components for minimizing material accumulation.
6.Heavy duty structure includes integrated leveling system, it is easy to install.
7.Nylon bristle, cleaning device can be changeable quickly and individually for minimizing downtime of equipment, and that improving efficiency.
8.Trunnion components mounted to heavy duty roller bearings to prolong service life.
9.Low stress welded, structural tubing lifter assemblies
10.Alternative feed and discharge chutes.
| Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |
| YGTS0520 | 5-10 | 3 | 500 | 2000 | 0-100 | ≤300 | 3390×1100×1640 |
| YGTS1020 | 20-30 | 4.0 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
| YGTS1225 | 30-50 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
| YGTS1545 | 50-120 | 11 | 1500 | 4500 | 0-100 | ≤400 | 8160×2300×2500 |
| YGTS1548 | 80-150 | 15 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
| YGTS1848 | 100-200 | 15 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
| YGTS2060 | 200-350 | 30 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
if you need more photos and video , please click here to contact me :
Sinolion company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install.Sinolion holding the concept of "To survive with quality and develop with credit". Our company strives to build a brand enterprise with satisfaction of customers. Let customers buy reassured and use comfortably! For users who ask us to design, manufacture and install formed coal production line, our company will provide satisfactory products with the latest technology, reliable quality, favorable price and perfect service, we welcome friends from all circles.
Question 1: Can you give me a solution and quotation?
Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
Question 2: Way of payment
Answer: Welcome clients place the order by alibaba online one-touch! also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
Question 3: What’s the delivery time after I pay the deposit ?
Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
Question 4: How long of your machine quality guarantee terms?
Answer: Equipment from Zhengzhou Sinolion Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.
| | |
