Portable Gold Washing Plant Mining Equipments for Small Scale Gold Trommel Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United States, Brazil, Mexico, Russia, Kenya, South Africa, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 380V/415V/440V |
| Dimension(L*W*H): | As Per Different Model | Weight: | 520 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Gearbox |
| Key Selling Points: | Mobile, Gold Washing Trommel | Model: | Gold Trommel For Alluvial Gold Wash Plant |
| Power: | 3KW | Application: | Alluvial Gold Washing, Diamond, Rock, Soil, River Gold |
| Installation: | Supply Manual To Guide User | Capacity: | 5-10 Tons Per Hour |
| Maximum Size: | 100mm | Screen Aperture: | 5mm |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Length: | 1910mm |
| Gold Chute: | 350*1500mm | ||
Product Description
Mobile gold washing trommel price river sand gold washing mining recovery trommel screen
The gold washing trommel screen equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.

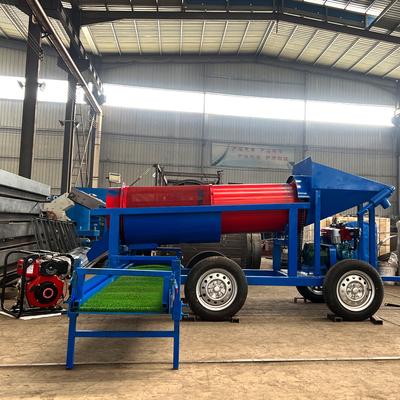

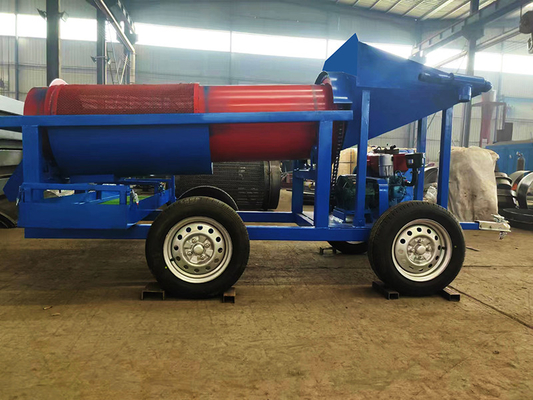

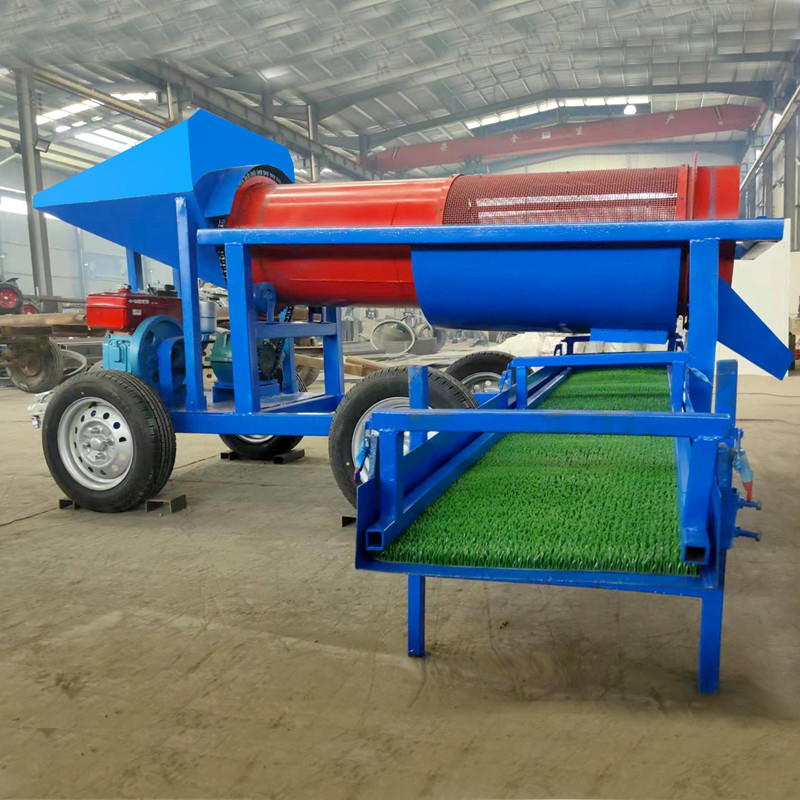

Gold washing trommel screen is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.

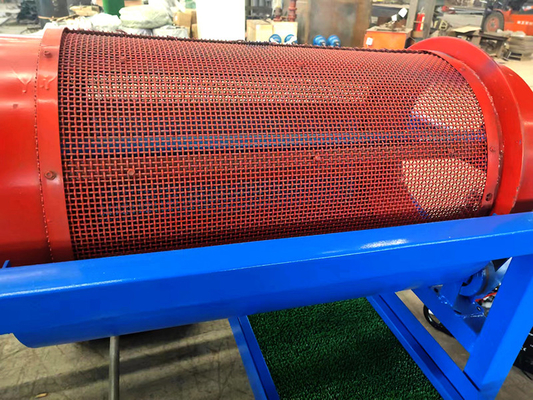

The first section of mini gold trommel is l 910mm steel drum, the second section is 840mm with manganese wire mesh, aperture 5mm,while the third section steel reel 160mm,Round steel diameter 10mm, small opening 50mm, tire diameter , four tires, one axle.

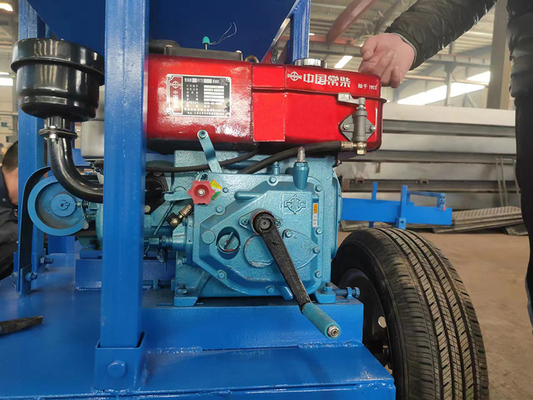

It is equipped with HONDA diesel engine, with reducer, chain, leg, roller. The width of the discharge tank is 400mm and the length 1500mm contains gold panning grass.
Characteristics:
1. Complete screen self cleaning function
2. The machine can effectively control the screening size function, can achieve high precision screening, to achieve the best screening effect.
3. The outlet of the machine can be adjusted arbitrarily. Sieve out of the material can be directly discharged, suitable for automated operations.
4. Simple structure, convenient installation, light weight; Reliable operation, long life; Low power consumption.
5. The screen mesh is not blocked, no flying powder, no leakage, fully sealed structure, environmental protection.
6. Fine powder, particle and liquid can pass through without blocking.
7. The cylinder is made of thick stainless steel, with long service life
| SPECIFICATIONS OF PORTABLE MOBILE GOLD WASH TROMMEL | |
| Model | GTS-500x1900 |
| Drum Diameter | 500mm |
| Drum Length | 1900 mm |
| Gearbox | WPS-100-20 |
| Towing Hook | Include |
| Tires Size | 165/70RB |
| Rubber Tires Quantity | 4 pieces |
| Spray Pipe Diameter | 42mm |
| Spray Pipe Material | Galvanized seamless pipe |
| Capacity | 5-10 tons/hour |
| HONDA Gasoline Engine | Main Power:5.5HP |
| Gold Chute | 350*1500mm |

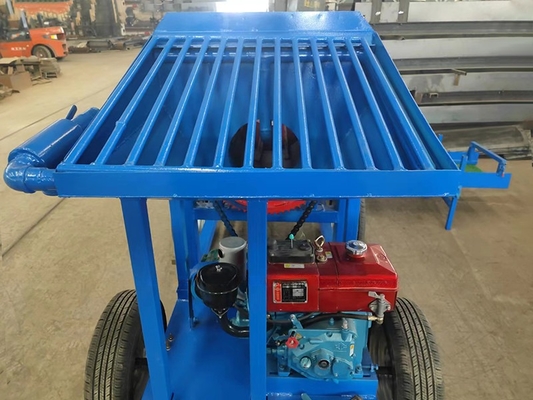

| Grizzly | Steel bard diameter 20mm |
Q1: How long is the delivery time
A: Normally within 7-10days
Q2: What is the driving force
A: Japan HTC Gasoline Engine
Q3: How long is the warranty period
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
| | |
