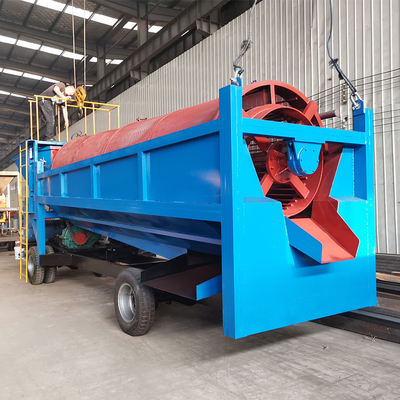

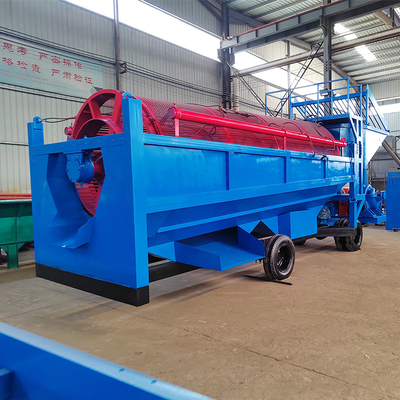

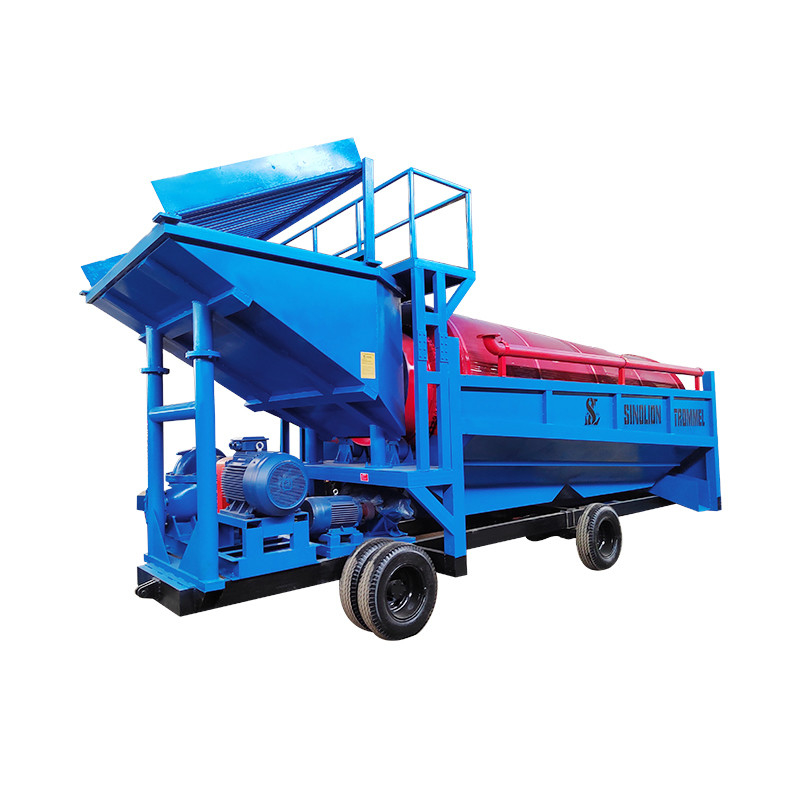

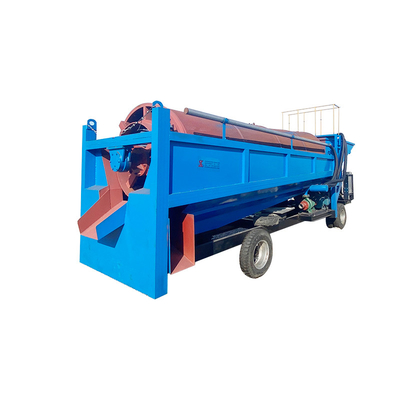

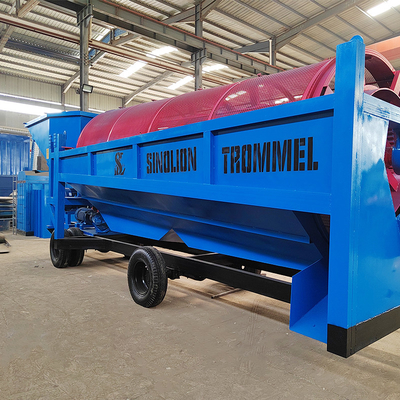

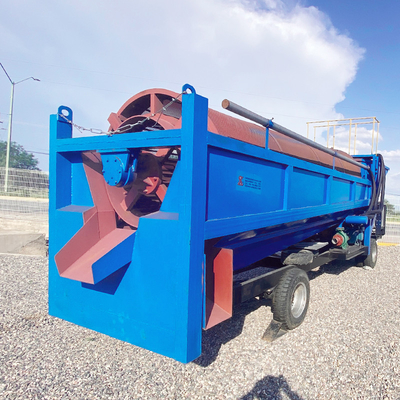

High Capacity Sand and Gravel Trommel Screen for Soil Screening 30-150 Tons Per Hour
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Rotary | Application: | Compost, Soil, Sawdust, Wood Chips, Rock, Soil, River Stone, Gravel, Pebble |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG, 2.2T-18T | Warranty: | 2 Years |
| Product Name: | High Efficiency Mobile Drum Screen,firewood Sawdust Trommel Screen | Keyword: | Firewood Sawdust Trommel Screen |
| Power: | 5.5KW, 7.5KW, 11KW | Dimension: | Depends On Model |
| Installation: | Supply Manual To Guide User | Capacity: | 30-150 Tons Per Hour |
| Feeding Size: | Less Than 300mm | After-sales Service Provided: | Field Installation, Commissioning And Training |
Product Description
High efficient sand soil gold trommel screen / soil screener machine
Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Its Working Principle Is To Control The Size Of Particle Size To Control The Separation Of Waste, Thus Improving The Separation Efficiency. The Advantages Of Small Trommel Screen Are Obvious, And It Is More Flexible And Convenient Than Large-scale Mobile Screen In Terms Of Movement. Trommel Screen Internal Equipment, The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.
Advantages:
1) It is multi-function highly economically .
2) The screen features various filters for different heavy duty drums that ensure complete separation of fine materials.
3) The design has a end user flexibility that allows for screen replacements depending on mesh sizes
4) Multiple layers of screen to enhance the sifting process.
5) Trommel screen has high efficiency and a big capacity for different volumes of materials
1.Using the principle of rolling conveying, small friction coefficient, light wear, screen hole is not easy to plug.
2. The roller support adopts the whole through shaft structure, running stably, no vibration and low noise.
3. The internal roller screen mesh accessories adopt separate design, simple structure, quick and convenient replacement and maintenance.
4, the cylinder body adopts the effective fully sealed structure, no dust, no pollution.
5. The whole machine has high reliability, less one-time investment, low energy consumption, large output and obvious energy-saving effect.
6, According to customer requirements using different mesh material, mesh size, screening efficiency is high, long service life.
| Model | Capacity (t/h) | Capacity (t/h) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension ((mm) |
| GMTS0519 | 5-10 | 5-10 | 500 | 1910 | 0-100 | ≤300 | 3000x1000x1800 |
| GMTS1020 | 10-30 | 10-30 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
| GMTS1225 | 30-50 | 30-50 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
| GMTS1548 | 80-150 | 80-150 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
| GMTS1848 | 100-200 | 100-200 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
| GMTS2060 | 200-350 | 200-350 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
Note: Above capacity is for reference, different materials with different capacity. Please contact Sinolion for more information.
if you want to get the briquette machine , you need use our briquette machine below :
if you need more photos and video , please click here to contact me :
if you want to get the briquette machine , you need use our briquette machine below :
if you need more photos and video , please click here to contact me :
if you want to get the briquette machine , you need use our briquette machine below :
if you need more photos and video , please click here to contact me :
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.
