Graphite Carbon Coal Powder High Pressure Square Press Briquette Making Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $3,500.00/sets 1-1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Manufacturing Plant, Energy & Mining |
|---|---|---|---|
| Weight (KG): | 860 | Showroom Location: | Canada, United States, Pakistan, Mexico, Russia, Thailand |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor | Condition: | New |
| Production Capacity: | 1-30t/h | Motor Type: | AC Motor |
| Dimension(L*W*H): | According To Model | Warranty: | 1 Year |
| Raw Material: | Coal, Coal Powder, Coal Dust, Coal Breeze, Coal Fines | Keyword: | Ruf Briquette Machine |
| Voltage: | 380v 415v | Material Moisture: | Less Than 50% |
| Color: | Client's Required | Application: | Fuel, Metallurgy,chemical Industry,coal And Refractories Industries |
| Installation: | Under Engineers Guidance Use Briquette Machine | Roller Diameter: | 290-1000mm |
| Briquette Shape: | Oval, Pillow And Oblate Iron Briquettes Etc | Material Size: | Coal Size Less Than 5mm |
Product Description

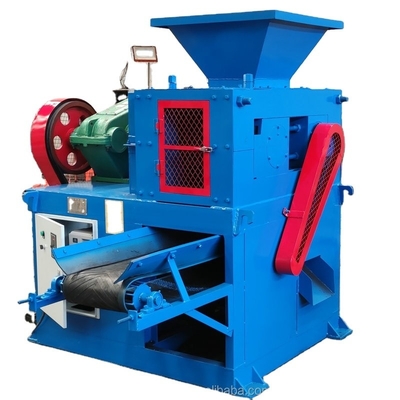

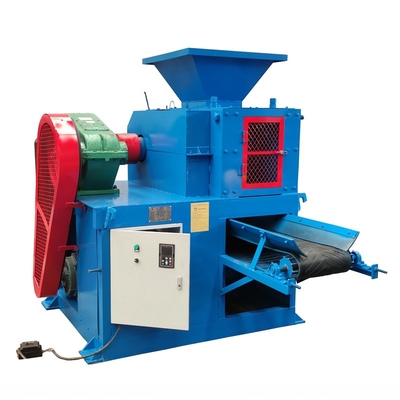

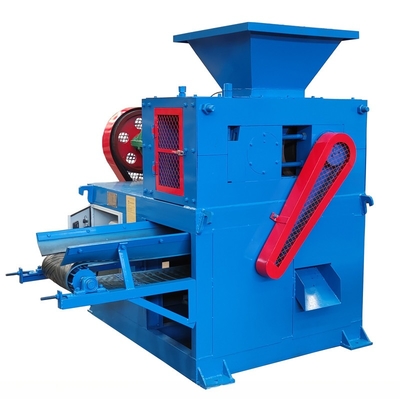

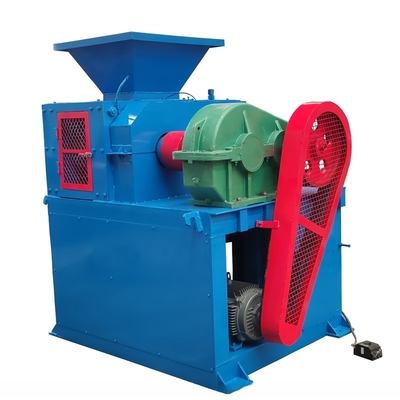

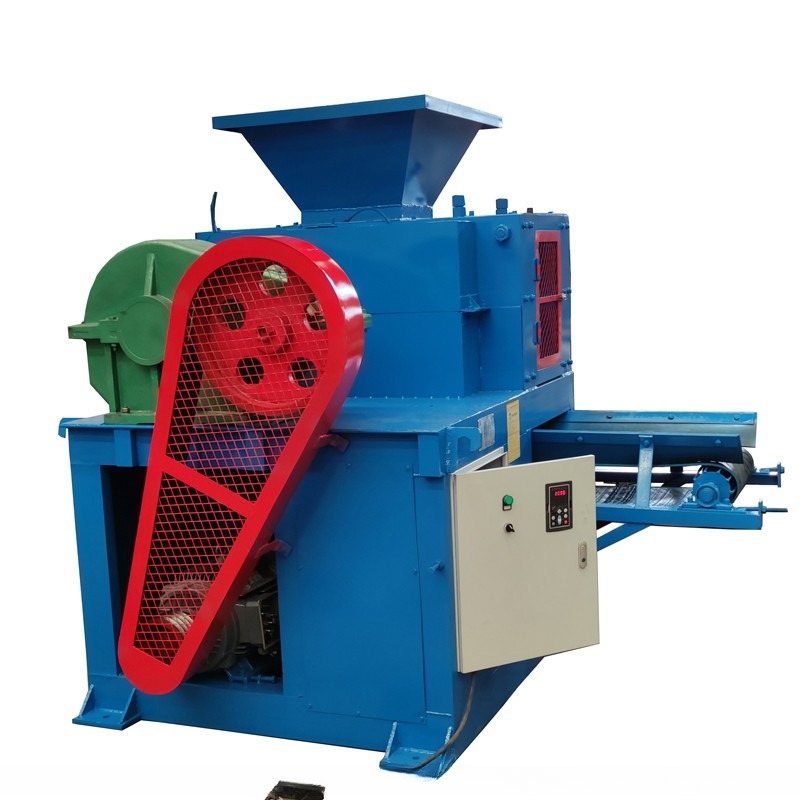

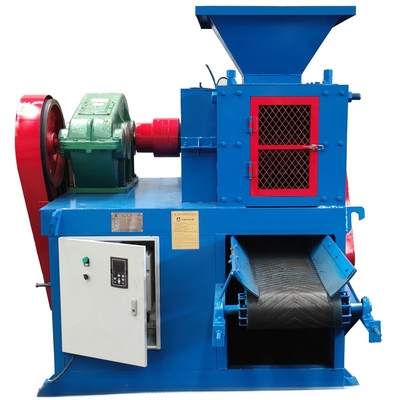

Graphite carbon coal powder high pressure square press briquette making machine
Coal charcoal briquette press machine:
Briquette machine can be used to press coal powder, charcoal powder,iron powder, coke, mineral powder, iron ore fines, metal dust, mill scale, iron oxide skin, carbon powder, slag, gypsum, tailing, sludge, kaolin clay, activated carbon, coke breeze and other powder and waste material .The briquette machine is widely used in refractory, power plants, metallurgy, chemicals, energy, transportation, heating, etc. industries. The final products have features of environmental friendly, easy to transport, improving the waste recycling, and good economic and social benefits.
Feature of briquette machine:
Briquette machine unique design is with lowest operating cost and very less maintenance for years makes it very successful & different from others.
High efficiency coal plant use coal dust recycle processing briquette machinery :
| Model | Reducer | Roller size | Power (Kw) | Yield (t/h) | Roller Material | Roller pressure (t/cm) |
| XM290 | ZQ300 | Φ290 | 5.5 | 0.8-2 | 65Mn | 1 |
| XM360 | ZQ350 | Φ360 | 7.5 | 2-3.5 | 65Mn/9Cr2Mo | 1 |
| XM400 | ZQ400 | Φ400 | 11 | 4-5 | 65Mn/9Cr2Mo | 1 |
| XM430 | ZQ400 | Φ430 | 11 | 5-7 | 65Mn/9Cr2Mo | 1-2 |
| XM500 | ZQ500 | Φ500 | 18.5-30 | 6-8 | 65Mn/9Cr2Mo | 1-2.5 |
| XM650 | ZQ650 | Φ650 | 22 | 8-12 | 65Mn/9Cr2Mo | 1-2.5 |
| XM750 | ZQ750 | Φ750 | 30-75 | 12-18 | 65Mn/9Cr2Mo | 1-2.5 |
| XM850 | ZQ850 | Φ850 | 55-90 | 18-25 | 65Mn/9Cr2Mo | 1-2.5 |
| XM1000 | ZQ1000 | Φ1000 | 75-130 | 25-30 | 65Mn/9Cr2Mo | 2-2.5 |
