1-30t/h Fe2O3 Fe3O4 Iron Dust Briquette Making Machine with 800KG Weight and Double Roll
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,400.00/sets 1-1 sets |
|
Detail Information |
|||
| Type: | Briquette Machines | Applicable Industries: | Manufacturing Plant, Home Use, Energy & Mining |
|---|---|---|---|
| Weight (KG): | 800 | Showroom Location: | Canada, United States, Pakistan, Mexico, Russia, Thailand |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor | Condition: | New |
| Production Capacity: | 1-30t/h Briquette Machine | Motor Type: | AC Motor |
| Dimension(L*W*H): | Based On Model | Warranty: | 1 Year |
| Product Name: | Powder Gypsum Dust Graphite Charcoal Powder Briquette Making Machine | Ball Shape: | Oval, Pillow And Oblate |
| Roller Diameter: | 290-1000mm | Roller Material: | 65Mn/9Cr2Mo |
| Applicable Material: | Coal, Charcoal, Carbon Black, Coke, Iron, Fluorite Powder Etc | Material Size: | Less Than 5mm |
| Material Moisture: | Less Than 18% | Spare Parts: | Supply Whole Life Of Briquette Press Machine |
| Service Life: | Supply Whole Life | Factory Visit: | Any Time |
Product Description

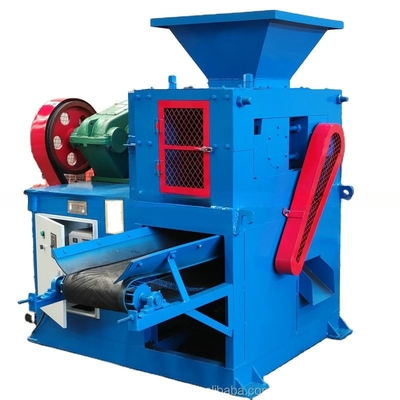

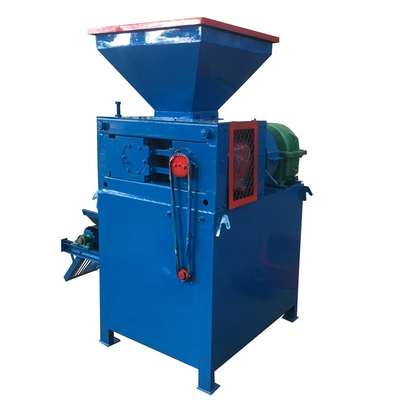

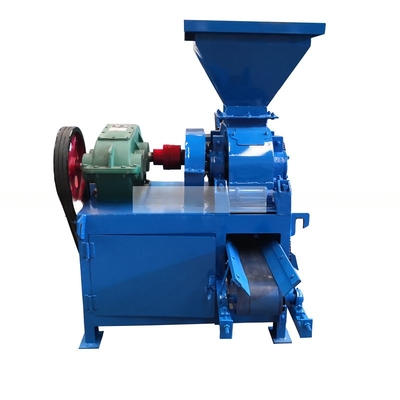

Small model double roll hardness briquettes Fe2O3 Fe3O4 iron dust briquette making machine
The charcoal coal ball press briquetting machine specialize in pressing various powder material like coal, coke and semi-coke, charcoal and other powder material to briquettes. Due to souble rollers forced squeezing, the discharged briquettes have features of high density,high strength and high hardness. Roller material adopts 65Mn and wear-resistant alloy material (patent technology). This alloy roller is processed through special hard-[acked casting technique, exclusively. Only by this material can solve the key problem of roller not wearable all the time and make it's lifetime extend 3-4 times. Our technical workers have mastered lots of practical experience research, study and numberous testing. they are very happy to instruct you right models to meet production line according to different materials.
XM290 briquette machine working principle
By belts,to gear reducer,gear reducer through coupling,to drive shaft by a pair of open gear again,ensure that two roller synchronous(constant speed reverse)material storage bin by quatitative machine into the hopper evenly,units of the molding pressure maximum,material after the line,the molding pressure decrease quickly to take off the material into the ball state,to take off the ball.
XM290 coal briquette machine whole plant
briquette machine briquettes making process can be devided into the following steps: Feeding-- crushing---- mixing------ ball pressing------ drying------final product.
| model | roller diameter | roller width | reducer | motor power | capacity | roller material |
| XM290 | 290mm | 200mm | ZQ300 | 5.5kw | 0.8-1t/h | 65Mn |
1)100% product quality assurance
2) factory quotation and CE certificate
3) OEM ODM
4) design the drawings
5) Certificate of Origin
6) suitable binder formula information
Packing Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.
Loading container in factory.
Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How do I choose a suitable briquette machine for my project?
A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the shape of final briquettes you required, also tell the output per hour you required
Q: What is the binder in process?
A: It is depend on the properties of your raw materials and also usage of briquettes. We have some formula of binders for some of raw materials, we would like to share them to our customers.
Q: How long of your machine quality guarantee terms ?
A: Quality guarantee time is one year(wearing parts excluded).
Q: After ordered a briquette machine, how do we slove the equipment installing?
A: For a small single machine, we offer you user manual, the user will install and commissioning following operating introduction. A complete production line, we will send our engineer to workplace to help with install and commissioning untill machines work normally.
