Double Screen Mobile Gold Trommel Screen Machine Wash Plant for Multiple Material Output
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $17,900.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Canada, United States |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 100-200T/H | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 8000*2200*4000 | Weight: | 6800 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided, Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Long Service Life, Obvious Gold-selected Effect | Machinery Test: | Provided |
| Sieve: | Manganese Wire | Double Screen: | Multiple Material Output |
Product Description
Product Description

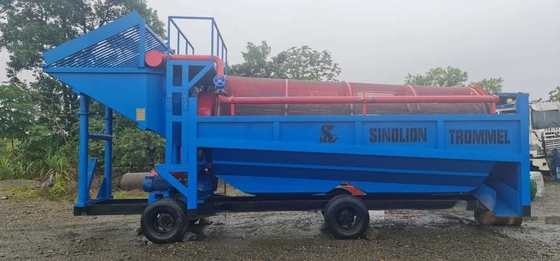

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold and alluvial gold. Its
advantages are flexible movement, simple operation, high efficiency, and obvious gold selection effect.
advantages are flexible movement, simple operation, high efficiency, and obvious gold selection effect.

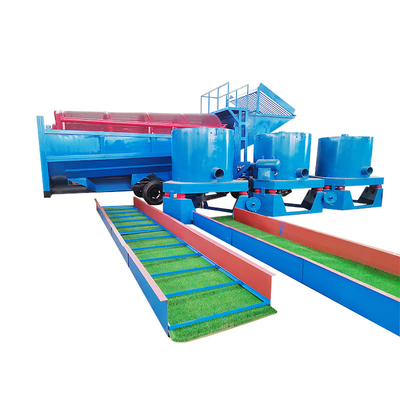

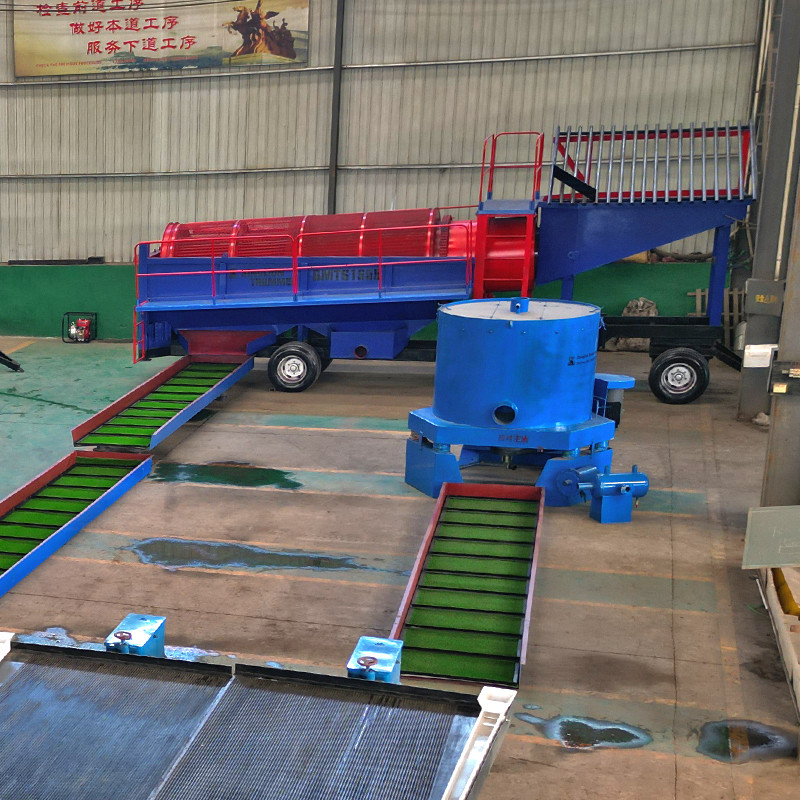

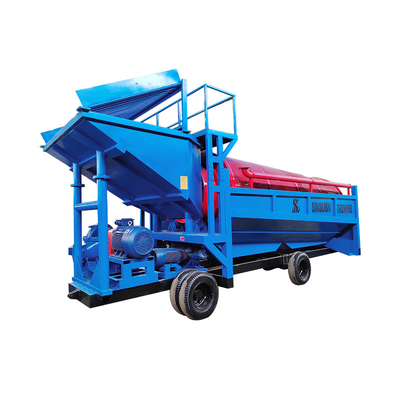

Mobile 100 tons per hour gold washing plant is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.
Introduction
Due to the large processing capacity of this equipment, it is additionally equipped with a manual operation table to facilitate the observation of material processing.
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
Operation：
1. Raw material feeding
The raw material input through the hopper inlet is pushed into the screen drum by the powerful
water pressure of the nozzle loaded in the hopper.
2. Washing

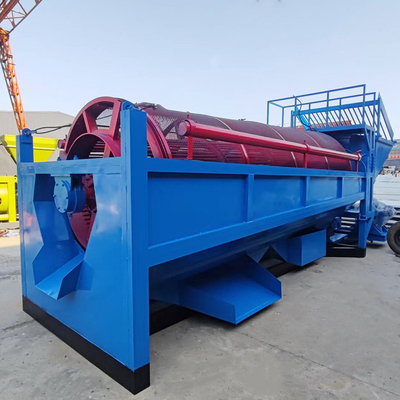

The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen.
3. Fine gold collection
Light dirt and sand are washed away by the water, and heavier gold will gather in the gold panning grass.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Packing & Delivery

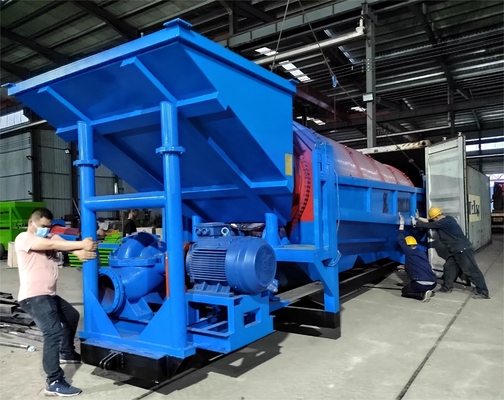

All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight. Motor is packed with steel case or wooden case. Control panel is packed with wooden case. Loading container in factory.
