90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output

90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $7,750.00/sets 1-2 sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case.
Supply Ability: 50 Set/Sets per Month gold trommel screening plant
Get Best Price Contact Now

Detail Information
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other Showroom Location: Canada, United States, Australia
Condition: New Type: Gravity Separator
Production Capacity: 90% Voltage: 220V/380V/415V/480V
Dimension(L*W*H): 3200*1400*1900mm Weight: 1900 KG
Warranty: 1 Year Marketing Type: Ordinary Product, Hot Product 2023
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Motor, Engine, Gearbox
Key Selling Points: High-accuracy Installation: Supply Manual To Guide User
Advantege: Obvious Gold-selected Effect Double Screen: Multiple Material Output
Customizable: Logo / Packing / Graphic Color: Yellow, White, Red, Blue, Gray
Port: Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

Product Description

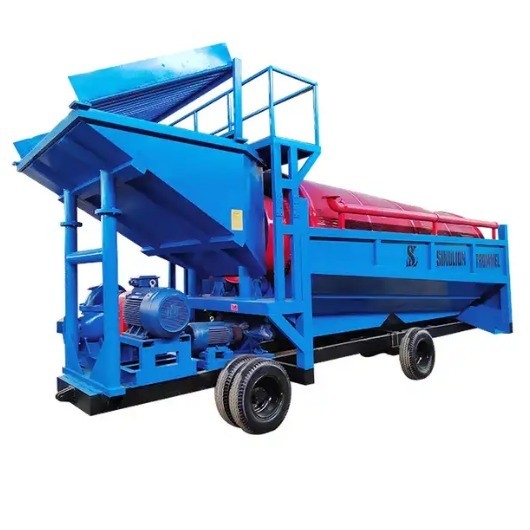

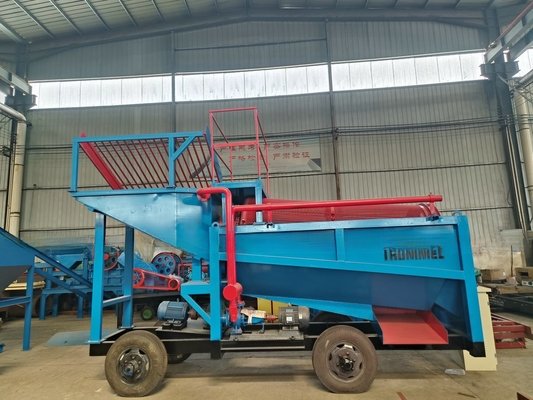

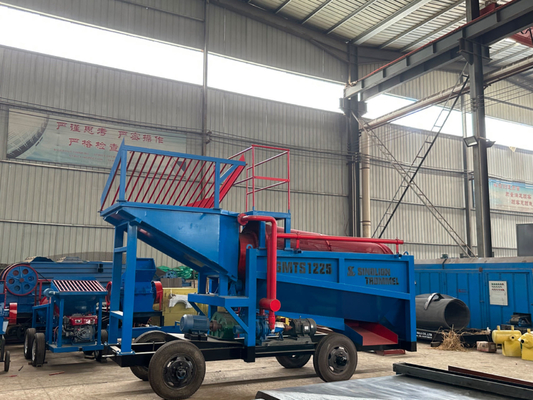

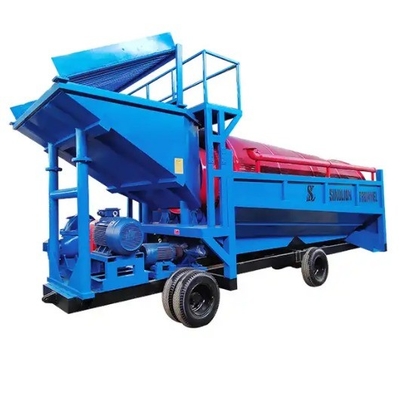

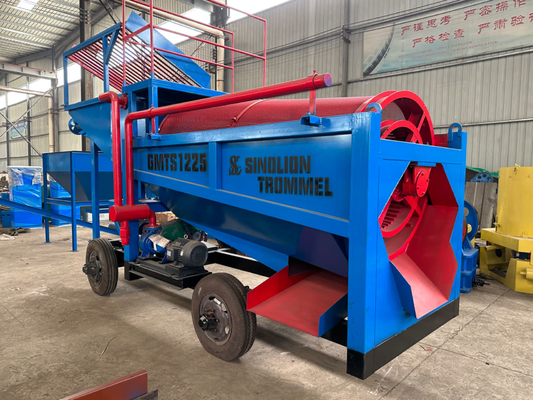

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold、alluvial gold and rock gold .
Gold mobile trommel screen is composed of feed hopper, drum, motor, water pump, reducer, wheel roller, transmission device (optional parts: gasoline engine and belt conveyor).
It is mainly used in the processing and collection of alluvial gold and placer gold. Its advantages include flexible movement, small size and high screening efficiency.
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 0
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 1
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 2
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 3
Sluice box
Gold sluice box is lined with a professional sticky gold blanket made of polyethylene non-woven bottom, which has strong catching ability, high recovery rate, and is also effective for fine-grained gold. And it has the advantages of favorable price, simple structure and easy operation.
Double Screen
The drum part is made of round steel and
manganese wire, and the outer screen is made of manganese wire.which is strong and durable. the screen can be designed with two
different sizes of apertures,the maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm . The design of the double-layer screen improves the screening efficiency on the one hand. and can screen materials of three specifications ,On the other hand. it protects and improves the service life of the screen.
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 4
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 5

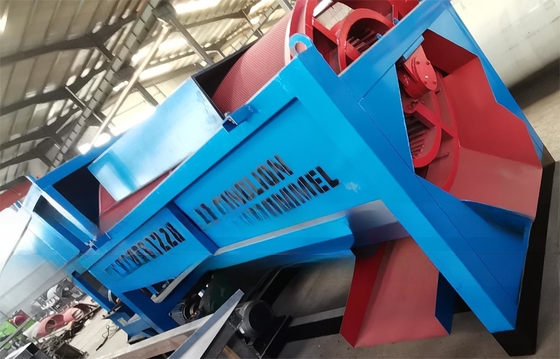

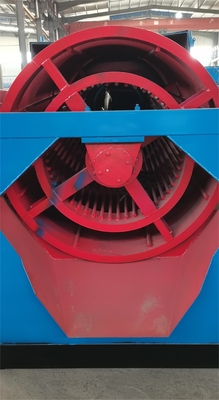

Trommel screen
The drum part is made of round steel and manganese wire, and also has three outlets.it improves the screening efficiency of materials, the maximum product under the sieve is 100mm. the middle is 10-50 mm, the thinnest can reach 3 mm.

90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 6
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 7
Technical Parameters
Model
Capacity (t/h)
Power (kw)
Diameter (mm)
Length(mm)
Discharge(mm)
Input(mm)
Dimension (mm)
GMTS0519
5—10
1.5
500
1910
≤300
0—100
3000*1000*1800
GMTS1020
10—30
4
1000
2000
≤300
0—100
3200*1400*1900
GMTS1225
30—50
5.5
1200
2500
≤300
0—100
4300*1650*2220
GMTS1548
80—150
11
1500
4800
≤300
0—100
8000*2200*3600
GMTS1848
100—200
15
1800
4800
≤300
0—100
8000*2200*4000
More models
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 8
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 9
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 10
Packing & Delivery
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 11
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 12
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 13
90% Efficiency Double Screen Gold Mining Wash Plant for Multiple Material Output 14
Wooden box packing or Container shipping.
