Mobile Rock Gold Washing Line Equipment with Gravity Separation and Easy Installation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $5,310.00/sets 1-2 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States, Germany |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 90% | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 3200*1400*1900 | Weight: | 1200 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | High Rigidity, High Separation Efficiency | Customizable: | Logo / Packing / Graphic |
| Installation: | Supply Manual To Guide User | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Feeding Size: | Less Than 300mm | Dimension: | As Per Different Model |
Product Description
Product Description

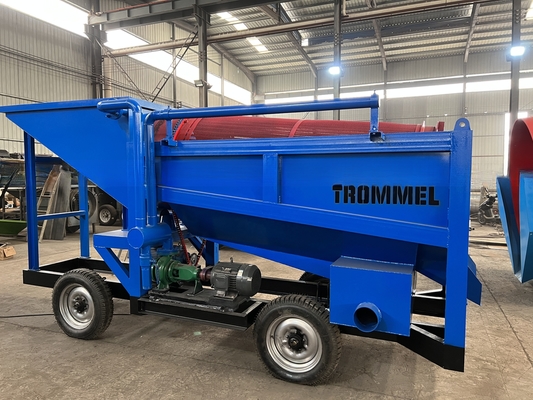

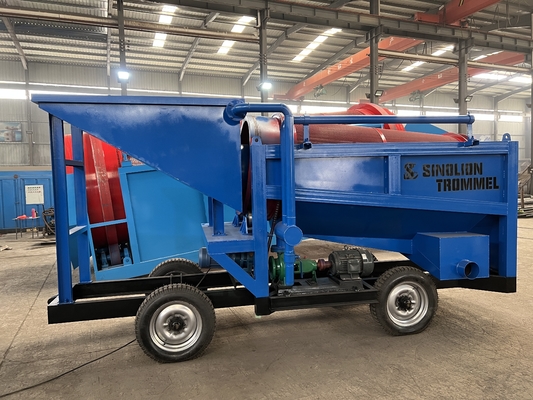

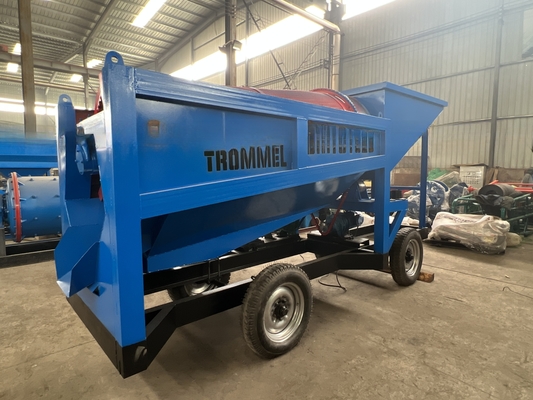

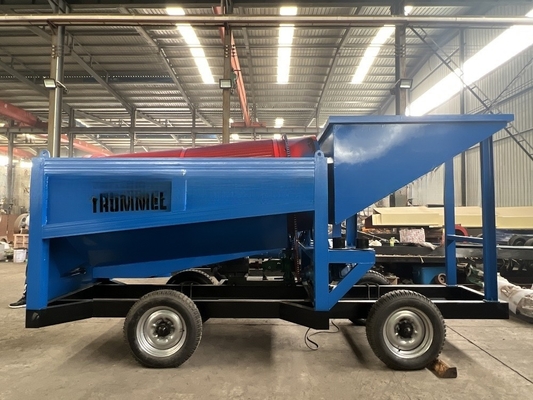

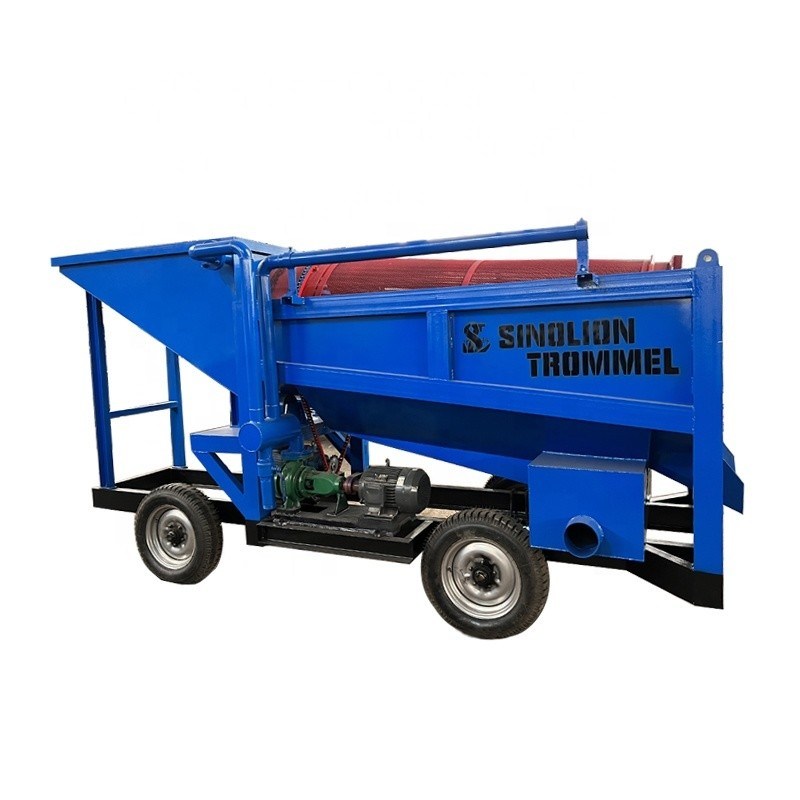

Our production is called a mobile gold trommel screen , also known as mobile gold car. The sieve-type gold mobile washing equipment is mainly used for sand splitting and gold selection. The mobile trommel gold washing plant is
designed for alluvial / placer gold ore processing, it's consist a half covered trommel screen, one diesel engine/ electric motor, water pump & water pipes, and other facilities such as the feeding hoper and the mobile system.
designed for alluvial / placer gold ore processing, it's consist a half covered trommel screen, one diesel engine/ electric motor, water pump & water pipes, and other facilities such as the feeding hoper and the mobile system.
Our trommel screen has a lot of advantages ,such as: move conveniently ,well-adapted，Integrated design, operate simply, labor-saving,strongly-processing capacity, work efficiently, obvious gold-selected effect and so on.
Working Principle
Raw materials input through the inletof the hopper will be pushed into thesieve by the strong water pressure ofthe spray head installed in the hopper ,through the rotation of the drum sievethe raw material is washed by waterand selected through the gold pan.the light soil and sand are washedaway by the water, and the heaviergold will gather in the gold pan.
Double screen

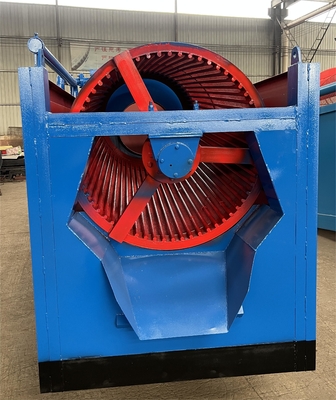

The drum part is made of round steel and manganese wire mesh. The outermost layer of the screen drum is manganese wire mesh, and the inner layer is round steel with a diameter of 20mm and an interval of 50mm. The design of the double-layer screen on the one hand protects the material from damage caused by impact on the screen, thus extending the service life of the screen, and on the other hand improves the screening efficiency.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
More models
Case
Packing & Delivery
Wooden box packing or Container shipping.
