Manganese Wire Sieve Gold Mobile Trommel Screen Machine for Alluvial Gold Washing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $17,900.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 100-200T/H | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 8000*2200*4000 | Weight: | 6800 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Long Service Life, Obvious Gold-selected Effect | Sieve: | Manganese Wire |
| Double Screen: | Multiple Material Output | Installation: | Supply Manual To Guide User |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Product Description

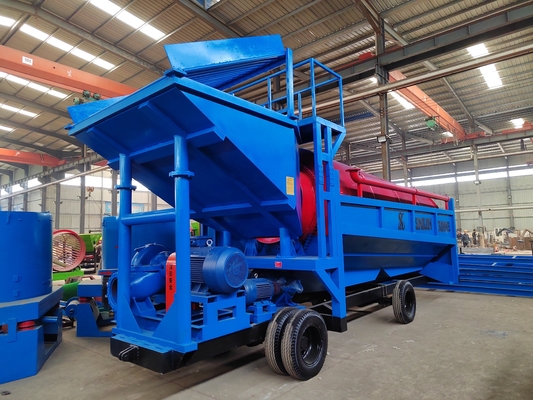

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold and alluvial gold. Its advantages are flexible movement, simple operation, high efficiency, and obvious gold selection effect.

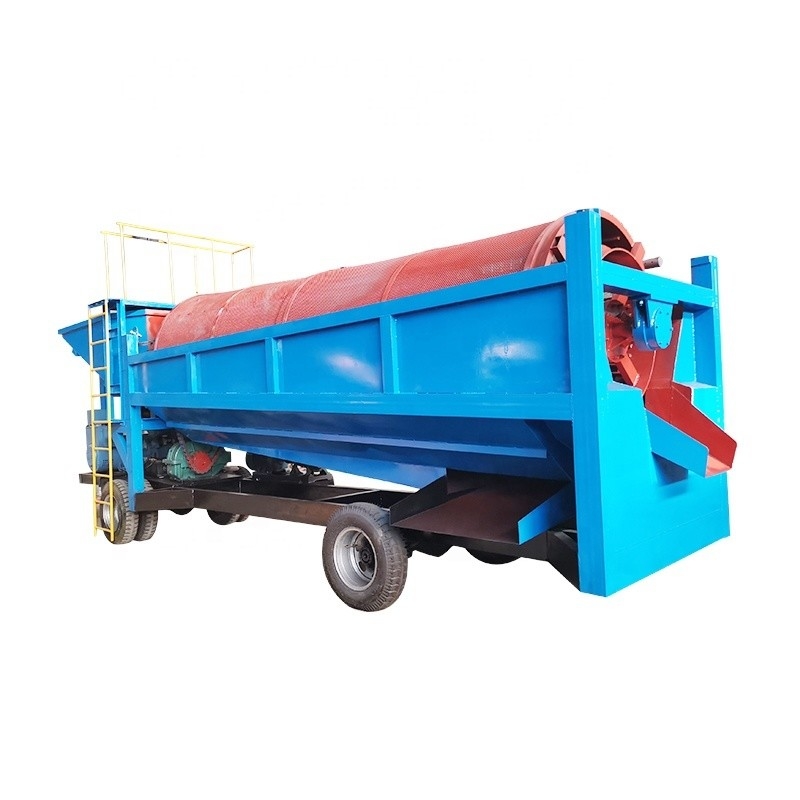

Mobile 100 tons per hour gold washing plant is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.
Screen Drum
The drum part is made of round steel and manganese wire, and has three discharge ports, which can screen materials of three different specifications;
In addition, the screen can be designed with two different sizes of apertures, which greatly improves the screening efficiency of materials and reduces working time. The maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm.
In addition, the screen can be designed with two different sizes of apertures, which greatly improves the screening efficiency of materials and reduces working time. The maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm.
Working Principle
1. Raw material feeding
The raw material input through the hopper inlet is pushed into the screen drum by the powerful
water pressure of the nozzle loaded in the hopper.
2. Washing
The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen.
3. Fine gold collection

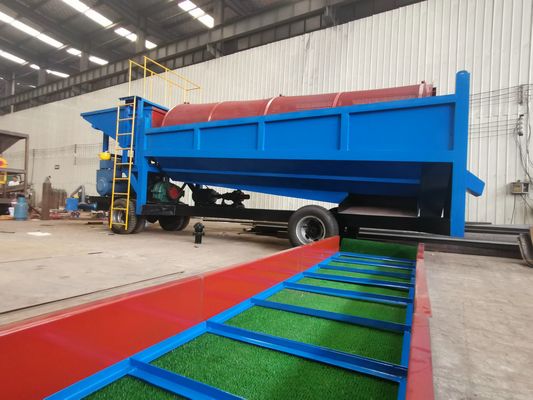

Light dirt and sand are washed away by the water, and heavier gold will gather in the gold panning grass.
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Case

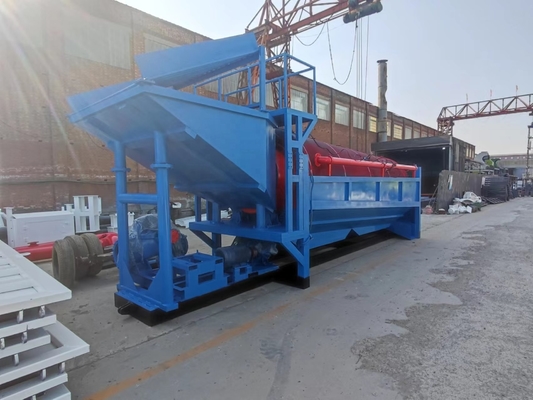

Product show

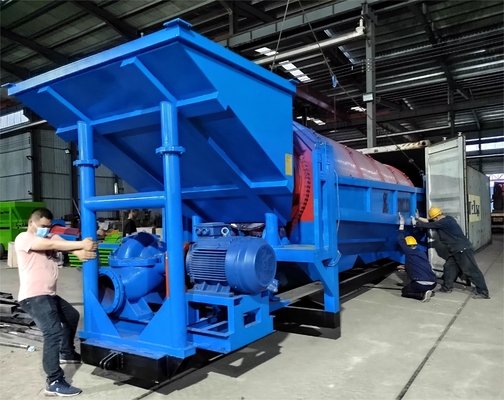

Packing & Delivery
Wooden box packing or Container shipping.
