8000*2200*4000 Big Scale Trommel Screen Gold Ore Mining Equipment Miner Separator Rock Gold Washing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $17,900.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 100-200 TONS/HOUR | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 8000*2200*4000 | Weight: | 6800 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | PORTABLE, Obvious Gold-selected Effect | Customizable: | Logo / Packing / Graphic /sieve |
| Sieve: | Manganese Wire | Double Screen: | Multiple Material Output |
| Feeding Size: | Less Than 300mm | ||
Product Description
Product Description
Our production is called a mobile gold trommel screen , also known as mobile gold car. The sieve-type gold mobile washing equipment is mainly used for sand splitting and gold selection. It is suitable for energy and mining, building materials store, manufacturing plant, construction engineering, energy and mining. Our trommel screen has a lot of advantages ,such as: move conveniently ,well-adapted，Integrated design, operate simply, labor-saving,strongly-processing capacity, work efficiently, obvious gold-selected effect and so on.
Operation
1、 Raw material feeding The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2、Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3、Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.

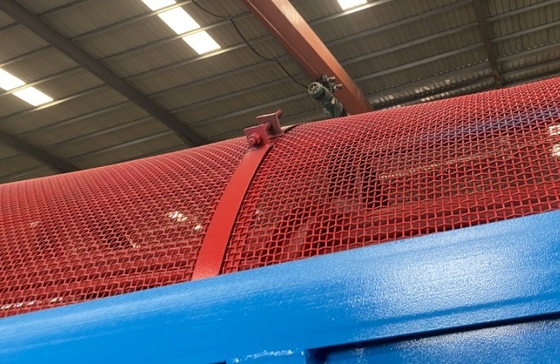

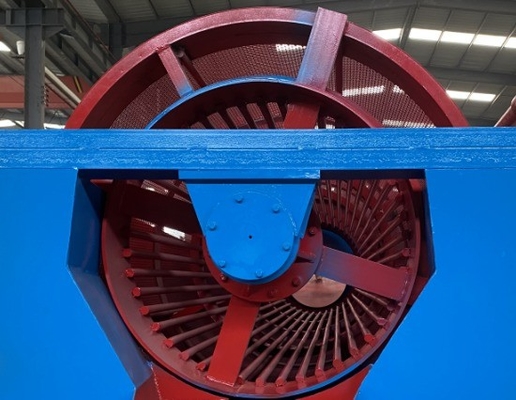

Screen Drum
The drum part is made of round steel and
manganese wire, and the outer screen is made of manganese wire.which is strong and durable. the screen can be designed with two
different sizes of apertures,the maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm . The design of the double-layer screen improves the screening efficiency on the one hand. and can screen materials of three specifications ,on the other hand. it protects and improves the service life of the screen.
manganese wire, and the outer screen is made of manganese wire.which is strong and durable. the screen can be designed with two
different sizes of apertures,the maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm . The design of the double-layer screen improves the screening efficiency on the one hand. and can screen materials of three specifications ,on the other hand. it protects and improves the service life of the screen.

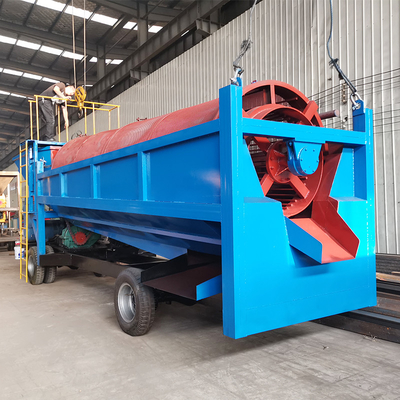

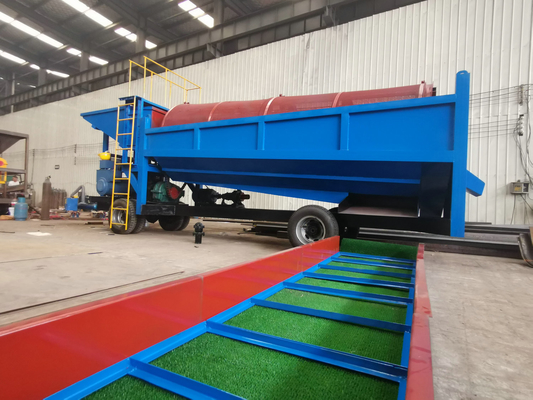

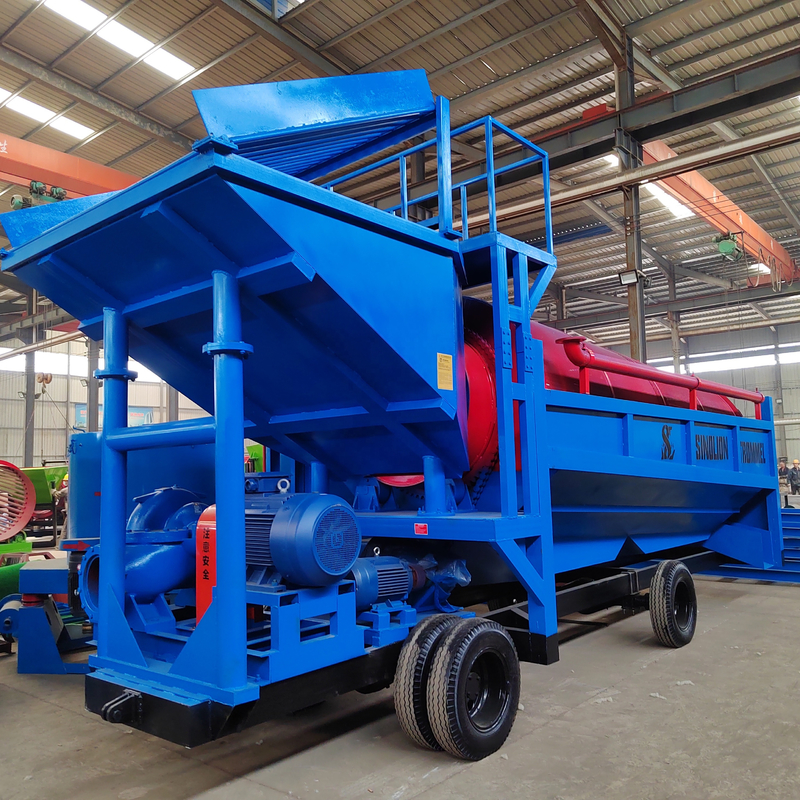

Product show
Due to the large processing capacity of this equipment, it is additionally equipped with a manual operation table to facilitate the observation of material processing.
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |
Case

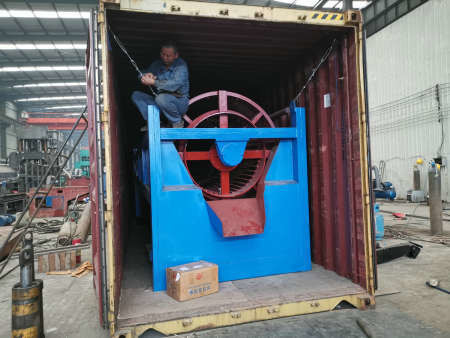

Packing & Delivery
Ways Of Packing 1. Small parts packed in the wooden cases 2.Big parts or the whole big machine is loaded in the container by the Ocean Shipping or others .
