The drum part is made of round steel and manganese wire, and has three discharge ports, which can screen materials of three
different specifications;
In addition, the screen can be designed with two different sizes of apertures, which greatly improves the screening efficiency of
materials and reduces working time. The maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm.
 |

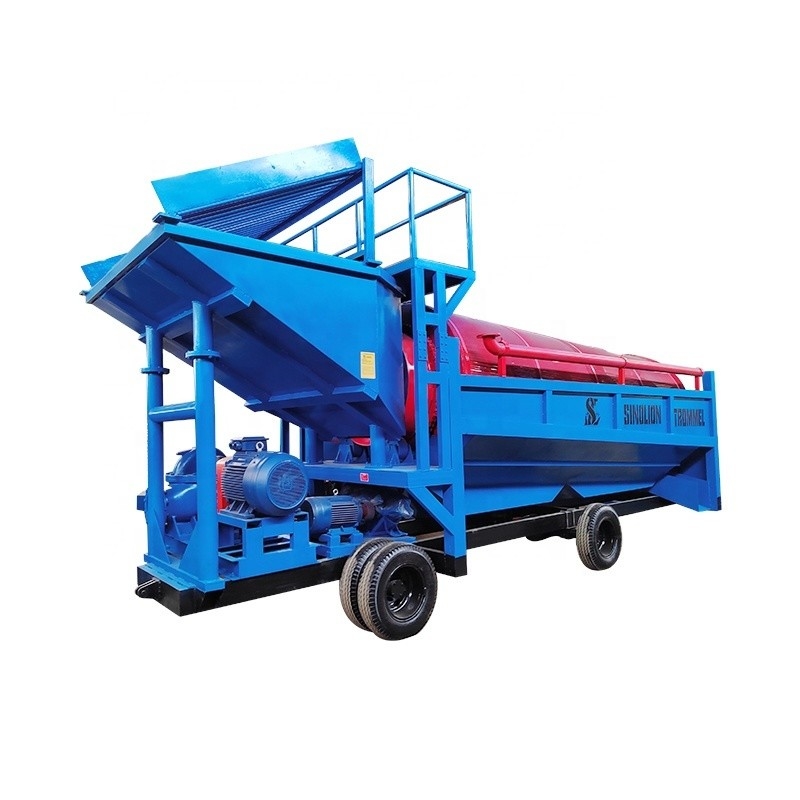

100 Tons Gold Separator Mobile Gold Trommel Screen Machine for Mining Washing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $17,900.00/sets 1-1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Month gold trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 100-200T/H | Voltage: | 220V/380V/415V/480V |
| Dimension(L*W*H): | 8000*2200*4000 | Weight: | 6800 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023, Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Engine, Gearbox |
| Key Selling Points: | Competitive Price, Obvious Gold-selected Effect | Advantege: | Obvious Gold-selected Effect |
| Sieve: | Manganese Wire | Double Screen: | Multiple Material Output |
| Customizable: | Logo / Packing / Graphic | Dimension: | As Per Different Model |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Product Description
Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold and alluvial gold. Its
advantages are flexible movement, simple operation, high efficiency, and obvious gold selection effect.
advantages are flexible movement, simple operation, high efficiency, and obvious gold selection effect.

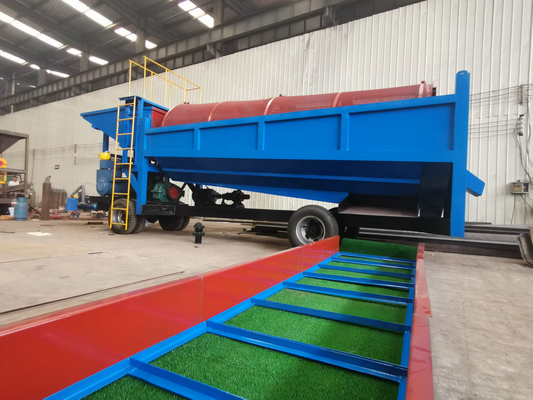

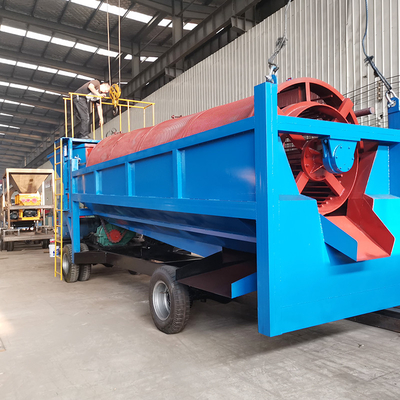

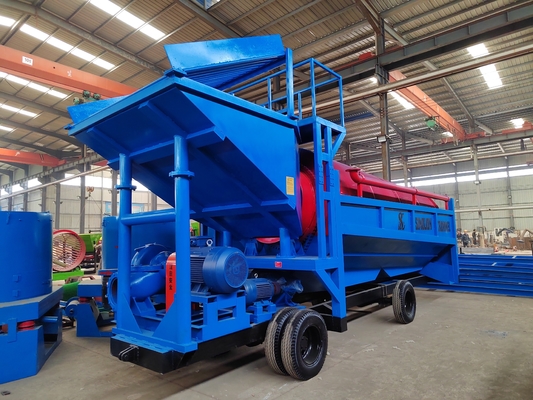

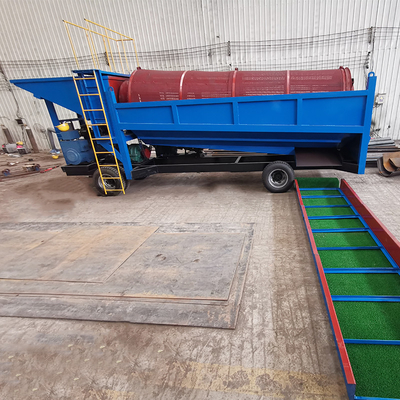

Mobile 100 tons per hour gold washing plant is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.
Due to the large processing capacity of this equipment, it is additionally equipped with a manual operation table to facilitate the observation of material processing.
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
Working Principle
1. Raw material feeding
The raw material input through the hopper inlet is pushed into the screen drum by the powerful
water pressure of the nozzle loaded in the hopper.
2. Washing
The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen.
3. Fine gold collection
Light dirt and sand are washed away by the water, and heavier gold will gather in the gold panning grass.
Double Screen
Technical Parameters
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length(mm) | Discharge(mm) | Input(mm) | Dimension (mm) |
GMTS0519 | 5—10 | 1.5 | 500 | 1910 | ≤300 | 0—100 | 3000*1000*1800 |
GMTS1020 | 10—30 | 4 | 1000 | 2000 | ≤300 | 0—100 | 3200*1400*1900 |
GMTS1225 | 30—50 | 5.5 | 1200 | 2500 | ≤300 | 0—100 | 4300*1650*2220 |
GMTS1548 | 80—150 | 11 | 1500 | 4800 | ≤300 | 0—100 | 8000*2200*3600 |
GMTS1848 | 100—200 | 15 | 1800 | 4800 | ≤300 | 0—100 | 8000*2200*4000 |

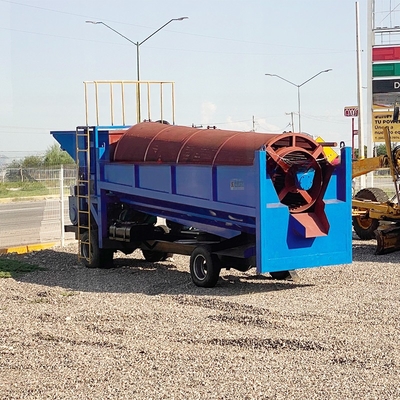

Product show
Case
Packing & Delivery
Ways Of Packing 1. Small parts packed in the wooden cases 2.Big parts or the whole big machine is loaded in the container by the Ocean Shipping or others.
